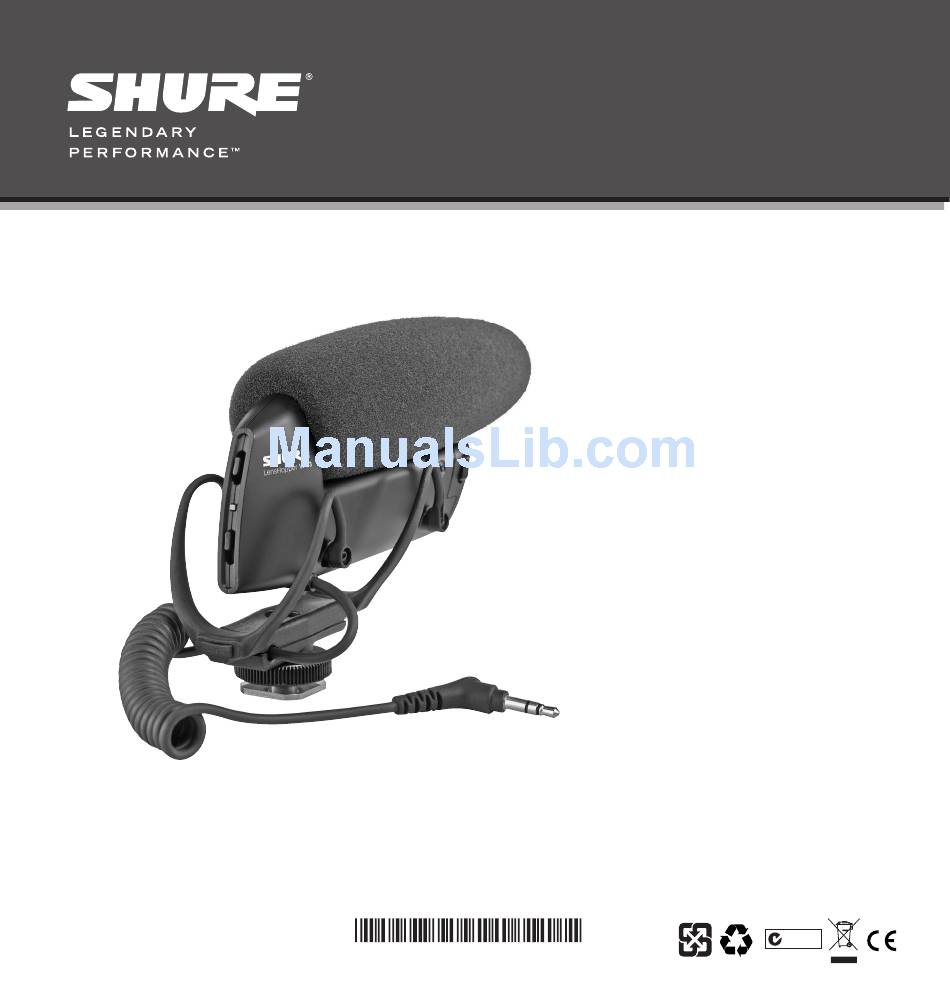

- Page 1 Wired Microphones VP83 User Guide Le Guide de l’Utilisateur Bedienungsanleitung Manuale d’uso Guia del Usuario Guida dell’Utente Gebruikershandleiding Руководство пользователя Pengguna Panduan 取扱説明書 사용자 안내서 用户指南 © 2013 Shure Incorporated Printed in China N108 27A20676 (Rev. 2)
-
Page 3: General Description

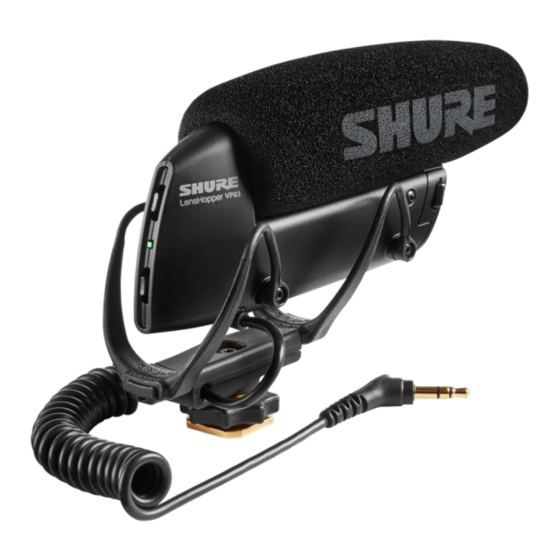

General Description ⑤ ② ⑥ Designed for use with DSLR and video cameras, the Shure VP83 condenser microphone enables videographers to capture professional quality audio. Adjustable gain, superior off-axis rejection, and a selectable ⑦ low-cut filter provide exceptional definition and clarity. Consistent with ③... -
Page 4: Audio Configuration
Using the least amount of gain from the camera or recording device and more gain from the VP83 will result in a better signal-to-noise ratio. Note: If automatic gain control on the camera (when applicable) introduces Low-cut Filter unwanted audio artifacts, consider bypassing the feature. -
Page 5: Specifications
Specifications Cartridge Type Electret Condenser Polar Pattern 0.6 m (2 ft.) from sound source Supercardioid/Lobar Frequency Response 50 to 20,000 Hz Output Impedance 171 Ω Sensitivity open circuit voltage, @ 1 kHz, typical -36.5 dBV/Pa (14.9 mV) Maximum SPL 1 kHz at 1% THD , 1000 Ω... -
Page 6: Troubleshooting
• Check that the audio cable is completely inserted into the camera. • Camera input gain may be set too high, resulting in clipping. Try The CE Declaration of Conformity can be obtained from: www.shure. lowering the gain. If the camera's gain appears to be adjusted properly, try setting the gain switch set to 0 or -10 dB. - Page 7 Europe, Middle East, Africa: Shure Europe GmbH Jakob-Dieffenbacher-Str. 12, 75031 Eppingen, Germany Phone: 49-7262-92490 Fax: 49-7262-9249114 Email: info@shure.de PT. GOSHEN SWARA INDONESIA Kompleks Harco Mangga Dua Blok L No. 35 Jakarta Pusat I.16.GSI31.00501.0211...
