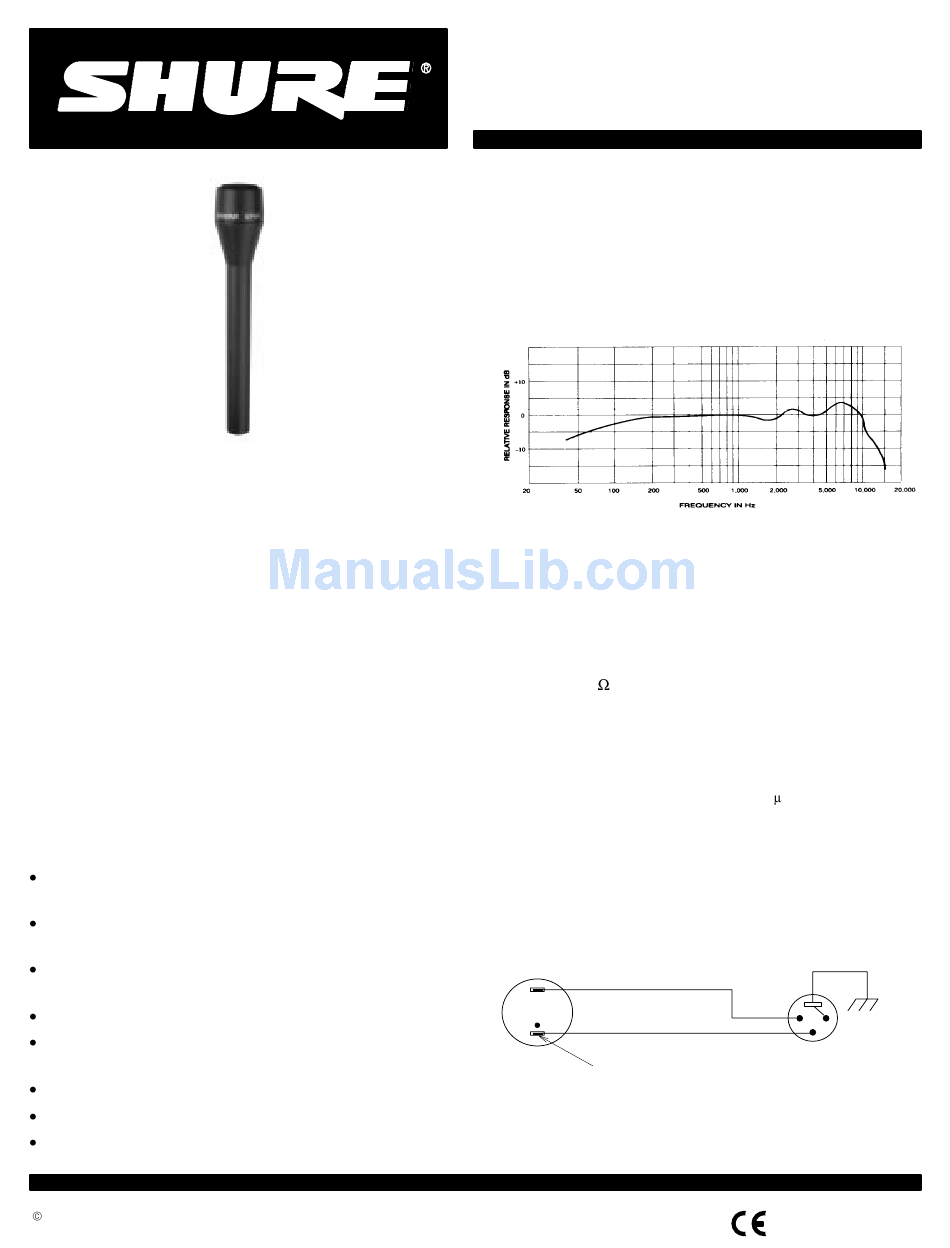

Shure VP64 User Manual

GENERAL
The Shure Model VP64 is a high output omnidirectional
handheld dynamic microphone designed for professional
audio and video production. It combines exceptional perfor-
mance and comfortable feel with a handsome on-camera
appearance.
The VP64 is ideal for closeup use and can be used out-
side as well as indoors. Its omnidirectional pickup pattern
provides uniform pickup on or off axis, eliminating the need
for critical microphone positioning. The VP64 also features
a tailored frequency response with an upper midrange pres-
ence rise that adds crispness and clarity to speech. A low
frequency rolloff minimizes "boominess" and background
noise. The circuitry includes a neodymium magnet for higher
output and increased signal-to-noise ratio.
The cartridge is shock mounted for ruggedness and to
minimize handling noise pickup. Wind noise and "pop" are
reduced by the the supplied windscreen.
Features
High-efficiency circuitry uses neodymium magnet for
increased output and maximized signal-to-noise ratio
Frequency response tailored for optimum speech clarity
and crispness
Omnidirectional polar pattern eliminates need for critical
microphone positioning
Shock mounted cartridge for low handling noise
Supplied windscreen permits outdoor or indoor use with
minimum pop and wind pickup
Comfortable feel
Handsome appearance; ideal for on-camera applications
Legendary Shure ruggedness
1997, Shure Brothers Incorporated
27A2533 (SF)
Shure Brothers Incorporated
222 Hartrey Avenue
Evanston IL 60202-3696 U.S.A.
Model VP64 User Guide
SPECIFICATIONS
Type
Dynamic
Frequency Response
50 to 12,000 Hz (see Figure 1)
TYPICAL FREQUENCY RESPONSE
FIGURE 1
Polar Pattern
Omnidirectional, symmetrical about axis
Impedance
Low (330 actual)
Output Level (at 1,000 Hz)
Open Circuit Voltage
Power Level . . . . . . . . . . . . . . . . . . . . . . . . . . .
Phasing
Positive pressure on diaphragm produces positive volt-
age on pin 2 with respect to pin 3 (see Figure 2)
CARTRIDGE
WHITE
GREEN
CODED TERMINAL
INTERNAL CONNECTIONS
. . . . . . . . . . . –71.0 dB (0.28 mV)
0 dB = 1 mW/10 bar
3-PIN PROFESSIONAL
AUDIO CONNECTOR
2 1
3
FIGURE 2
Printed in U.S.A.
–52.0 dB
