W M
ALL- OUNTING
The Infi nity C255ES speaker is designed to sit on the included
shelf stand or to be mounted directly to a wall. Each speaker has
(4) keyholes in the rear to allow either left- or right-side place-
ment. Each speaker will require (2) 1-1/2" (38mm) #10 wood
screws with a 33" (8.4mm) screwhead fastened to a wall stud.
If a wall stud is unavailable, install an anchor appropriate for a
1-1/2" (38mm) #10 screw. Use the supplied template to accu-
rately position the screws on the wall and refer to the diagrams
for more assistance.
NOTE: The customer is responsible for the correct selection and
use of mounting hardware (available through hardware stores) that
will ensure the proper and safe wall-mounting of the speakers.
Step 1.
Position the supplied wall-mount template on the wall in the
desired speaker location. Make two markings per speaker.

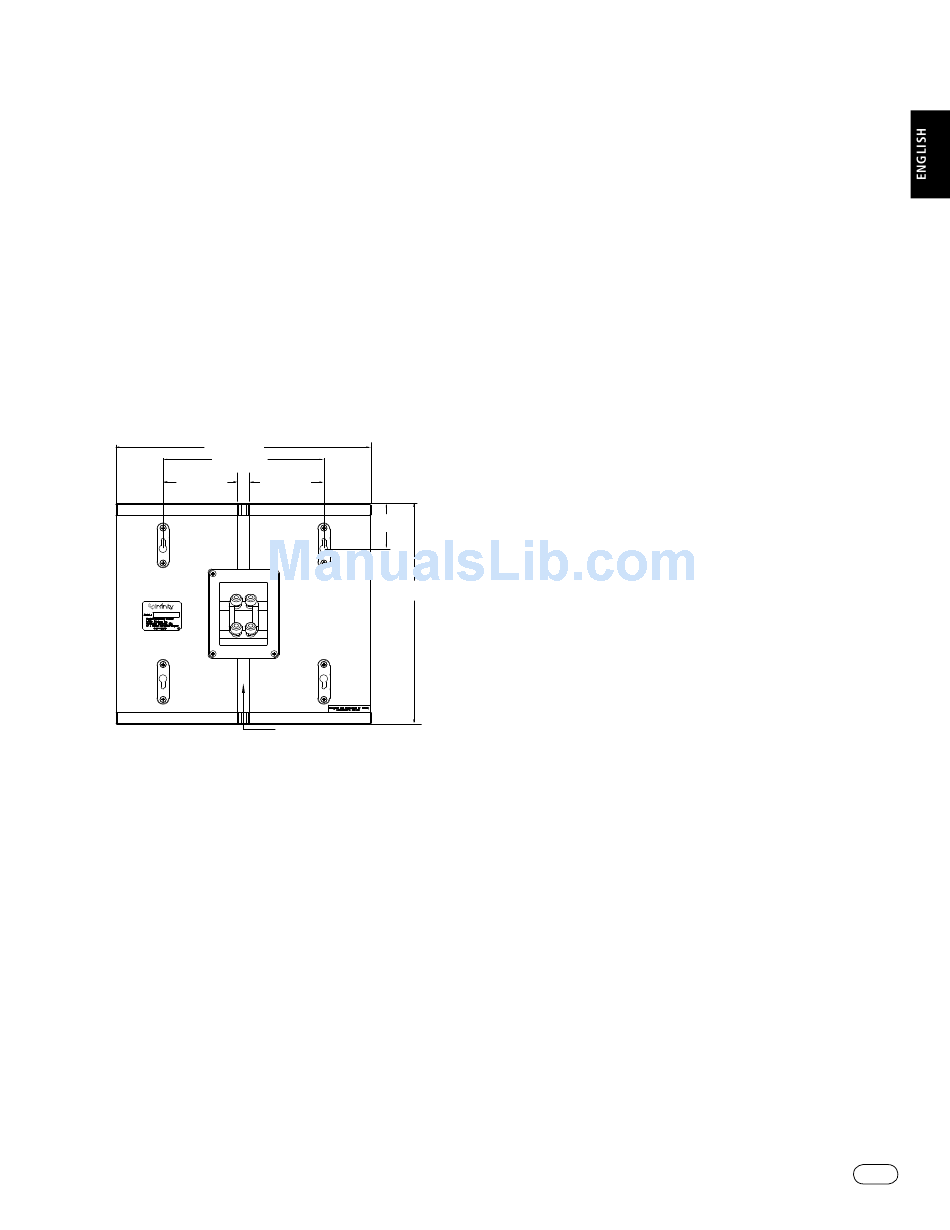

13-1/4" (337mm)
8-3/8" (213mm)
3-1/8" (79mm) 3-1/8" (79mm)
2-7/16"
(50mm)
11-3/4"
(298mm)
Wire Channel
Figure 11.
Step 2.
Fasten (2) 1-1/2" (38mm), #10 wood screws to the wall using
the markings placed in Step 1 as your guide. Leave a 3/16"
(5mm) space between the wall and screwhead. If a wall stud is
not available, use an appropriate anchor.
Step 3.
Attach speaker wire, as shown on page 4.
Step 4.
Place the speaker on the wall by aligning the upper two keyholes
on the back of the speaker to the screwheads on the wall. Once
positioned properly, the speaker should slide down slightly and
become secure.
IMPORTANT NOTE: The set of drivers closer to the monopole
setting indicator in Figure 3 should be installed toward the
front of the room. It does not matter whether or not the tweeter
is positioned above or below the woofer.This will ensure proper
operation and performance should the "Monopole" or "Dipole"
position on the surround mode confi guration switch be selected.
