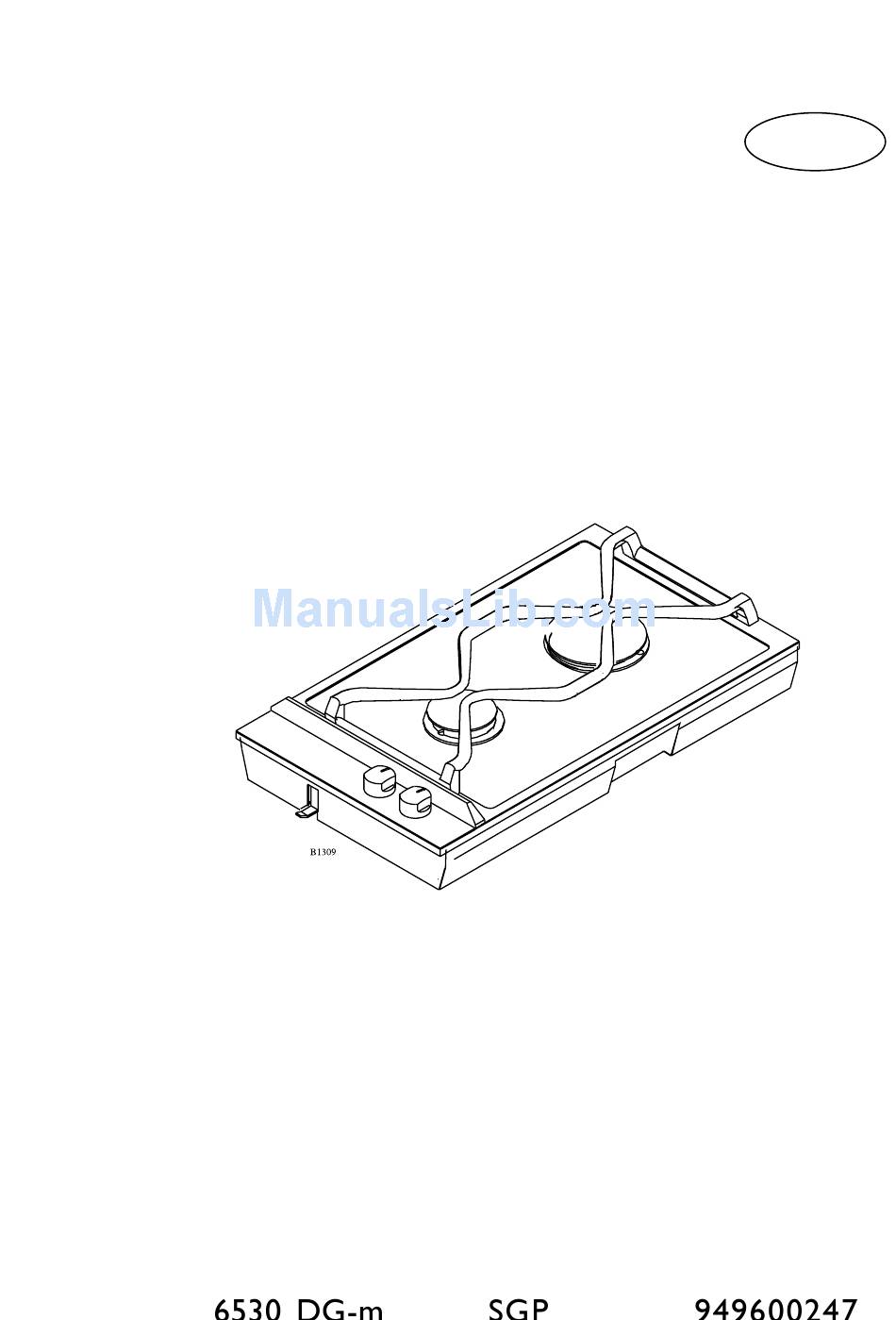

  • Page 1 INSTRUCTION- AND INSTALLATION BOOK...
  • Page 2 Congratulations from AEG Dear Customer, Congratulations with your new Hob. It is important that you become familiar with the functions and features of the Hob. You should therefore read these operating instructions as they will help you get the most out of your new Hob. Pay extra attention to sections marked .
  • Page 3 How to read the operating instructions: 1... 2...Step by step Hint and tips Safety information Environmental information...
  • Page 4: Child Safety

    These warnings are provided in the Never use plastic or aluminium dishes interests of your safety. Ensure you on the gas hob. fully understand them before installing or using the appliance. Your safety is of Never leave the gas hob unattended paramount importance.
  • Page 5 The primary air intake aperture Must never be accidentally blocked by objects of any kind.
  • Page 7 Burner markings Symbols at each control knob indicates which burner is adjusted with the control knob. Front Burner Back burner Panel markings Each control knob has a ring showing the scale of markings. Off. Maximum flame Minimum flame...
  • Page 8 Together with the burner ring the burner ring/cover forms a space where the final mixture of gas and air takes place in order to make the gas burn correctly. Please note: It is consequently very important that the individual burner cover/ring is placed correctly on the burner.
  • Page 9 1. Depress and turn the control knob for the burner to the left to max. flame . (Ignition position) 2. The ignition electrode will emit sparks, and when the mixture of gas and air is correct, the burner will be ignited.
  • Page 10 For reasons of hygiene and safety, the cooking zones must be kept clean. Grease stains and spilled food generate smoke when heated, and can even cause fire. The splashguard can be removed to make it easier to clean the surface. What to do: 1.
  • Page 11: Stainless Steel Surfaces

    Stainless steel surfaces 3. Wipe the ceramic hob clean with a damp cloth or kitchen towel. Perform daily cleaning with a slightly Tough stains can be removed by damp cloth. For more severe soiling, rubbing the stain hard with use a liquid cream. Always clean the kitchen towel.
  • Page 12 The operating panel with knob, pan support and burner covers/rings are to be cleaned with ordinary cleaning agents. Do not use any kind of scouring powder. Avoid saucepans boiling over. If water gets into the burner, this should be removed before re-igniting the burner, e.g.
  • Page 13 Caution: In order to avoid a hazard this appliance must be installed according to these instructions for installation The hob unit can be mounted in any type of kitchen with a table surface whose thickness is between 28 mm and 40 mm.
  • Page 14 It is not necessary to attach the reinforcement beam to the table surface, as it is held in place by a specially designed moulding, which is incorporated in the hob units flanges. Installation in work tops with a base unit underneath Min.
  • Page 16 The unit´s externally measured length 145 mm: Cooker hood 290 mm: Two-zone ceramic-top electric hob Two-burner gas hob Grill Fryer 580 mm: Four-zone ceramic-top electric hob Four-burner gas hob 725 mm: Four-zone ceramic-top electric hob When mounting a single unit, be it a half-or full size unit, in a table surface which is thicker than 30 mm, it is necessary to make a special notch in...
  • Page 17: Gas Installation

    Gas installation In accordance with local requirements for domestic gas cooking appliances. Gas installation must only be carried out by an authorised person. For gas types see technical data. Gas connection The gas intake is situated at the lower rear of the appliance. The intake has a ½"...
  • Page 18 240 V 1N + PE HO5V2V2-F Blue and brown: 51 mm +/- 3 mm Yellow/Green: 61 mm +/- 3 mm...
  • Page 19 Question: Answer There is no spark when lighting the Check whether the 230 V connection gas? has been plugged in. The ground fault circuit relay way have switched off. The fuse has blown When the operating knob is released The operating knob has not been the gas ring goes out again? depressed long enough, or has not been depressed sufficiently.
