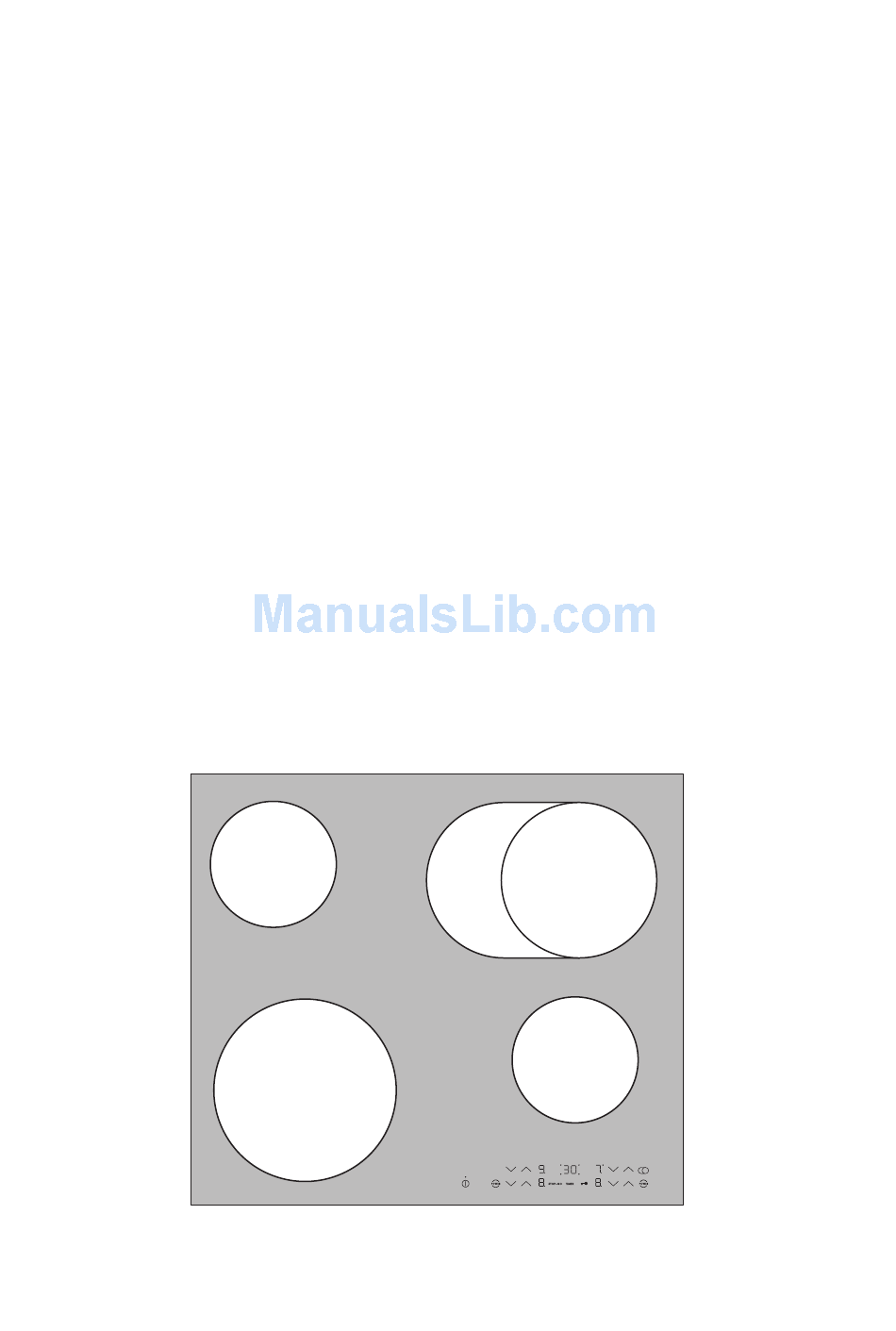

- Page 1 67670 K-MN Induktions-Glaskeramik-Kochfeld Ceramic glass induction hob Table de cuisson vetrocéramique à induction Montage- und Gebrauchsanweisung Installation and Operating Instructions Instructions de montage et mode d’emploi...
-
Page 2: Dear Customer
Dear Customer, Please read these user instructions carefully and keep them to refer to later. Please pass the user instructions on to any future owner of the appli- ance. The following symbols are used in the text: Safety instructions Warning! Information that affects your personal safety. Important! Information that prevents damage to the appliance. -
Page 3: Table Of Contents
Contents Operating Instructions ........36 Safety instructions. -
Page 4: Operating Instructions
Operating Instructions 1 Safety instructions Please comply with these instructions. If you do not, any damage re- sulting is not covered by the warranty. This appliance conforms with the following EU Directives: – 73/23/EEC dated 19.02.1973 Low Voltage Directive – 89/336/EEC dated 03.05.1989 EMC Directive inclusive of Amending Directive 92/31/EEC –... -
Page 5: Safety During Use
Safety during use • Remove stickers and film from the glass ceramic. • There is the risk of burns from the appliance if used carelessly. • Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware. •... -
Page 6: Description Of The Appliance
Description of the Appliance Cooking surface layout Single cooking zone 1200 W Multi-purpose zone 1500/2400 Control panel Induction cooking zone 2300 W Induction cooking zone 1400 W with power function 3700 W with power function 1800 W Control panel layout Heat setting selection Cooking zone indicators Timer function... -
Page 7: Touch Control Sensor Fields
Touch Control sensor fields The appliance is operated using Touch Control sensor fields. Functions are controlled by touching sensor fields and confirmed by displays and acoustic signals. Touch the sensor fields from above, without covering other sensor fields. Sensor field Function On / Off To switch the appliance on and... -
Page 8: Displays
Displays Display Description Cooking zone is switched off Keep warm setting Keep warm setting/STOP+GO function is set Heat settings Heat setting is set Heating setting plus Intermediate heat setting is set decimal point Automatic warm up Automatic warm-up function is function activated Fault... -
Page 9: Operating The Appliance
Operating the appliance Use the induction cooking zones with suitable cookware. Switching the appliance on and off Control panel Display Pilot light Switch on Touch for 2 seconds lights up Switch off Touch for 1 second / none goes out After switching on, within approx. -
Page 10: Switching The Stop+Go Function On And Off
Switching the STOP+GO function on and off The STOP+GO function simultaneously switches all cooking zones that are switched on to the keep warm setting and then back to the heat setting that was previously set. This function can be used to briefly in- terrupt and then continue the cooking process e.g. -
Page 11: Locking/Unlocking The Control Panel
The length of time that the automatic warm up function operates de- pends on the heat setting selected. Heat Length of the automatic Length of the automatic setting warm up warm up radiation element induction [min:sec] [min:sec] 0:30 0:10 1:00 0:10 1:40 0:10... -
Page 12: Using The Child Safety Device
Using the child safety device The child safety device prevents unintentional use of the appliance. Setting the child safety device Step Control panel Display/Signal Switch on the appliance (Do not set a heat setting) Touch until the signal sounds Acoustic signal Touch Appliance switches off. -
Page 13: Switching The Power Function On And Off
Switching the power function on and off The power function makes more power available to the induction cooking zones, e.g. to bring a large quantity of water to the boil quick- The power function is activated for 10 minutes. After that the induc- tion cooking zone automatically switches back to heat setting 9. -
Page 14: Using The Timer
Using the timer All cooking zones can use each use one of the two timer functions at the same time. Function Condition Outcome after the time has elapsed Automatic cut-out a heat setting is set acoustic signal flashes Cooking zone switches off Countdown timer cooking zones not in use... -
Page 15: Setting The Time
If the power indicator is flashing more slowly, the heat setting indicator appears again and the heat setting can be re-set or modified. If other timer functions are set, after a few seconds the shortest re- maining time of all the timer functions is displayed and the corre- sponding pilot light flashes. -
Page 16: Changing The Time
Changing the time Step Control panel field Display Select cooking Pilot light of the cooking zone select- zone ed flashes faster The time remaining is displayed 01 to 99 minutes Touch the cooking zone se- lected After a few seconds the pilot light flashes more slowly. The time is set. -
Page 17: Safety Cut-Out
Safety cut-out Cooking surface • If after switching on the cooking surface, a heat setting is not set for a cooking zone within approx. 10 seconds, the cooking surface auto- matically switches itself off. • If one or more sensor fields are covered by objects (a pan, cloths, etc.) for longer than approx. -
Page 18: Tips On Cooking And Frying
Tips on Cooking and Frying Information on acrylamides According to the latest scientific knowledge, intensive browning of food, especially in products containing starch, can constitute a health risk due to acrylamides. Therefore we recommend cooking at the lowest possible temperatures and not browning foods too much. Cookware •... -
Page 19: Tips On Energy Saving
Bottom of the cookware The bottom of the cookware should be as thick and flat as possible. Pan size Induction cooking zones adapt automatically to the size of the bottom of the cookware up to a certain limit. However the magnetic part of the bottom of the cookware must have a minimum diameter depending upon the size of the cooking zone. -
Page 20: Examples Of Cooking Applications
Examples of cooking applications The information given in the following table is for guidance only. Heat Cooking- Cooking set- suitable for Tips/Hints process time ting Off position Keeping Keeping cooked foods food as required Cover warm warm Hollandaise sauce, Melting melting butter, chocolate, 5-25 mins. -
Page 21: Cleaning And Care
Cleaning and Care Take care! Risk of burns from residual heat. Warning! Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid. Warning! Residues from cleaning agents will damage the appliance. Remove residues with water and washing up liquid. Cleaning the appliance after each use 1. -
Page 22: What To Do If
What to do if … Problem Possible cause Remedy The appliance cannot be More than 10 seconds have Switch the appliance on switched on or is not oper- passed since the appliance again. ating was switched on The lock is switched on Switch off the lock (See the section “Locking/un- locking the control panel”) - Page 23 Problem Possible cause Remedy Display is switching be- Power management is re- See the section “Switching tween two heat settings ducing the power of this the power function on and cooking zone off” flashes Unsuitable cookware Use suitable cookware No cookware on the cook- Place cookware on the ing zone cooking zone...
-
Page 24: Disposal
Disposal Packaging material The packaging materials are environmentally friendly and can be recy- cled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities. Old appliance The symbol on the product or on its packaging indicates that this... -
Page 25: Installation Instructions
Installation Instructions Safety instructions The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accord- ance with the regulations, etc.) Installation may only be carried out by a qualified electrician. The minimum distances to other appliances and units are to be ob- served. - Page 26 • If this appliance’s mains cable is damaged, it must be replaced by a special cable (type H05BB-F Tmax 90°; or higher). The latter is availa- ble from the Customer Care Department. A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm.
-
Page 27: Guarantee Conditions
Rechte, die durch diese Garantie nicht eingeschränkt werden. Diese Garantie räumt dem Verbraucher also zusätzliche Rechte ein. Dies vorausgeschickt, leisten wir, AEG Hausgeräte GmbH, gegenüber dem Verbraucher Garantie für dieses Gerät für den Zeitraum von 24 Monaten ab Übergabe zu den folgenden Bedingungen: 1. -
Page 29: Service
Service In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instruc- tions (section “What to do if…”). If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners. -
Page 30: Assembly
Montage / Assembly / Montage... - Page 33 Typenschild / Rating Plate / Plaque signalétique 67670K-MN 949 592 454 55GAD82AG 230 V 50 Hz Induction 3,7 kW 7,3 kW AEG - ELECTROLUX...
- Page 34 USD 14 billion in more than 150 countries around the world. AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg-electrolux.de © Copyright by AEG Änderungen vorbehalten Subject to change without notice 822 925 825-A-100206-01 Sous réserve de modifications...
