Brandt WFE0610K User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

WASHING MACHINE
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WFE0610K and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Brandt WFE0610K

Summary of Contents for Brandt WFE0610K

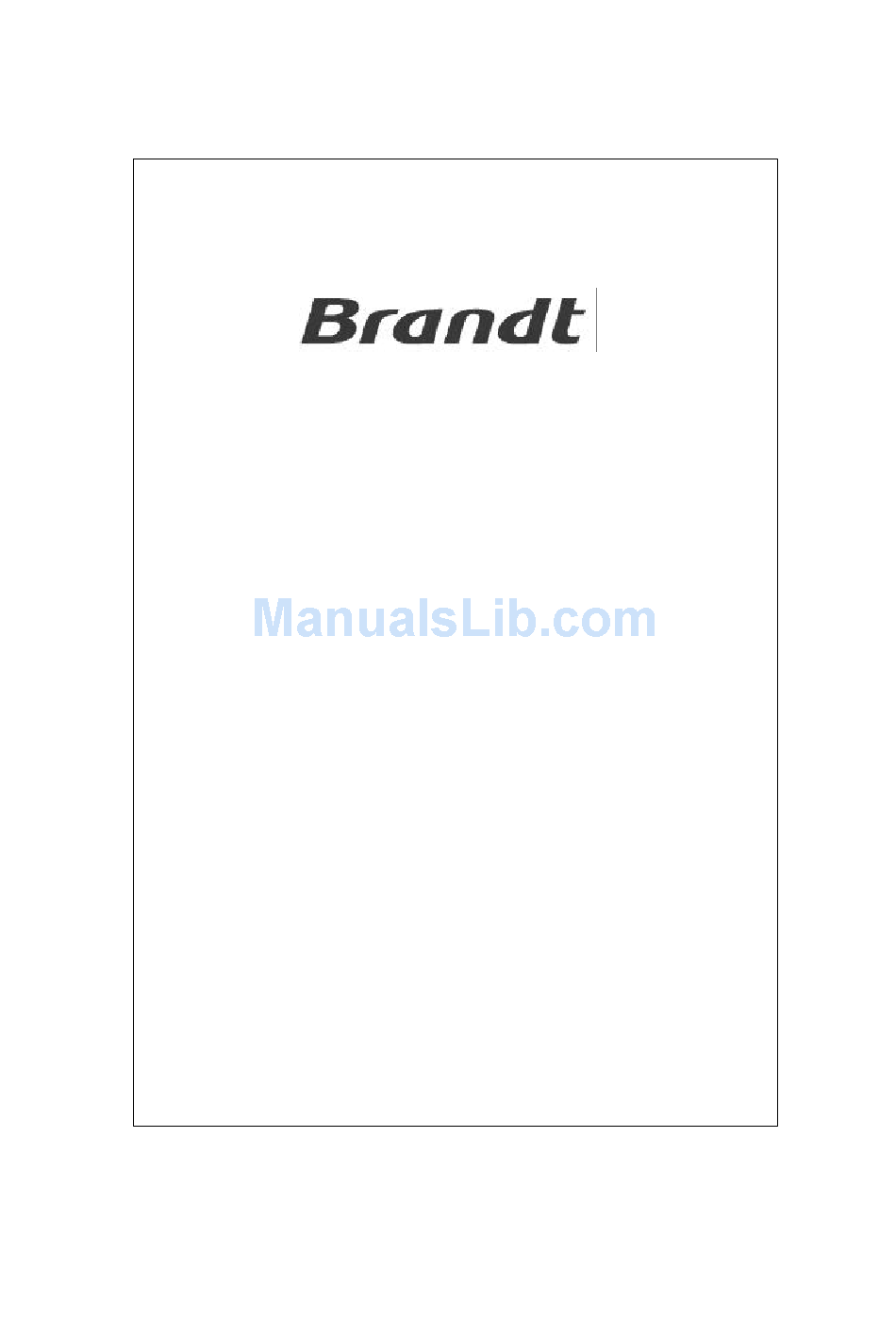

  • Page 1 WASHING MACHINE USER MANUAL...

  • Page 2: Table Of Contents

    THE CONTENTS SECTION 1:BEFORE USING Safety warnings Recommendations SECTION 2: INSTALLATION Removal of the transportation screws Adjustment of feet Electrical connection Water supply connection Water drain connection SECTION 3:TECHNICAL SPECIFICATIONS SECTION 4:CONTROL PANEL On/Off button Signal light Function buttons Temperature adjustment knob Program knob SECTION 5:WASHING YOUR LAUNDRY Before washing...

  • Page 3: Section 1:Before Using

    SECTION 1:BEFORE USING SAFETY WARNINGS Do not use a multiple socket or extension cord. Do not insert a plug with damaged or broken cord into the socket. If the cord is damaged it should be replaced by the manufacturer or appointed service agent in order to avoid a hazard.

  • Page 4: Section 2: Installation

    If you will not use your machine for a long time, unplug your machine, close the water supply and leave the door open in order to keep the inside of the machine dry and for prevention from unpleasant odour. As a result of the quality control procedures, a certain amount of water may remain in your machine.

  • Page 5: Electrical Connection

    You can adjust the balance of your machine from its feet. First, loosen the plastic adjustment nut. Adjust by rotating the feet upwards or downwards. After the balance has been reached, tighten the plastic adjustment nut again by rotating it upwards. Never put cartons, wooden blocks or similar materials under the machine to balance the irregularities on the level of the ground.

  • Page 6: Water Drain Connection

    Cold water inlet WATER DRAIN CONNECTION Be sure that water inlet hoses are not folded, twisted, crushed or elongated by stretching. Water drain hose should be mounted at a height of minimum 60 cm, maximum 100 cm from the ground. The end of the water drain hose may directly be fitted to the dirty water outlet hole or a special apparatus mounted on the outlet bracket of the wash-stand.

  • Page 7: Section 3:Technical Specifications

    SECTION 3:TECHNICAL SPECIFICATIONS Maximum dry laundry capacity (kg) Recommended loading (kg) Height (cm) Width (cm) 59,6 Depth (cm) 1-Top 5-Handle 2-Detergent drawer 6-Filter cover 3-Control panel 7-Kickplate 4-Door...

  • Page 8: Section 4:Control Panel

    SECTION 4:CONTROL PANEL 1-Detergent drawer 4-Program knob 2-Signal light 5-On/Off button 3-Temperature adjustment knob 6-Function buttons ON/OFF BUTTON Used to turn on and to shut off your machine and to start the selected program. WARNING! Your machine should be in shut off status before selecting a program or changing a continuing program.

  • Page 9: Temperature Adjustment Knob

    No spin This program is recommended to be used for your sensitive clothes which should not be spinned.By pressing this function button, you prevent the spinning process which is included in the program. TEMPARATURE ADJUSTMENT KNOB By the temparature adjustment knob, you can adjust the washing water temparature of your clothes between (cold wash) and 90 °C.
  • Page 10 I Off 1 Cotton 90° (Prewash) 2 Intensive 90° 3 Normal 60° 4 Delicate 40° 5 Eco 30° 6 Synthetic intensive 60° 7 Synthetic normal 50° 8 Delicate normal 40° 9 Wool normal 40° Softening Rinsing Spinning Draining...
  • Page 11 DETERGENT ADDITIONAL FUNCTION MAX DRY LOAD PROG. PROGRAM TYPE OF LAUNDRY EXPLANATIONS COMPART. BUTTON CAPACITY (kg) COTTON 90° Very dirty, boil, cotton and (PREWASH) linen textile Dirty, boil, cotton and linen INTENSIVE 90° textile Underwears, sheet, Dirty, cotton, coloured and NORMAL 60°...
  • Page 12 DETERGENT ADDITIONAL FUNCTION MAX DRY LOAD PROG. PROGRAM TYPE OF LAUNDRY EXPLANATIONS COMPART. BUTTON CAPACITY (kg) Dirty, hand and machine to WOOL NORMAL 40° All wool laundry wash wool laundry You can use this program when you desire to have an additional rinsing to be RINSING done on your clothes after the washing process.

  • Page 13: Section 5:Washing Your Laundry

    SECTION 5: WASHING YOUR LAUNDRY Plug the machine. Open the tap water. First wash cycle There may be water left inside your machine after factory tests and trials.It is recommended that the first wash cycle should be made without any laundry so that carry out this water;...

  • Page 14: Running The Machine

    Your detergent consumption will change according to the dirtiness level of your clothes. For your slightly dirty clothes, do not pre-wash and put a small amount of detergent in the compartment no.2 of the detergent drawer. For your excessively dirty clothes, select a program with pre- washing, fill ¼...

  • Page 15: Section 6:Maintenance And Cleaning

    Cancellation of program If you want to end an operating program early: Press the on/off button. Bring the program knob on one of the “Draining” or “Spinning” programs, whichever you want. Operate the program you have selected by pressing the on/off button. Program Ending Your machine will stop automatically when the program you have selected ends.

  • Page 16: Pump Filter

    Clean the filters of the water inlet hoses located on the tap side by removing manually together with the seal. After you clean the filters, you can fit them the same way as you have removed. PUMP FILTER The pump filter system elongates the life of your pump, which is used to drain the dirty water.

  • Page 17: Detergent Drawer

    WARNING! Danger of being scalded! Since the water inside the pump maybe hot, wait for it to cool. DETERGENT DRAWER Detergents may form a sediment in your detergent drawer or in housing of the detergent drawer in time. To clean the sediment, pull out the detergent drawer from time to time.

  • Page 18: Siphon Plug

    SIPHON PLUG Pull out the detrgent drawer. Remove the siphon plug and clean the residues of the softener thoroughly. Fit the cleaned siphon plug in its location. Check if it placed properly. Siphon plug THE CABINET Clean the exterior surface of the cabinet of your machine with lukewarm water and a cleaning substance that will not irritate the cabinet.

  • Page 19: Section 7:Practical Information

    SECTION 7:PRACTICAL INFORMATION Alcoholic beverages: The stain point, should first be washed with cold water, than should be wiped with glycerine and water and be rinsed with water mixed with vinegar. Shoe Polish: The stain should be slightly scratched without ruining the cloth, rubbed with detergent and rinsed.

  • Page 20: Section 8: Avoiding Minor Faults

    Mould: Mould stains should be cleaned as soon as possible. The stain should be washed with detergent, and if it does not disappear, it should be wiped with oxygenated water (in proportion of 3%). Ink: Hold the stained area under cold water and wait until the inky water completely runs off.
  • Page 21 METHODS OF FAILURE PROBABLE CAUSE ELIMINATION Insert the plug into the It is unplugged. socket. Your fuse is defected. Change your fuse. The electric power is Check the electric off. power. Start/pause button has Press the start/pause Your machine does not not been pressed.
  • Page 22 METHODS OF FAILURE PROBABLE CAUSE ELIMINATION There is a small It does not prevent amount of clothes in operation of the the device. machine. Do not exceed the Excessive amount of recommended quantity clothes are filled in the Your machine is of clothes and spread machine or the clothes vibrating.
  • Page 23 METHODS OF FAILURE PROBABLE CAUSE ELIMINATION Clothes exceeding the Put the clothes in your maximum capacity machine in a manner has been filled in your not to exceed its machine. maximum capacity. Use the amount of The washing result is Your water may be detergent according to not good.

  • Page 24: Section 9:International Washing Signs

    SECTION 9: INTERNATIONAL WASHING SIGNS Washing Do not wash Lukewarm iron. Medium hot iron. temparature. (hand wash) Do not tumble Hot iron. Do not iron. Hang to dry. dry. Drip dry. Dry flat. Do not bleach. Handy to bleach. All of these are dry cleaning symbols. The letters are to instruct the cleaner what type of solvent to be used.
  • Page 25 After Sales Service: Possible maintenance on your washing machine should be undertaken by : either your dealer, or another qualified mechanic who is an authorized agent for the brand appliances. When making an appointment, state the complete reference of your equipment (model, type and serial number).
