Summary of Contents for Brandt WFB394QWA
-
Page 2: Table Of Contents
CONTENTS Safety instructions ..............2 Installation ................5 Operation ................11 Maintenance ................. 23 Troubleshooting ..............27 Availability of spare parts ............29... -
Page 3: Safety Instructions
Safety instructions This appliance is designed to be used for domestic • applications only The appliance must be connected to the mains water • supply using the brand new connection fittings supplied with the appliance. Never reuse old fittings. Never obstruct the ventilation openings. •... - Page 4 are explosive gasses or caustic substances. If the washing machine has only one water inlet valve, • connect it to a cold water source only. The power plug must remain accessible after the • appliance is installed. Remove all packaging materials and the transit bolts •...
- Page 5 Check that the water inside the drum has been drained • before opening the door. Do not open the door if you can still see water inside the washing machine. Be careful to avoid injury when draining very hot washing •...
-
Page 6: Installation

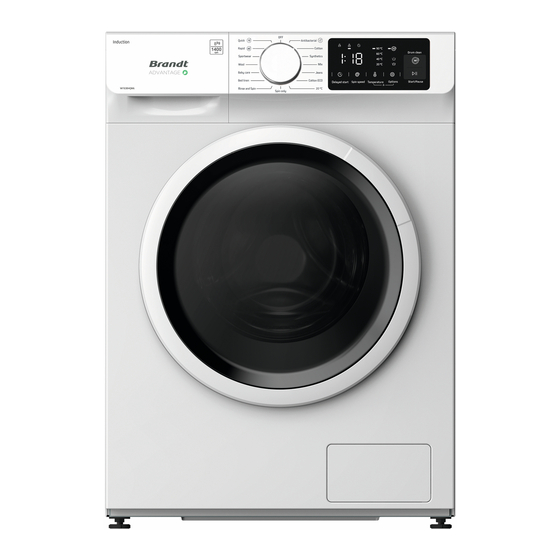

Installation Description of the product 1. Top panel Drain hose 2. Control panel Water supply hose 3. Power cord Detergent compartment 4. Drum Window 5. Filter Note! The illustration of the accessories is provided for • reference purposes only. Please refer to the actual product. - Page 7 Accessories Transit bolt Cold water Drain hose User guide hole covers supply hose holder Installation location Warning! It is important that the product be stabilised so that it will • not move! Ensure that the appliance is not resting on the power •...
- Page 8 Unpacking the washing machine Warning! Packaging materials (e.g. plastic film, polystyrene) can be • hazardous to children. There is a suffocation hazard! Keep all packaging • materials away from children. Remove the cardboard box and the polystyrene wrapping. Lift the washing machine and remove the packaging under it.
- Page 9 Proceed as follows to remove the transit bolts: Use a spanner to loosen the four transit bolts then pull them out. Push the four transit bolt cover caps provided for this purpose into the holes. Keep the transit bolts in a safe place for future reuse.
- Page 10 Connecting the Water Supply Hose Warning! Follow the instructions in this section to avoid water leaks • or water damage. Don't twist, squash, modify or cut the water supply hose. • Connecting the water supply hose to a threaded tap Threaded tap and water supply hose Connect the other end of the water supply hose to the water supply valve located on the back of the washing machine then...
- Page 11 Drain hose Warning! Do not twist or extend the drain hose. • • Position the drain hose correctly. If you do not perform this operation correctly a water leak may occur. Note! Your washing machine is provided with a drain hose •...
-
Page 12: Operation
Warning! When you install a drain hose, attach it properly using a • cord. If the drain hose is too long, never attempt to insert part of • it into the washing machine by forcing it as this will cause unusual noises. - Page 13 Main wash detergent Softener Prewash 4. Close the door 5. Add detergent Washing Start/Pause 1. Select the 3. Start the 2. Select a programme programme function or the default settings Note! If you use the default settings, you can skip step 2. •...
- Page 14 Before every wash Always read the washing labels on garments and the • explanations on how to use the detergent before washing. Choose detergent that produces little or no foam for optimum washing and to avoid any overflowing. Refer to the instructions provided by the detergent maker as shown on the detergent packaging.
- Page 15 Type of textile Programme Detergent White cotton Cotton temp. ≤ 90°C Detergent with whitening product Colours made of linen or cotton Cotton temp. ≤ 60°C Colours without whitening product Mixed fibres Mixed temp. ≤ 60°C Colour wash Synthetics Synthetics temp. ≤ 60°C Colour/delicate wash Delicate textiles Wool temp.
- Page 16 Use only LOW SUDS detergent...
- Page 22 Antibacterial Cotton ECO This machine is specifically configured to clean its drum. Drum Clean It uses 90°C high-temperature sterilizing to make clothes washing more energy efficient. When this program is activated, garments and other laundry cannot be added. The drum cleaning effect improves when the right amount of drum cleaning cleaning agent is added.
- Page 23 For WELS (Water Efficiency Labeling Scheme) Singapore, Cotton ECO is the recommended program designed to minimize water consumption for normally soiled load at rated capacity.
-
Page 24: Maintenance
Maintenance Cleaning and Care Warning! Always switch off the appliance and turn off the water tap • before any maintenance operations. Cleaning the exterior of your washing machine Suitable maintenance will optimise the service life of your washing machine. Appliance surfaces can be cleaned with neutral non- abrasive detergents diluted where necessary. - Page 25 Note! Do not put laundry in the washing machine during the • drum cleaning. Cleaning the door and window seal Wipe the window and seal after each wash to remove lint and stains. If lint builds up, it can cause leaks.
- Page 26 Cleaning the washing machine filter Unscrew the water inlet hose from the back of the machine. Use a brush to clean the filter. Reconnect the water inlet hose. Cleaning the detergent compartment If you observe any dirtying of the detergent drawer, clean it. To do this: Press down on the clip inside the detergent drawer as shown by the arrow.
- Page 27 Cleaning the drain pump filter Warning! Beware of hot water! • Disconnect the appliance to avoid any electric shock • hazard. The drain pump filter filters out lint and other small debris • present in the laundry. Clean the filter regularly to ensure proper washing •...
-
Page 28: Troubleshooting
Troubleshooting The washing machine cannot start up or stops during operation. First attempt to solve the problem. If you cannot, then contact the service centre. Description Cause Solution Washing machine The door is not properly Switch the washing cannot start up closed machine back on after closing the door... - Page 29 Description Cause Solution The door is not Close the door properly and restart the properly closed washing machine Check whether any clothes are trapped Problem adding Check whether the water pressure is water during too low washing Straighten the water supply hose Check the water supply filter is not blocked Water drainage...
- Page 31 General information on regulation EU 2019-2023 When using the test programmes, wash the specified load • using the maximum spin speed. The actual parameters will depend on how the appliance • is used and may differ from the preset parameters. This domestic washing machine is equipped with a •...
- Page 32 AFTER-SALES SERVICE Any repairs to your appliance must be made by a qualified professional accredited to work on the brand. When calling, please provide the full references of your appliance (commercial reference, service reference, serial number), so that we can handle your call more efficiently.
- Page 33 This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste. There are separate collection systems for recycling in the European Union. For more information, please contact the local authority or your retailer where you purchased the product.
