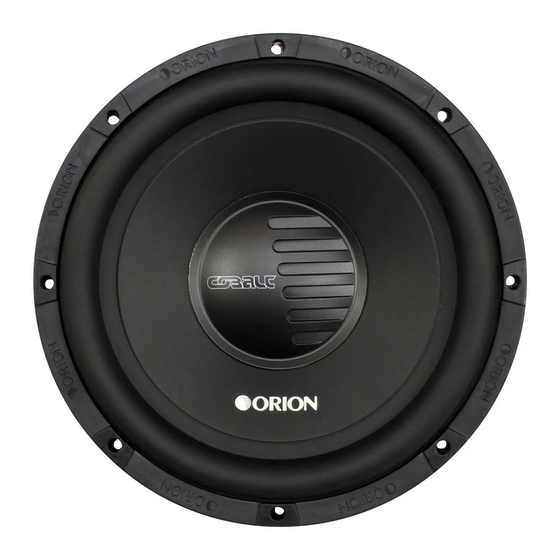

Orion Cobalt CO104S Owner's Manual

Orion Cobalt CO104S Owner's Manual

Hide thumbs Also See for Cobalt CO104S:

Advertisement

Su bwoo fe r
MOD EL
CO104S
CO124S
CO154S
OWNER'S MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Cobalt CO104S and is the answer not in the manual?

Questions and answers

Summary of Contents for Orion Cobalt CO104S

  • Page 1 Su bwoo fe r MOD EL CO104S CO124S CO154S OWNER'S MANUAL...
  • Page 2: Table Of Contents

    What we can’t give you with the manual is personal installation or technical experience. If you have questions concerning the use or application of this product please refer to the nearest ORION dealer for assistance, visit www.orioncaraudio.com, or call the technical support hot- line at 1-800-876-0800.
  • Page 3: What's In The Box

    Care taken with the installation process will be rewarded by years of satisfying performance. If you are unsure of your installation abilities, please refer to your local authorized Orion dealer for assistance. Orion dealers are trained professionals dedicated to extracting the maximum performance out of your Orion system.
  • Page 4: Features

    FEATURES © 2008 directed electronics—all rights reserved...
  • Page 5: Wiring Configurations

    WIRING CONFIGURATIONS The following illustrations provide guidelines on properly connecting your Orion Cobalt woofer to an Orion Cobalt amplifier for maximum performance. Recommended Amplifier Power Continuous Power (RMS) Peak Power (Watts) 1 woofer 100 to 300 200 to 600 2 woofers...
  • Page 6 One Speaker (4 ohm voice coil) One 4 ohm voice coil woofer results in a 4 ohm load to the amplifier. Figure 3 Figura 3 Abbildung 3 1. Connect the speaker by connecting the positive (+) terminal of the woofer to the positive (+) terminal on the amplifier.
  • Page 7 Series—Two Speakers (Single 4 ohm voice coils) Two single 4 ohm voice coil subwoofers with the voice coils connected in series to result in an 8 ohm load to the amplifier. Figure 4 Figura 4 Abbildung 4 1. Connect the woofers in series by connecting the negative (-) terminal of the first woofer voice coil to the positive (+) terminal of the second woofer voice coil.
  • Page 8 Series/Parallel - 4 Speakers (Single 4 Ohm Coils) 4 single 4 ohm voice coil subwoofers with the voice coils of each pair of speaker wired in series and then all 4 speakers wired in parallel to result in a 4 ohm load on the amplifier.
  • Page 9: Enclosure Recommendations

    2. Includes speaker displacement 3. Volumes given are net tuning volume 4. Enclosures include a minimal amount of damping material. Just enough material to line the inside of the enclosure is required. Cobalt CO104S Sealed Enclosure Recommendations Figure 6 Figura 6 Abbildung 6...
  • Page 10 Figure 7 Figura 7 Abbildung 7 © 2008 directed electronics—all rights reserved...
  • Page 11 Figure 8 Figura 8 Abbildung 8 © 2008 directed electronics—all rights reserved...
  • Page 12 Figure 9 Figura 9 Abbildung 9 © 2008 directed electronics—all rights reserved...
  • Page 13 Figure 10 Figura 10 Abbildung 10 © 2008 directed electronics—all rights reserved...
  • Page 14 Figure 11 Figura 11 Abbildung 11 © 2008 directed electronics—all rights reserved...
  • Page 15: Specifications

    SPECIFICATIONS Model/Part Number CO104S CO124S CO154S Thiele/Small Parameters Fs (free-air resonance, Hz) 39.2 25.6 25.2 Vas (equivalent compliance, cu. ft.) 1.080 4.017 7.098 Vas (equivalent compliance, liters) 30.600 113.790 201.070 Qms (Q, mechanical) 3.53 4.72 6.08 Qes (Q, electrical) 0.68 0.55 0.51 Qts (total driver Q)
  • Page 16: Figure

    Figure 12 Figura 12 Abbildung 12 CO104S CO124S CO154S Dimensions inches/mm, Dimensions po/mm, Dimensiones plg./mm, Abmessungen Zoll/mm, Dimensioni pollici/millimetri, Dimensões polegadas/mm 5.12/130 5.51/140 6.46/164 1.97/50 1.97/50 2.01/51 4.96/126 5.00/127 5.71/145 9.13/232 10.91/277 13.82/351 10.16/258 12.20/310 15.16/385 © 2008 directed electronics—all rights reserved...
  • Page 17: Warranty

    Limited Warranty may not apply to you. This Limited Warranty gives you specific legal rights, and you may have other rights which vary from state to state. 920-0033 04-07 For more information on Orion products please visit www.orioncaraudio.com Directed Electronics is committed to delivering world class quality products and services that excite and delight our customers.
