Orion HCCA BLACK COIL Series Manual

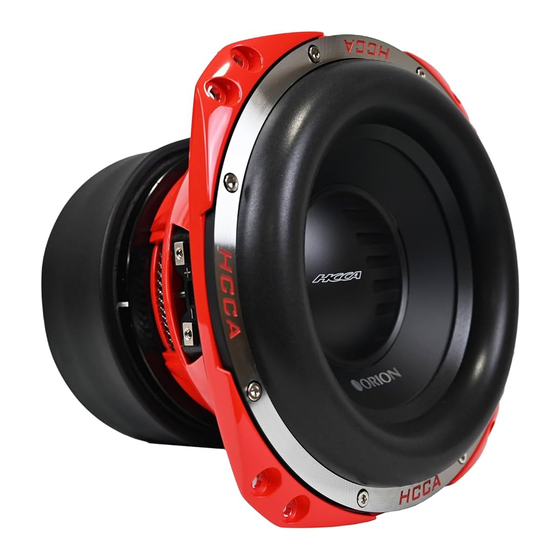

High performance competition subwoofers
Hide thumbs Also See for HCCA BLACK COIL Series:
Table of Contents

Advertisement

Quick Links

HCCA102
HCCA104
HCCA122
High Performance
Competition Subwoofers
HCCA124
HCCA152
HCCA154

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCCA BLACK COIL Series and is the answer not in the manual?

Questions and answers

Related Manuals for Orion HCCA BLACK COIL Series

Summary of Contents for Orion HCCA BLACK COIL Series

  • Page 1 HCCA102 HCCA124 HCCA104 HCCA152 HCCA122 HCCA154 High Performance Competition Subwoofers...
  • Page 2 Thank you for purchasing this Orion product. Orion products are specif ically engineered and designed for the mobile audio environment. This manual contains important information about installation, set-up procedures and integrating your new Orion product into your vehicle. With proper care and installation, your new product will provide you with many years of high performance listening enjoyment.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION......................2 FEATURES......................3 SPECIFICATION..................4-5 WIRING CONFIGURATION..................6-12 BUILDING AN ENCLOSURE..................13 ENCLOSURE DETAILS....................14 ENCLOSURE RECOMMENDATION..............15-26 WARNING & DISCLAIMER..................27 TROUBLESHOOTING.....................28 WARRANTY......................29-30 WHAT’S IN THE BOX 1 x HCCA Subwoofer 1 x Mounting Template 1 x Owner’s Manual 1 x Window Sticker...

  • Page 4: Features

    FEATURES Polypropylene dust cap - moisture and UV resistant. Tall, wide, balanced, NBR Foam (high density expanded polyester foam) surround for linear controlled long excursion using a Tri Radius symmetrical edge design optimized on non-linear FEA. Paper cone - moisture and UV resistant. Custom Cast Aluminum frame.

  • Page 5: Specification

    SPECIFICATIONS Model Number HCCA102 HCCA104 HCCA122 HCCA124 HCCA152 HCCA154 Size 10” 10” 12” 12” 15” 15” Fs (free-air resonance, Hz) 42.51 44.3 32.3 33.2 28.13 30.02 Vas (equivalent compliance, cu. 0.31029 0.31699 0.89274 0.93157 2.95746 2.82259 ft.) Vas (equivalent compliance, 8.79 8.98 25.29...
  • Page 6 SPECIFICATIONS Model Number HCCA102 HCCA104 HCCA122 HCCA124 HCCA152 HCCA154 Physical Dimensions Speaker Displacement (cu ft) 0.1268 0.1268 0.28931 0.28931 0.37704 0.37704 Speaker Outer Diameter (inches/ Mounting hole diameter (inches/ 9.37 9.37 11.5 11.5 15.079 15.079 Mounting depth (inches/mm) 8.425/214 8.425/214 10.28/261 10.28/261 11.575/294 11.575/294 Magnet Weight (Oz)

  • Page 7: Wiring Configuration

    ORION HCCA 15” 4 OHM Re-cone Kit WIRING CONFIGURATIONS The following illustrations provide guidelines on properly connecting your HCCA Orion woofer to an amplifier for maximum power and performance using common parallel, and series/parallel wiring configurations. Recommended Amplifier Power 1 woofer...
  • Page 8 WIRING CONFIGURATION Series - One Speakers (Dual 2 ohm voice coils) One dual 2 ohm voice coil woofer with voice coils in connected in series results in a 4 ohm load to the amplifier. Parallel - One Speakers (Dual 2 ohm voice coils) One dual 2 ohm voice coil woofer with voice coils in parallel results in a 1 ohm load to the amplifier.
  • Page 9 WIRING CONFIGURATION Parallel - One Speakers (Dual 4 ohm voice coils) One dual 4 ohm voice coil woofer with voice coils in parallel results in a 2 ohm load to the amplifier. Parallel - Two Speakers (Dual 4 ohm voice coils) Two dual 4 oh voice woofers with voice coils in parallel results in a 1 ohm to the amplifier.
  • Page 10 WIRING CONFIGURATION Series-Parallel - Two Speakers (Dual 2 ohm voice coils) Two dual 2 ohm voice coil woofers with voice coils in series and then parallel the two series woofers results in a 2 ohm load to the amplifier. Series-Parallel - Three Speakers (Dual 4 ohm voice coils) Three dual 4 ohm voice coil woofers with voice coils of each woofer wired in series and then parallel the three woofers for resulting 2.67 ohm load to the amplifier.
  • Page 11 WIRING CONFIGURATION Series-Parallel - Four Speakers (Dual 4 ohm voice coils) Four dual 4 ohm voice coil woofer should be wired with the voice coils on each woofer in series and then parallel the four woofers for a resulting 2 ohm load to the amplifier. Series-Parallel—Four Speakers (dual 2 ohm voice coils) Four dual 2 ohm voice coil woofers should be wired with the voice coils on each woofer in series and then parallel the four woofers for...
  • Page 12 WIRING CONFIGURATION 2 Amplifiers - One Speaker (dual 2 ohm coils) One dual 2 ohm voice coil woofer with each voice coil connected to an individual amplifier, resulting in a 2 ohm to each amplifier.
  • Page 13 WIRING CONFIGURATION 2 Amplifiers - One Speaker (dual 4 ohm coils) One dual 4 ohm voice coil woofer with each voice coil connected to an individual amplifier, resulting in a 4 ohm to each amplifier.

  • Page 14: Building An Enclosure

    BUILDING AN ENCLOSURE If you’re planning to build your own enclosure and are confused in what type of enclosure best suits your needs this page will help you choose what enclosure best f its your needs. There are many different types of enclosures. The two most common used enclosures are sealed and vented enclosure.

  • Page 15: Enclosure Details

    *** Subsonic filter should always be used and adjusted specifically for vented box designs. ENCLOSURE DESIGN This section gives the basic description for a sealed enclosure. Orion HCCA woofers are designed for sealed enclosures and vented enclosures. Sealed enclosures are generally considered the most versatile for all music types and are the easiest to build.

  • Page 16: Enclosure Recommendation

    ENCLOSURE RECOMMENDATION HCCA102 & HCCA104 SEALED ENCLOSURE Box Properties — Box Parameters — — Description — 0.913 cu.ft Type: Closed Box Shape: Prism, Square V(total) = 1 cu.ft 0.537 67.85 Hz Fill none — External Dimensions — A = 14 in (356 mm) B = 14 in (356 mm) C = 14 in (356 mm) —...
  • Page 17 ENCLOSURE RECOMMENDATION HCCA102 & HCCA104 VENTED 800 TO 1500 WATTS INPUT Box Properties — Description — — Box Parameters — — Vents — Type: Vented Box 1.785 cu.ft No. of Vents V(total) = 2.042 cu.ft Vent shape = rectangle Shape: Prism, Square 38 Hz Vent ends = one flush...
  • Page 18 ENCLOSURE RECOMMENDATION HCCA102 & HCCA104 VENTED 1500+ WATTS INPUT Box Properties — Description — — Box Parameters — — Vents — 0.75 cu.ft No. of Vents Type: Vented Box V(total) = 1.007 cu.ft Vent shape = rectangle Shape: Prism, Square 42 Hz Vent ends = one flush...
  • Page 19 ENCLOSURE RECOMMENDATION HCCA102 & HCCA104 VENTED SPL ENCLOSURE ONLY Box Properties — Box Parameters — — Vents — — Description — 1.25 cu.ft No. of Vents Type: Vented Box Shape: Prism, Square V(total) = 1.507 cu.ft Vent shape = rectangle 57 Hz Vent ends = one flush...
  • Page 20 ENCLOSURE RECOMMENDATION HCCA122 & HCCA124 SEALED ENCLOSURES Box Properties — Box Parameters — — Description — Type: Closed Box 2 cu.ft Shape: Prism, Square (optimum) V(total) = 2.244 cu.ft 0.952 12.95 32.93 Hz Fill none — External Dimensions — A = 17.71 in. (450 mm) B = 27.42 in.
  • Page 21 ENCLOSURE RECOMMENDATION HCCA122 & HCCA124 VENTED 1200 TO 2000 WATTS INPUT Box Properties — Box Parameters — — Vents — — Description — Type: Vented Box 2.5 cu.ft No. of Vents Shape: Prism, Square V(total) = 3.079 cu.ft Vent shape = rectangle 38 Hz Vent ends...
  • Page 22 ENCLOSURE RECOMMENDATION HCCA122 & HCCA124 VENTED 2000+ WATTS INPUT Box Properties — Box Parameters — — Vents — — Description — Type: Vented Box 1.5 cu.ft No. of Vents V(total) = 2.65 cu.ft Vent shape = rectangle Shape: Prism, Square 40 Hz Vent ends = one flush...
  • Page 23 ENCLOSURE RECOMMENDATION HCCA122 & HCCA124 VENTED SPL ENCLOSURE ONLY Box Properties — Box Parameters — — Vents — — Description — Type: Vented Box 2 cu.ft No. of Vents V(total) = 2.502 cu.ft Vent shape = rectangle Shape: Prism, Square 57 Hz Vent ends = one flush...
  • Page 24 ENCLOSURE RECOMMENDATION HCCA152 & HCCA154 SEALED ENCLOSURE Box Properties — Box Parameters — — Description — 3.64 cu.ft Type: Closed Box Shape: Prism, Square 0.587 45.39 Hz Fill none — External Dimensions — A = 19.5 in. (495 mm) B = 20 in. (508 mm) C = 22 in.
  • Page 25 ENCLOSURE RECOMMENDATION HCCA152 & HCCA154 VENTED 1200 TO 2000 WATTS INPUT Box Properties — Box Parameters — — Vents — — Description — 4.5 cu.ft No. of Vents Type: Vented Box V(total) = 5.32 cu.ft Vent shape = rectangle Shape: Prism, Square 38 Hz Vent ends = one flush...
  • Page 26 ENCLOSURE RECOMMENDATION HCCA152 & HCCA154 VENTED 2000+ WATTS INPUT Box Properties — Box Parameters — — Vents — — Description — Type: Vented Box 3.05 cu.ft No. of Vents V(total) = 4.491 cu.ft Vent shape = rectangle Shape: Prism, Square 38 Hz Vent ends = one flush...
  • Page 27 ENCLOSURE RECOMMENDATION HCCA122 & HCCA124 VENTED SPL ENCLOSURE ONLY Box Properties — Box Parameters — — Vents — — Description — Type: Vented Box 3.5 cu.ft No. of Vents Shape: Prism, Square V(total) = 4.794 cu.ft Vent shape = rectangle (optimum) 57 Hz Vent ends...

  • Page 28: Warning & Disclaimer

    IMPORTANT: Never cut any metal that is an integral part of the vehicle’s safety or structural support system. If you are unsure, it is best to have the product professionally installed by an Authorized ORION Dealer. Never sacrif ice your safety for sound.

  • Page 29: Troubleshooting

    TROUBLESHOOTING Symptom Check Point Remedy No Sound Is the amplifier power LED 1. Check fuses in amplifier illuminated? 2. Check turn-on lead 3. Check signal lead 4. Check gain control 5. Check source unit volume 6. Clean contacts on fuse holders Is the amplifier overload LED Check speaker for short or illuminated?

  • Page 30: Warranty

    5. The sole responsibility of Orion under this warranty shall be limited to the repair or replacement thereof, at the sole discretion of Orion. 6. If it becomes necessary to send the product or any defective part to...
  • Page 31 ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. 10. Should you have any difficulties with the performance of this product during warranty or with any Orion authorized service center, you may contact Orion by emailing us at support@orioncaraudio.com.
  • Page 32 3130 WEST 15TH AVENUE HIALEAH, FLORIDA 33012 TEL: 786.464.0247 EMAIL: SUPPORT@ORIONCARAUDIO.COM ORIONCARAUDIO.COM PROUD SPONSOR OF Copyright ORION All rights reserved. Any unauthorized reproduction or use of any Orion logos, images or design elements is strictly prohibited by law. Specifications subject to change without notice. REV. 23.5...
