This motherboard supports Intel
it into CPU socket.
1. Pull up the CPU socket lever and
up to 90-degree angle.
X
3
7
D
P
r
o
X
3
7
D
P
r
o
®
®
Pentium III
and Celeron

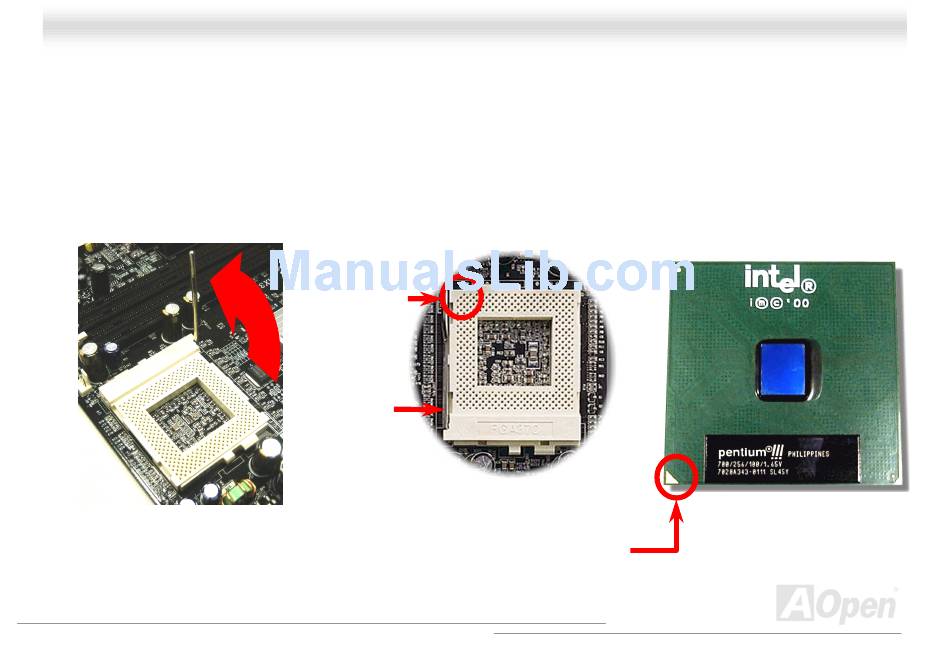

2. Locate Pin 1 in the socket and look for a black dot or cut edge on the
CPU upper interface. Match Pin 1 and cut edge, then insert the CPU into
the socket.
CPU pin 1
and cut edge
CPU socket
Lever
Socket 370 series CPU. Be careful of CPU orientation when you plug
CPU cut edge
