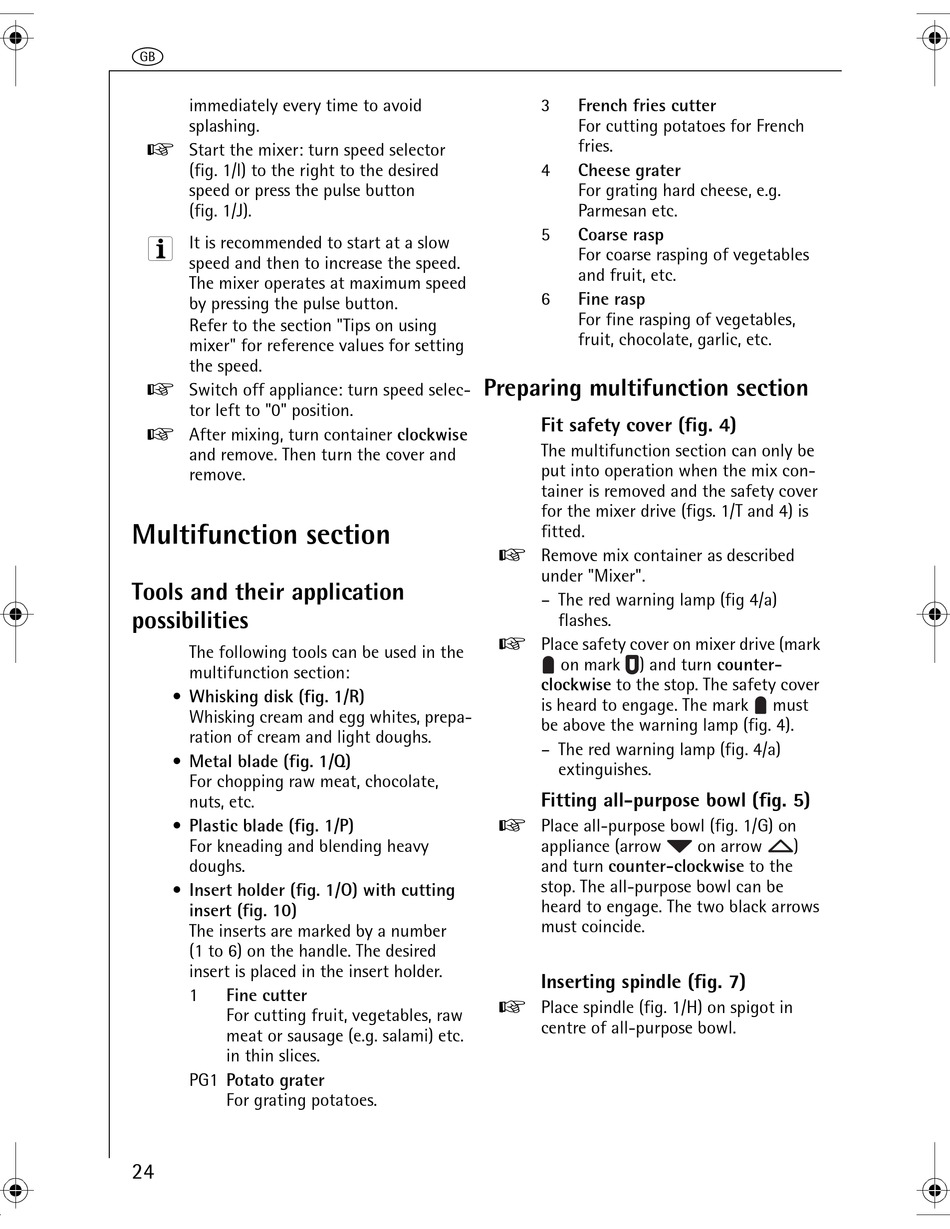

g
immediately every time to avoid
splashing.
0 Start the mixer: turn speed selector
(fig. 1/l) to the right to the desired
speed or press the pulse button
(fig. 1/J).
3 It is recommended to start at a slow
speed and then to increase the speed.
The mixer operates at maximum speed
by pressing the pulse button.
Refer to the section "Tips on using
mixer" for reference values for setting
the speed.
0 Switch off appliance: turn speed selec-
tor left to "0" position.
0 After mixing, turn container clockwise
and remove. Then turn the cover and
remove.
Multifunction section
Tools and their application
possibilities
The following tools can be used in the
multifunction section:
• Whisking disk (fig. 1/R)
Whisking cream and egg whites, prepa-
ration of cream and light doughs.
• Metal blade (fig. 1/Q)
For chopping raw meat, chocolate,
nuts, etc.
• Plastic blade (fig. 1/P)
For kneading and blending heavy
doughs.
• Insert holder (fig. 1/O) with cutting
insert (fig. 10)
The inserts are marked by a number
(1 to 6) on the handle. The desired
insert is placed in the insert holder.
1 Fine cutter
For cutting fruit, vegetables, raw
meat or sausage (e.g. salami) etc.
in thin slices.
PG1 Potato grater
For grating potatoes.
24
3 French fries cutter
For cutting potatoes for French
fries.
4 Cheese grater
For grating hard cheese, e.g.
Parmesan etc.
5 Coarse rasp
For coarse rasping of vegetables
and fruit, etc.
6 Fine rasp
For fine rasping of vegetables,
fruit, chocolate, garlic, etc.
Preparing multifunction section
Fit safety cover (fig. 4)
The multifunction section can only be
put into operation when the mix con-
tainer is removed and the safety cover
for the mixer drive (figs. 1/T and 4) is
fitted.
0 Remove mix container as described
under "Mixer".
– The red warning lamp (fig 4/a)
flashes.
0 Place safety cover on mixer drive (mark
on mark
clockwise to the stop. The safety cover
is heard to engage. The mark
be above the warning lamp (fig. 4).
– The red warning lamp (fig. 4/a)
extinguishes.
Fitting all-purpose bowl (fig. 5)
0 Place all-purpose bowl (fig. 1/G) on
appliance (arrow
and turn counter-clockwise to the
stop. The all-purpose bowl can be
heard to engage. The two black arrows
must coincide.
Inserting spindle (fig. 7)
0 Place spindle (fig. 1/H) on spigot in
centre of all-purpose bowl.
) and turn counter-
must
on arrow )
