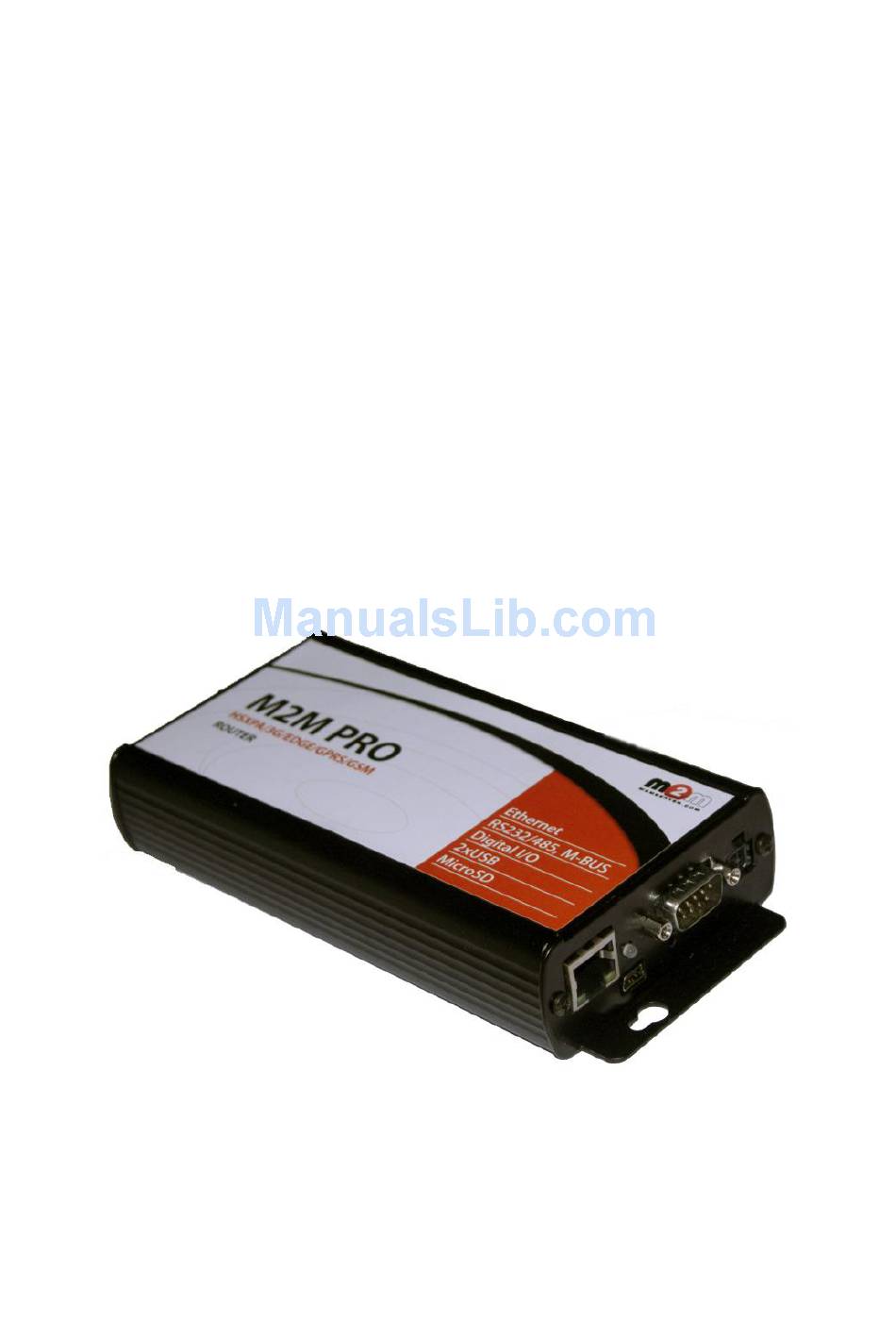

Page 1: User Manual
M2M Pro router User manual (shortened version) _____________________________________ Rev: 1.1.1 2010-10-13... - Page 2 Document specifications This documentation belongs to the M2M Pro router device which was made by WM Rendszerház Kft. User Manual includes the description of the device’s architecture, construction, interaces, functionality with the installation-steps and required configuration setup for the proper operation.
-
Page 3: Table Of Contents
Contents CHAPTER 1. INTRODUCTION ................4 Product overview ................... 4 Main features ....................5 CHAPTER 2. DEVICE CONSTRUCTION ............... 9 Internal construction ..................9 Interface options ..................12 Optional module extensions ................14 Technical reference ..................17... -
Page 4: Chapter 1. Introduction

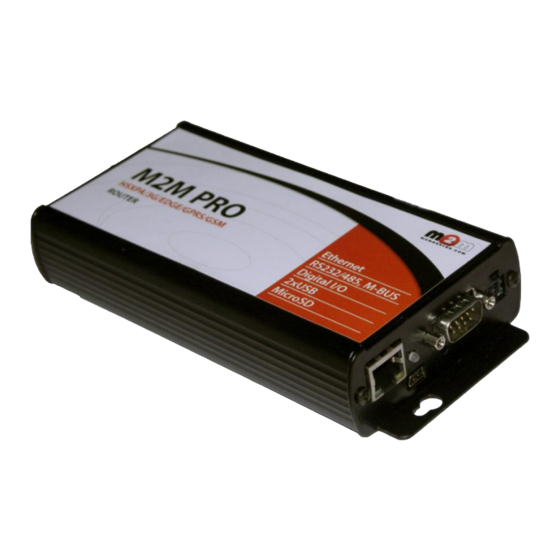

Chapter 1: Introducing Thank You for choosing the M2M Pro router device for your business. 1.1 Product overview M2M Router Pro is an advanced, programmable modem device which has numerous additional functions (hardware and software). These possibilities make the device suitable for... -
Page 5: Main Features
1.2 Main features Hardware and functional properties High-capacity, powerful AMR9 microprocessor (180 MHz clock speed, 200 MIPS) Mobile service provider- independent usage supported – You can choose the option to handle two different providers’ Mobile SIM cards at the same time (dual, paralell SIM option) ... - Page 6 GTM-380 HSO board-to-board interface module Dedicated RTC (Real Time Clock) chip, which can be configured through the WM-M2M server with the SNTP protocol – purchasing the Time service from providers jumper switch options (serial port, debug port, watchdog circuit) ...
- Page 7 SNMP register the data will paste into the PLC thourgh the Modbus TCP. Manage option at the WM-M2M® User Interface (GUI) or across the SNMP protocol Configuration at the local Web site or at the remote Web site or across the SNMP protocol ...
-
Page 8: Configuration Properties
Configuration properties Through serial/Ethernet port Remotely from the mobile network-side... -
Page 9: Chapter 2. Device Construction
Chapter 2. Device construction The router device is an industrial computer which was build in a roboust aluminium case. Includes a high-capacity, powerful ARM9-based microprocesor (180MHz clock speed), which runs a customized Linux operation system (made by ) – what loads and supervises the programms which are necessary for the proper working. - Page 10 Circuit – upper side 12 – jumper switch option (debug port/serial port) 13 - Ethernet connector extension (IEE 802.3, 1 x 10/100M Auto-Negotiation LAN/WAN RJ45 port) 14 – status LED extension (bicolor: red/green) 15 – serial port connector extension (DSUB-9 (RS232)) ...
- Page 11 6 - USB 2.0 connector extension Circuit – bottom side é Microcontroller properties é Processor: ATMEL ARM-based MCU Processor type: ARM 9 (AT91RM9200), 256-pin connector Processor clock speed: 180 MHz (200 MIPS) Processor data: 16 kbyte data cache, 16 kbyte instruction cache, write buffer, 24.4mA, 16 kbyte SRAM, 128 kbyte ROM...
-
Page 12: Interface Options
2.2 Interface options Front-side connectors 1 – 2 x USB 1.1 host connector for USB device socket 2 – Micro-SD card socket 3 - Antenna SMA connector 4 – GSM network response LEDs (colours: green, red; signal: GPRS/3G) ... - Page 13 Back-side connectors 1- 10/100 MBit/s Ethernet connector (IEE 802.3 LAN/WAN RJ45 port) 2 – Status LED (bicolor: red/green; signal: PWR/LAN/WLAN) 3 – Mini-USB 2.0 connector for mini-USB device socket 4 – Serial port I/O socket (DSUB-9 (RS232)) ...
-
Page 14: Optional Module Extensions
Your business (based on technician and cost- efficiency angles considering the local conditions). The following optional modules can be associated to the M2M Pro router device: a.) Siemens Cinterion EU3-E module - High-speed wireless network data traffic required usage (Telemetric... - Page 15 Siemens Cinterion EU3 -E (HSDPA module) features 80-pin board-to-board connection Integrate-operability module, programmeble AT Interface and standard modem device emulation High-Speed USB 2.0 (480 MBit/sec) High Speed HSDPA: 3.6 Mbps downlink/384 kbps uplink (parallel) Multimode: HSDPA/UMTS/GPRS/GSM module ...
- Page 16 CSD V.110, RLP, non-transparent (9.6 kbps) SMS (Point-to-Point MT + MO, Cell broadcast, Text /PDU) Fax (Group 3 Class 1) Software properties: Programmable: AT-Hayes, 3GPP TS 27.007 and 27.005, Cinterion Wireless Modules instruction set SIM Appl. Toolkit: SAT Release 99 TCP/IP stack ...
-
Page 17: Technical Reference
2.4 Technical reference Technical design and construction M2M-Pro dimensions: 150 x 35 x 78mm NYÁK dimensions: 147 x 74mm Modul dimensions (optional): 80-pin connector: Siemens Cinterion EU3-E: 33.9 x 44.6 x 5 mm PCI Express connector: Option GTM380: 51 x 30mm ... - Page 18 Power Consuption – Router device Primer side: 230 V Power supply range: 8-32 VDC (low voltage) Intensity (stand-by power cons.): 90 mA (offline modem state) Intensity (average power cons.): 150 mA Intensity (max. power cons..): 300 mA ...
