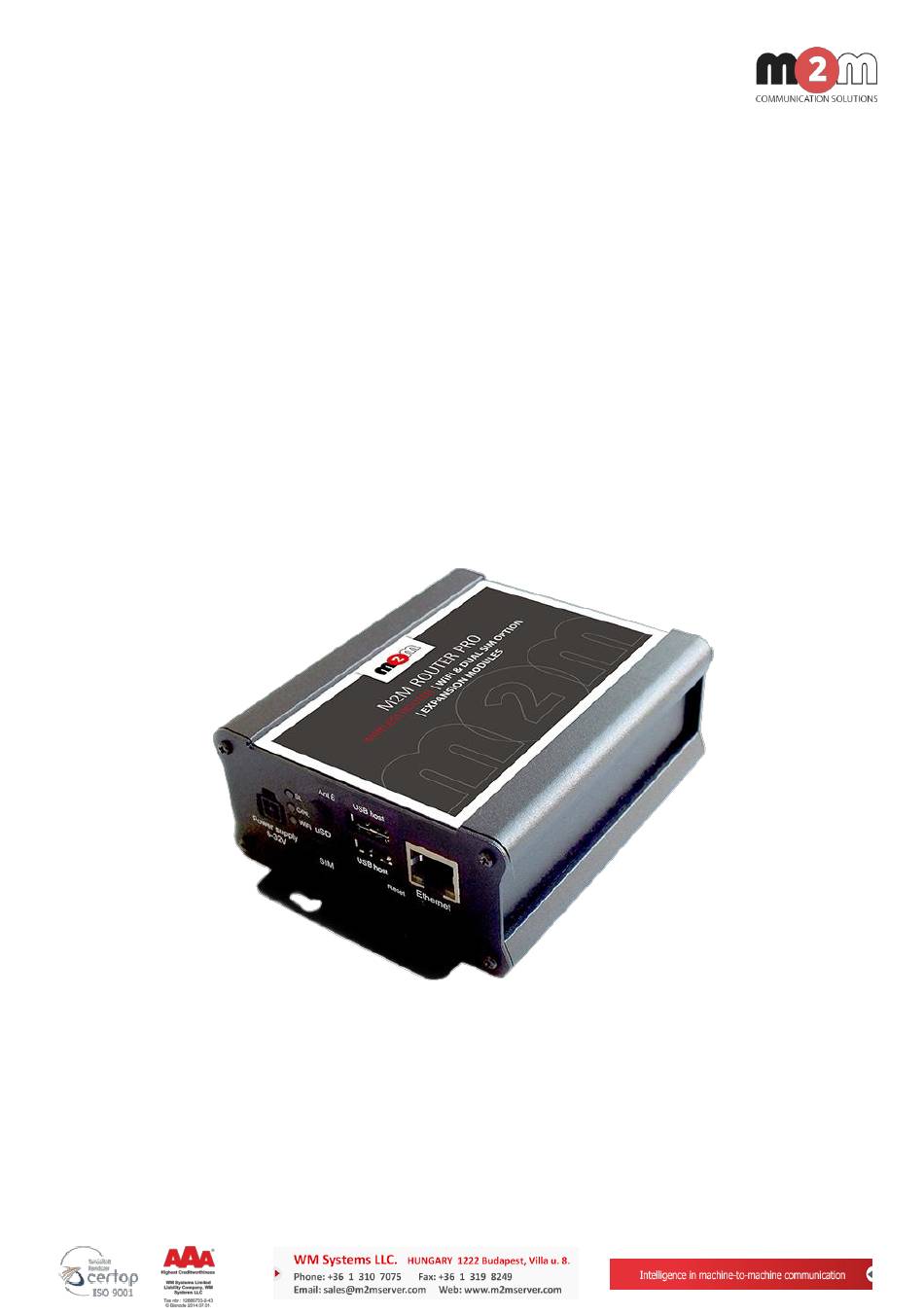

  • Page 1 M2M Router PRO ® User Manual (Extract) v1.9 _________________________________________ Rev: 1.9 2017-06-29...

  • Page 2: Starting The Router

    1. Starting the Router 1.1 Cable connection 1. Mount a 2G/3G or two LTE SMA antenna – according to the module type - to one of the Antenna titled SMA-M interfaces (in case of LTE module all the two antenna must be mounted). 2.
  • Page 3 3. When the router is booting, the upper ST LED will be flashing once per seconds with green light, which means that the system is loading the system. The system starting then takes about 2 minutes while it will be ready for usage. 4.
  • Page 4 Allow the accessing of router default address in your browser by pushing to the Special button, then allow safety exclusion into the pop-up window. Attention! When connecting to the public network, it is recommended to change the login password! The ethernet IP address can be modified after login from the OpenWrt. 1.4 Dashboard / Main page (Status overview) After login to the web interface, the startup screen appears with the current status of the router.

  • Page 5: Network Configuration

    1.6 Network configuration The list of the available network interfaces can be found at the Interfaces / Interface Overview menu item. eth0 interface meaning the Ethernet port connection ( ), the interface is the public 3g-wan, in case of LTE: eth1 wireless Internet connection (as ) –...
  • Page 6 Ask your mobile operator about the available international settings. You can define the SIM #1 APN account name, and the SIM #1 PIN code if it is necessary for the connection. Here you will found some examples for the APN settings. M2M APN (enclosed) APN name: wm2m...
  • Page 7 Public Internet APN (opened) APN name: net The LTE450 communication needs special network and an LTE capable SIM-card for the succesful connection! Automatic mode When you not set any value for the APN, the router will connect by the SIM-card automatically to the next available network’s available APN.

  • Page 8: Wifi Settings (Optional)

    1.8 WiFi settings (optional) Choose the WiFi option from the menu, then at the General Setup tab you can define a different IP address range for the IPv4 address. The WiFi feature is optiona for the router. In case of presense of the WiFi, the default mode is the AccessPoint, where clients can connect to the router.
  • Page 9 Save the settings with the Save & Apply button. The further DHCP settings can be achieved at the Network menu, at the DHCP and DNS item, General Settings tab. Further settings can be found in the detailed the User Manual document: http://www.m2mserver.com/en/products/m2m-router-pro...
