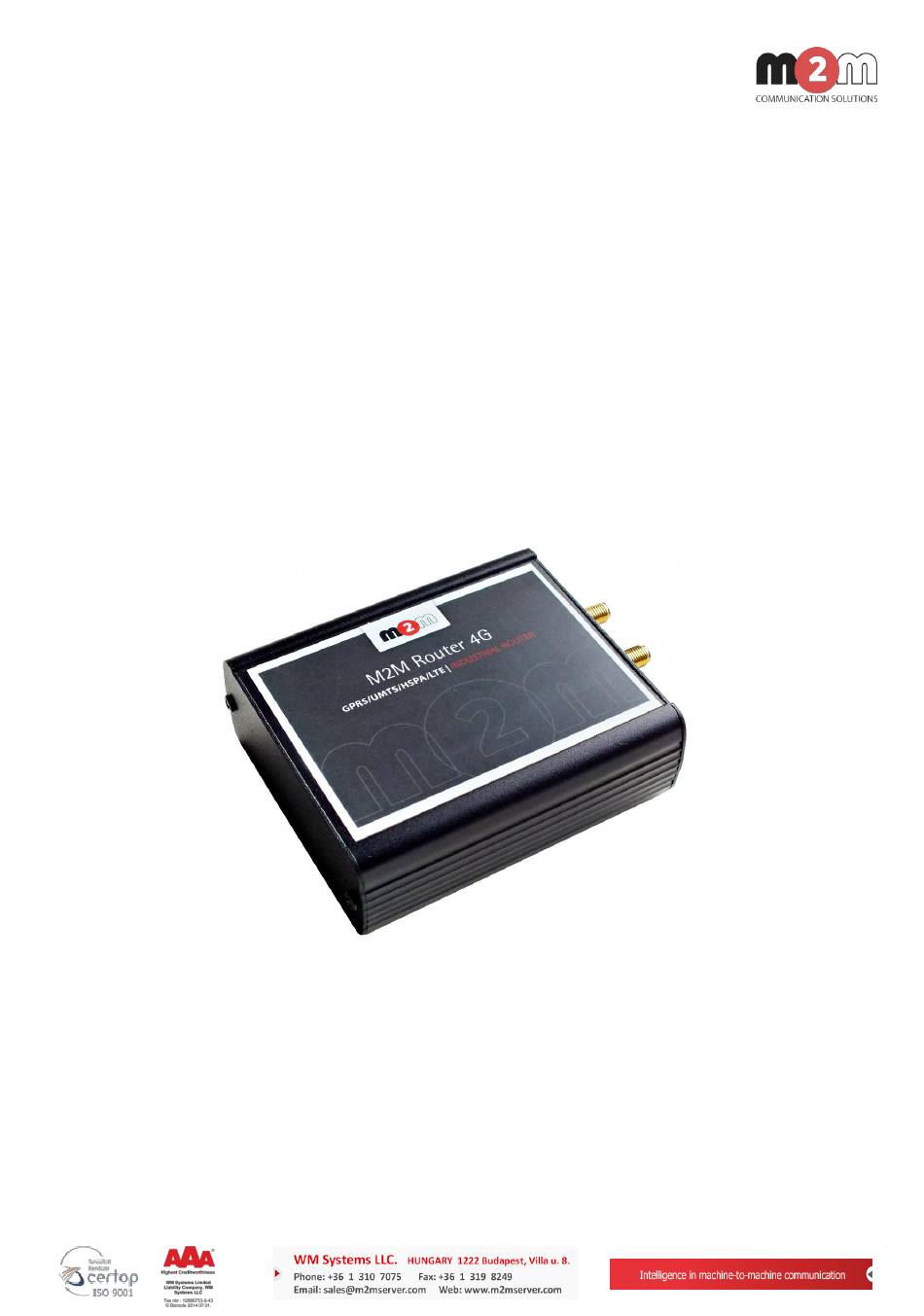

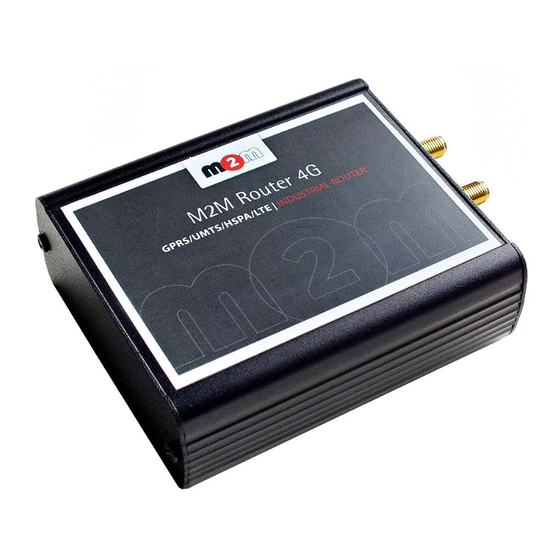

  • Page 1 M2M Router ® User Manual (Extract) v1.9.3 _________________________________________ 2018-01-31...

  • Page 2: Starting The Router

    Starting the router 1.1 Cable connection 1. Mount a 2G, 3G or LTE 450, CDMA 450 SMA antenna to the Antenna titled SMA-M interface (according module/router type). In case of 4G router, use two antennas. 2. Insert activated data SIM card to the SIM holder, placed the chip-side up and the cutted edge towards to inside and push until it sleeves.
  • Page 3 If the device was under power supply the LED1 will light continuously (which means that the system booting is in progress). 3. The system starting then takes about 1-2 minutes while it will be ready for usage. Then you can login to the web user interface. 4.
  • Page 4 2. Allow the accessing of the router default IP address in your browser by pushing to the Special button, then allow the safety exclusion into the pop-up window. Attention! When connecting to the public network, it is recommended to change the login password! The ethernet IP address can be modified after login from the OpenWrt.

  • Page 5: Network Configuration

    Network – network interface settings, DHCP, DNS, Route rules, diagnostics, firewall 1.6 CDMA menu (only for CDMA devices) The modem’s MSIN identifier can be configured here: CDMA/Set MSIN. If you give a new MSIN number, then the WAN interface will be automatically configured for the router.
  • Page 6 The network interfaces are listed at the Interface Overview. The interface means the eth0 USBLAN usb0 Ethernet port connection ( ), the is the USB-Ethernet ( ) and the 3g-wan interface is the public wireless Internet connection ( ) for the CDMA450, 2G, 3G, 4G LTE or LTE 450 modem.
  • Page 7 Setup the module for connecting to the 2G/3G/4G/LTE450 mobile network (according to the assembled module type) – at the WAN interface tab. For configuring end enabling the roaming settings – in case of international or country border usage – you may need to setup the Mobile country code and Mobile network code parameters –...

  • Page 8: Ethernet (Lan) Settings

    Define the SIM #1 APN account name, and the SIM #1 PIN code if it is necessary for the connection. Here you will found some examples for the APN settings: M2M APN (enclosed) APN name: wm2m Public Internet APN (opened)
  • Page 9 The detailed LAN interface settings can be performed by the Network Interfaces menu item at the LAN interface button. Change the default 192.168.127.1 router IPv4 address to an own IP address, regarding the current subnet. Check the IPv4 netmask to be proper for the selected and required network class which you are attempted to use.
  • Page 10 Save the settings with the Save & Apply button. The further DHCP settings can be achieved at the Network menu, at the DHCP and DNS item, General Settings tab. Further settings can be found in the detailed the User Manual document: http://www.m2mserver.com/en/products/m2m-router...
