Summary of Contents for Vizio SB2021n-G6

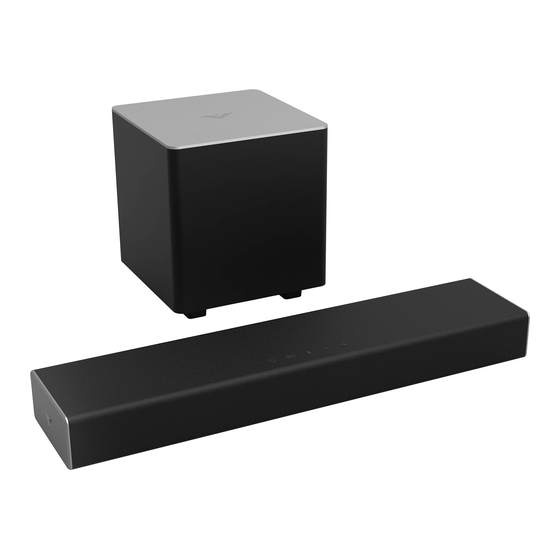

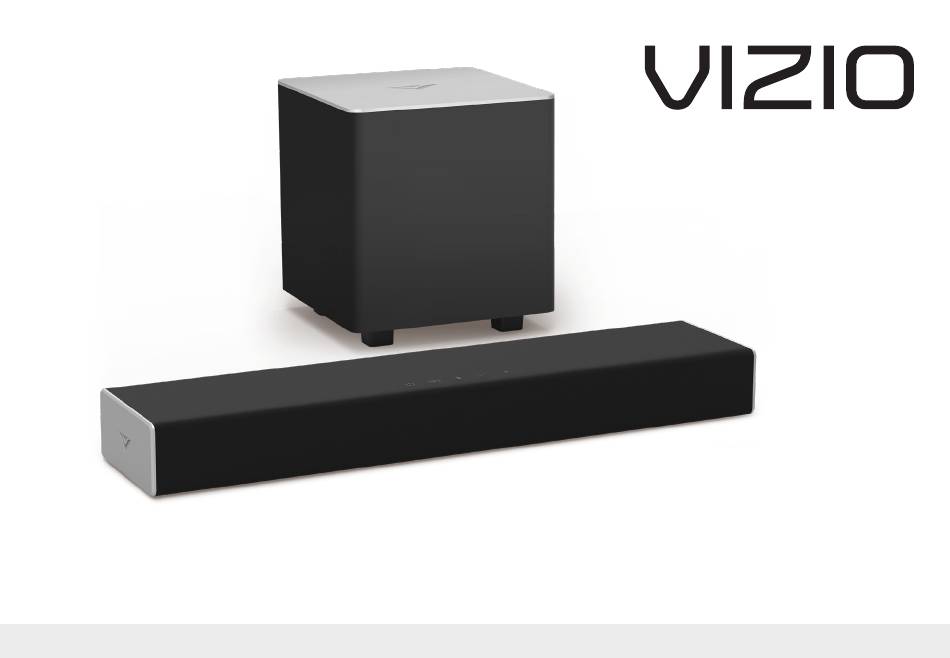

- Page 1 USER MANUAL Model: SB2021n-G6 VIZIO 20" 2.1 Channel Sound Bar with Wireless Subwoofer and Bluetooth Please read this guide before using the product.
- Page 2 IMPORTANT SAFETY INSTRUCTIONS Your Unit is designed and manufactured to operate within defined design limits, and misuse may result in electric shock or fire. To prevent your Unit from being damaged, the following rules should be observed for its installation, use, and maintenance. Please read the following safety instructions before operating your Unit. Keep these instructions in a safe place for future reference.
- Page 3 • The wall socket should be located near your Unit and be easily accessible • Keep your Unit away from moisture. Do not expose your Unit to rain or moisture. If water penetrates into your Unit, unplug the power cord and contact your dealer. Continuous use in this case may result in fire or electric shock.
-
Page 4: Table Of Contents
TABLE OF CONTENTS Package Contents ..........................5 Controls & Connections ........................6 First-Time Setup..........................9 Using the Remote .......................... 13 LED Indicators ..........................15 Programming the Sound Bar ....................... 17 Using Button Combinations ......................18 Bluetooth Pairing ........................... 19 Using Bluetooth mode ........................20 Advanced Setup .......................... -
Page 5: Package Contents
PACKAGE CONTENTS Sound Bar Wireless Subwoofer Remote Control 2 x Power Cables with 2x AAA Batteries Stereo RCA to Digital Optical Coaxial Audio User Manual 3.5mm Audio Cable Cable Cable with Adapter English - 5... -
Page 6: Controls & Connections
CONTROLS & CONNECTIONS Back of Sound Bar Digital Coaxial In Power Port USB In Analog Audio In (Stereo 3.5mm) OPTICAL Digital Optical Audio In Supports .WAV and .MP3 file format playback only. English - 6... - Page 7 Top of Sound Barr Power Press to turn sound bar on or off. Input Press to change the audio source. Volume Increase or decrease the loudness of the audio. Bluetooth Input Hold to pair. (See ‘Bluetooth Audio Pairing’ for more information.) English - 7...
- Page 8 Back of Subwoofer LED indicator Power port Power button English - 8...
-
Page 9: First-Time Setup
FIRST-TIME SETUP Back of Sound Bar CHOOSE ONE CABLE* AND CONNECT IT TO YOUR TV 3.5MM TO DIGITAL COAXIAL DIGITAL OPTICAL RCA CABLE CABLE † CABLE † GOOD BETTER BETTER * Not all TVs have the audio outputs shown above. To connect the sound bar directly to your other devices (Blu-ray player, game system, etc.) see your device’s user Optional: Use the included... - Page 10 Connect the power cable to the sound bar AC IN as shown. Plug the power cable into an electrical outlet. English - 10...
- Page 11 Back of Subwoofer Connect the power cable Plug the power cable into Flip the power switch into the ON position. to the subwoofer AC IN as an electrical outlet. shown. English - 11...
- Page 12 When needed, VIZIO recommends replacing the batteries that came with this remote with two, new Duracell ‘AAA’ alkaline batteries. Turn on your TV and sound bar. The sound bar will announce Input "Searching"...
-
Page 13: Using The Remote
USING THE REMOTE Input* Press to change the input source Bluetooth Power Switches to Bluetooth mode. Press to turn on or off Long press puts sound bar in Bluetooth pairing mode. Volume +/- Play/Pause Press to increase and Press to play or pause. decrease volume Long press will announce the current audio input. - Page 14 For the best surround sound experience, position the sound as shown. The sound bar should be close to ear level (approx. 2-3 feet off the floor). Sound bar is centered below the TV. (If your TV permits it, you can also slide the sound bar underneath the TV.) English - 14...
-
Page 15: Led Indicators
The sound bar will announce that is it "searching." It will be discoverable for 15 minutes. You can now search for the Bluetooth sound bar (VIZIO SB2021n) using your Bluetooth device. The sound bar will power Pairing The LED will blink blue when searching down if no device is found. - Page 16 Function LED/Speaker Behavior Description Press either the MOVIE or MUSIC remote button to turn on each Movie/Music equalizer setting. A high tone double beep indicates Mode Movie mode, while a low tone double Note: Movie mode is on by default. beep indicates Music mode.
-
Page 17: Programming The Sound Bar
PROGRAMMING THE SOUND BAR You can program the sound bar to accept TV remote IR commands. Function LED Behavior Description Press the Play + Volume Down buttons on the remote to put the Learn Volume sound bar into learning mode. While the sound bar is in learning The LED indicator will flash yellow when mode, press the Volume Down button on the TV remote control Down... -
Page 18: Using Button Combinations
LED will flash 3 times. Note: This will erase all settings and preferences that you have set. Enable/disable the use of a VIZIO TV remote control to power on and adjust the volume of the sound bar. To enable/disable VIZIO TV... -
Page 19: Bluetooth Pairing
Indicator on the front display panel will turn blue and start blinking. Once the device is paired, the LED Indicators will stop blinking. You can now search for the sound bar (VIZIO SB2021n) using your Bluetooth device. For more information, refer to the user Top of Sound Bar documentation that came with the device. -
Page 20: Using Bluetooth Mode
USING BLUETOOTH MODE Your sound bar supports music streaming from smartphones, tablets, and computers with Bluetooth capability. Device compatibility will vary, see your device’s documentation for more information. • Once you have paired your source device to the sound bar, as long as you stay within range of the sound bar, your device should remain paired. -
Page 21: Advanced Setup
ADVANCED SETUP Back of Sound Bar 3.5MM TO DIGITAL DIGITAL RCA CABLE OPTICAL CABLE COAXIAL CABLE USB Thumb Drive* Optional: Use the included RCA adapter to connect if needed. *Supports .WAV and.MP3 file format playback only. Tablet/MP3 Player/Laptop Network Media Player Game Console English - 21... -
Page 22: Reconnecting The Subwoofer
Reconnecting the Subwoofer The subwoofer has already been paired with the sound bar by VIZIO. However, the subwoofer may need to be re-linked to the sound bar if there is no sound coming from the subwoofer. What does pairing mean? Pairing means to wirelessly connect. - Page 23 Why register? Customized Support Get assistance quickly with your information on hand. News and Offers Take advantage of the latest news and special offers from VIZIO. Safety and Satisfaction Stay up-to-date with important product updates and notifications. English - 23...
- Page 24 Award-Winning Customer Care At Your Convenience. NEED HELP? Go to: support.vizio.com Find help with: New product setup • • Connecting your devices • Technical problems • Product updates and more Live chat support available You can also contact our support team at:...
-
Page 25: Help & Troubleshooting
HELP & TROUBLESHOOTING • Press the POWER button on the remote control or on the top of your sound bar. There is no power. • Ensure the power cord is securely connected. • Plug a different device into the electrical outlet to verify that the outlet is working correctly. •... -
Page 26: Limited Warranty
BY USING YOUR VIZIO PRODUCT YOU AGREE TO BE BOUND BY ALL THE TERMS When you return a product to a VIZIO service center, you must ship the product in its OF THIS WARRANTY. BEFORE USING YOUR VIZIO PRODUCT, PLEASE READ THIS original packaging or in packaging that affords an equal degree of protection. - Page 27 CONDUCTED SOLELY ON AN INDIVIDUAL BASIS. VIZIO AND YOU AGREE THAT informally and wish to file a formal claim against VIZIO, and if you are a resident of NO PARTY WILL HAVE THE RIGHT OR AUTHORITY FOR ANY DISPUTE TO BE...
-
Page 28: Specifications
One Optical (Toslink) General Inputs: One Digital Coaxial Audio No employee or agent of VIZIO may modify this warranty. If any term of this Bluetooth (Wireless) warranty, other than the class action waiver, is found to be unenforceable, that One USB term will be severed from this warranty and all other terms will remain in effect. -
Page 29: Legal & Compliance
LEGAL & COMPLIANCE FCC Class B Radio Interference Statement NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 30 All software is provided subject to software license agreements and you agree that you will be bound by such license agreements in addition to other applicable terms of use. By using the VIZIO products, you agree to the VIZIO Terms of Service and Privacy Policy, as well as Google’s Terms of Service and Privacy Policy.
- Page 31 Logos are registered trademark owned by Bluetooth SIG,Inc. and any use of such marks ® by VIZIO, Inc. is under license. Other trademarks and trade names are those of their respective owners. For DTS patents, see http://patents.dts.com. Manufactured under license from DTS, Inc. DTS, the Symbol, DTS and the Symbol together, and TruVolume are registered trademarks or trademarks of DTS, Inc.
- Page 32 © 2019 VIZIO INC. ALL RIGHTS RESERVED. 190726SL English - 32...
