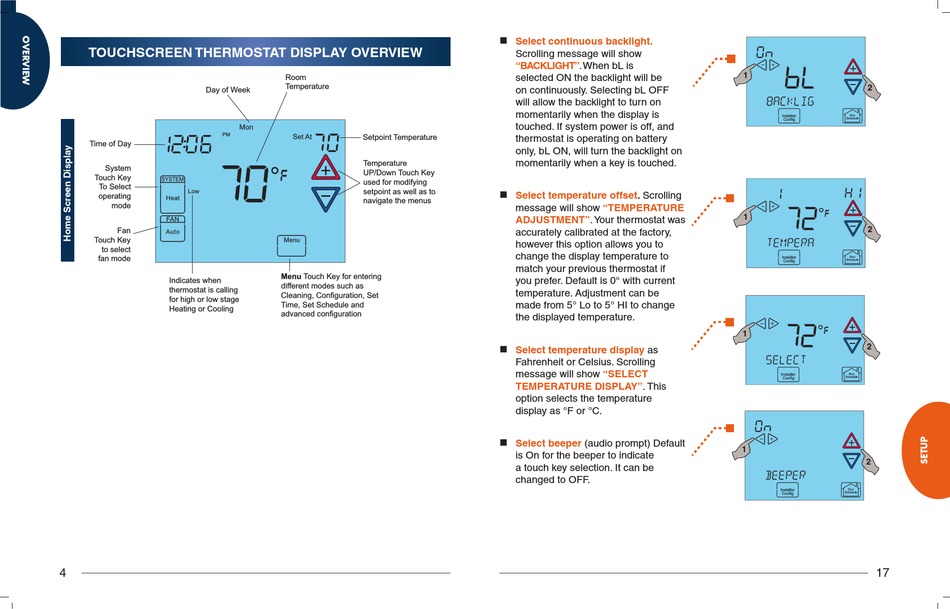

TOUCHSCREEN THERMOSTAT DISPLAY OVERVIEW

Day of Week
Time of Day
System
Touch Key
To Select
operating
mode
Fan
Touch Key
to select
fan mode
Indicates when
thermostat is calling
for high or low stage
Heating or Cooling
4
Room
Temperature
Setpoint Temperature
Temperature
UP/Down Touch Key
used for modifying
setpoint as well as to
navigate the menus
Menu Touch Key for entering
different modes such as
Cleaning, Configuration, Set
Time, Set Schedule and
advanced configuration
 Select continuous backlight.
Scrolling message will show
"BACKLIGHT". When bL is
selected ON the backlight will be
on continuously. Selecting bL OFF
will allow the backlight to turn on
momentarily when the display is
touched. If system power is off, and
thermostat is operating on battery
only, bL ON, will turn the backlight on
momentarily when a key is touched.
 Select temperature offset. Scrolling
message will show "TEMPERATURE
ADJUSTMENT". Your thermostat was
accurately calibrated at the factory,
however this option allows you to
change the display temperature to
match your previous thermostat if
you prefer. Default is 0° with current
temperature. Adjustment can be
made from 5° Lo to 5° HI to change
the displayed temperature.
 Select temperature display as
Fahrenheit or Celsius. Scrolling
message will show "SELECT
TEMPERATURE DISPLAY". This
option selects the temperature
display as °F or °C.
 Select beeper (audio prompt) Default
is On for the beeper to indicate
a touch key selection. It can be
changed to OFF.
1
2
1
2
1
2
1
2
17
