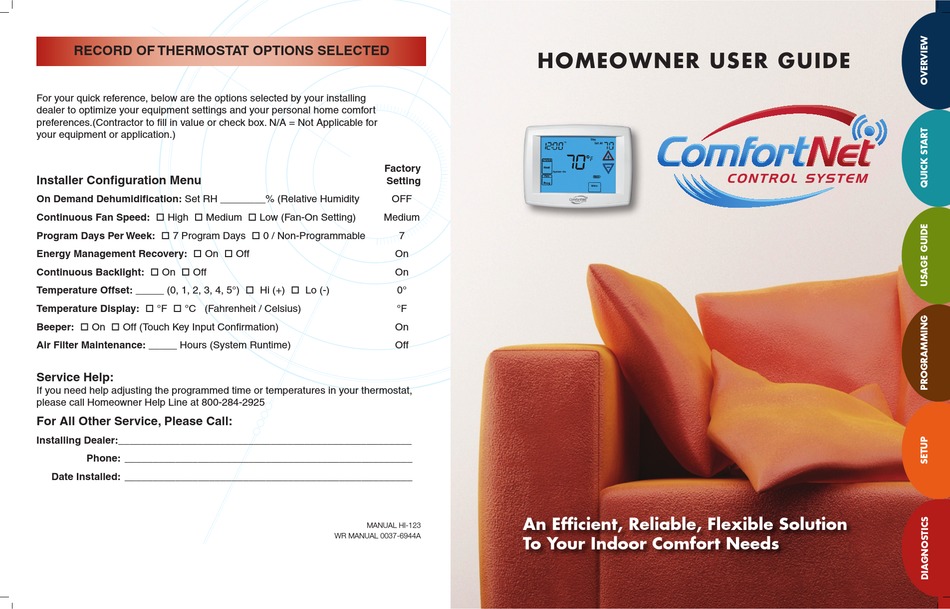

RECORD OF THERMOSTAT OPTIONS SELECTED
For your quick reference, below are the options selected by your installing
dealer to optimize your equipment settings and your personal home comfort
preferences.(Contractor to fill in value or check box. N/A = Not Applicable for
your equipment or application.)
Installer Configuration Menu
On Demand Dehumidification: Set RH ________% (Relative Humidity
Continuous Fan Speed: o High o Medium o Low (Fan-On Setting)
Program Days Per Week: o 7 Program Days o 0 / Non-Programmable
Energy Management Recovery: o On o Off
Continuous Backlight: o On o Off
Temperature Offset: _____ (0, 1, 2, 3, 4, 5°) o Hi (+) o Lo (-)
Temperature Display: o °F o °C (Fahrenheit / Celsius)
Beeper: o On o Off (Touch Key Input Confirmation)
Air Filter Maintenance: _____ Hours (System Runtime)
Service Help:
If you need help adjusting the programmed time or temperatures in your thermostat,
please call Homeowner Help Line at 800-284-2925
For All Other Service, Please Call:
Installing Dealer:____________________________________________________
Phone: ___________________________________________________
Date Installed: ___________________________________________________
Factory
Setting
OFF
Medium
7
On
On
0°
°F
On
Off
MANUAL HI-123
WR MANUAL 0037-6944A
HOMEOWNER USER GUIDE
An Efficient, Reliable, Flexible Solution
To Your Indoor Comfort Needs
Advertisement
Table of Contents
Related Manuals for ComfortNET Touchscreen Thermostat System
Summary of Contents for ComfortNET Touchscreen Thermostat System
- Page 1 RECORD OF THERMOSTAT OPTIONS SELECTED HOMEOWNER USER GUIDE For your quick reference, below are the options selected by your installing dealer to optimize your equipment settings and your personal home comfort preferences.(Contractor to fill in value or check box. N/A = Not Applicable for your equipment or application.) Factory Installer Configuration Menu...
-
Page 2: Table Of Contents
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6 The ComfortNET system continuously Set Current Time and Day. . . . . . . . . . . . . . . . . . . . . . . . . . . 6... -

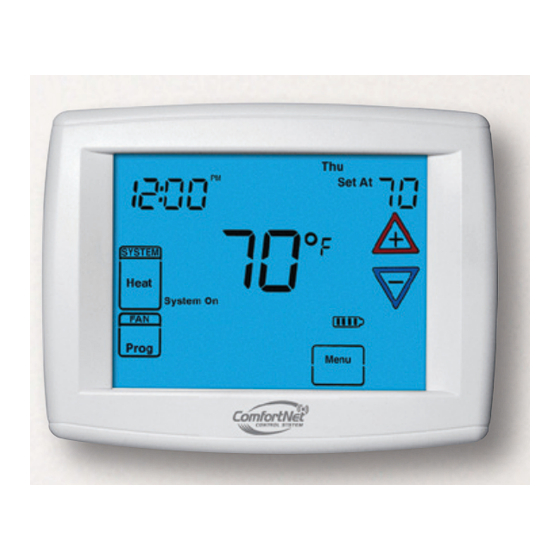

Page 3: Touchscreen Thermostat Display Overview
Select continuous backlight. TOUCHSCREEN THERMOSTAT DISPLAY OVERVIEW Scrolling message will show “BACKLIGHT”. When bL is selected ON the backlight will be Room Temperature on continuously. Selecting bL OFF Day of Week will allow the backlight to turn on momentarily when the display is touched. If system power is off, and Setpoint Temperature thermostat is operating on battery... -
Page 4: Battery Location
Select air filter maintenance Battery Location reminder. Scrolling message will show “AIR FILTER 2 “AA” alkaline batteries are included MAINTENANCE”. Default is OFF. in the thermostat to keep time during a It can be changed to a setting from power outage. They are also required for 25 to 1975 hours in increments of armchair programming.... -
Page 5: Quick Start Guide
Select continuous FAN speed. QUICK START GUIDE Default is Medium. It can be set to High, Medium or Low. In High, the fan will operate at 70% of the highest fan speed when the FAN key is in the ON Set Current Time and Day position. In Medium will be 50% for the highest fan speed and Low the... -
Page 6: Choose The System
Choose the System Mode (Cool, Off, Heat, Em, Auto) SETTING UP YOUR THERMOSTAT OPTIONS SYSTEM Touch the key to select: The Thermostat has comfort and performance options that can be selected and Off: Heating and Cooling systems adjusted. These options are in the Thermostat Options Configuration Menu. On the are off. Home Screen Display, touch the Menu... -
Page 7: Using Your Thermostat
Programmable Fan 5. Touch key to adjust the start USING YOUR THERMOSTAT time for period. The time will change in The indoor fan/blower can be selected 15 minute increments. to turn on and off with the cycle of the System Operation Auto or Prog. 6. Touch... - Page 8 5. If you wish to copy this same program 3. Touch the Advance Day key until the Choose the FAN Setting Copy day you wish to copy to is flashing and into other days, touch the (Auto or On) the day you are copying is on. The and repeat steps 3 and 4. “COPY scrolling message will show...
-
Page 9: Programming Your Thermostat
Maintenance Reminder Message PROGRAMMING YOUR THERMOSTAT A reminder will display in the scrolling message area when it is time for Programming Tip: Planning Your Program – accessory maintenance if selected in the Copy Program Important Thermostat Options Configuration Menu. When a reminder appears, it can be When programming your thermostat, you This thermostat is set up for 7 cleared by touching the... -
Page 10: Control Panel
Your ComfortNET Touchscreen Thermostat constantly communicates with your indoor and outdoor heating and cooling components to reliably and efficiently provide you with the utmost in home comfort and peace of mind. This system is so smart it even lets you know when a service call is needed to maintain the performance of your home’s heating and cooling investment....
