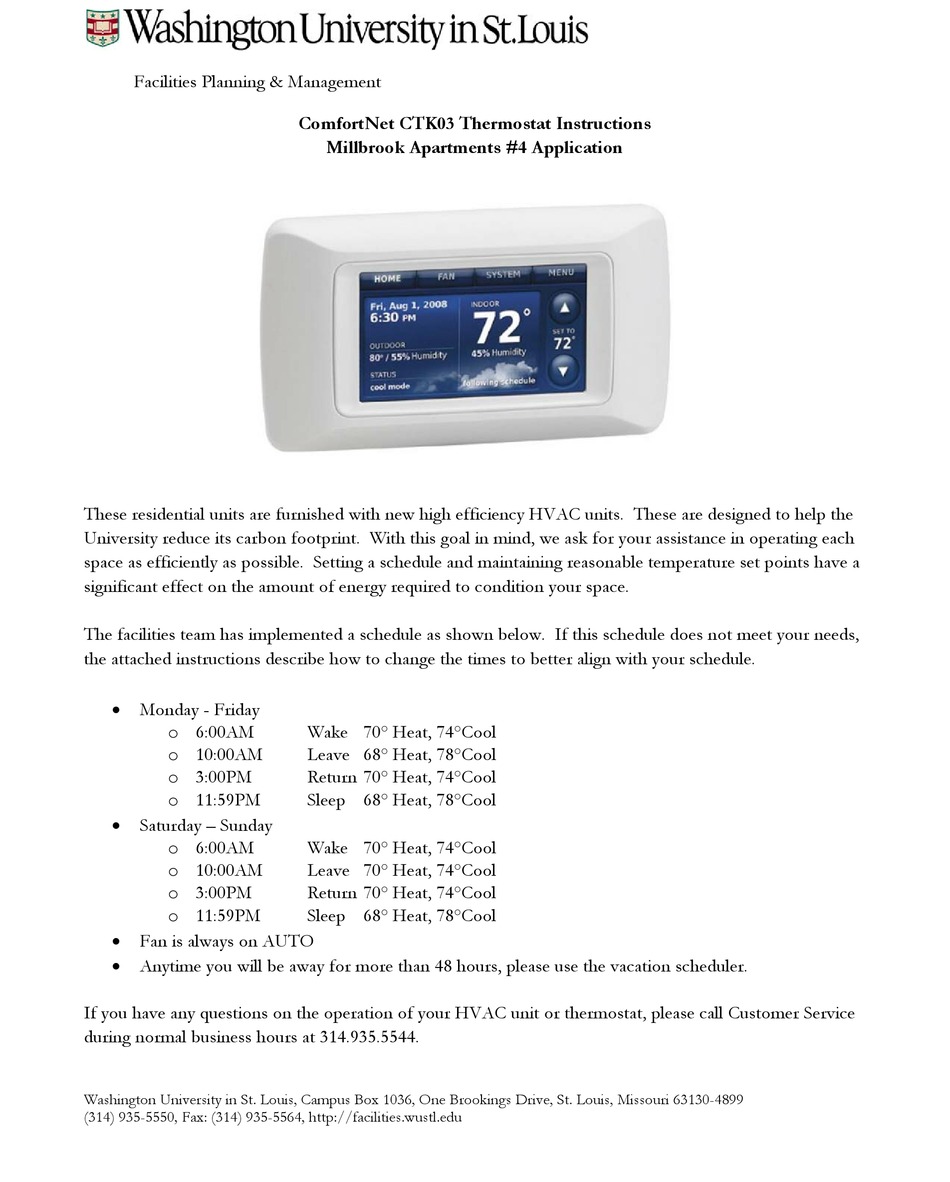

Facilities Planning & Management


These residential units are furnished with new high efficiency HVAC units. These are designed to help the
University reduce its carbon footprint. With this goal in mind, we ask for your assistance in operating each
space as efficiently as possible. Setting a schedule and maintaining reasonable temperature set points have a
significant effect on the amount of energy required to condition your space.
The facilities team has implemented a schedule as shown below. If this schedule does not meet your needs,
the attached instructions describe how to change the times to better align with your schedule.
 Monday - Friday
o 6:00AM
o 10:00AM
o 3:00PM
o 11:59PM
 Saturday – Sunday
o 6:00AM
o 10:00AM
o 3:00PM
o 11:59PM
 Fan is always on AUTO
 Anytime you will be away for more than 48 hours, please use the vacation scheduler.
If you have any questions on the operation of your HVAC unit or thermostat, please call Customer Service
during normal business hours at 314.935.5544.
Washington University in St. Louis, Campus Box 1036, One Brookings Drive, St. Louis, Missouri 63130-4899
(314) 935-5550, Fax: (314) 935-5564, http://facilities.wustl.edu
ComfortNet CTK03 Thermostat Instructions
Millbrook Apartments #4 Application
Wake 70° Heat, 74°Cool
Leave 68° Heat, 78°Cool
Return 70° Heat, 74°Cool
Sleep 68° Heat, 78°Cool
Wake 70° Heat, 74°Cool
Leave 70° Heat, 74°Cool
Return 70° Heat, 74°Cool
Sleep 68° Heat, 78°Cool


Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CTK03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ComfortNET CTK03

Summary of Contents for ComfortNET CTK03

  • Page 1 Facilities Planning & Management                 ComfortNet CTK03 Thermostat Instructions Millbrook Apartments #4 Application These residential units are furnished with new high efficiency HVAC units. These are designed to help the University reduce its carbon footprint. With this goal in mind, we ask for your assistance in operating each space as efficiently as possible.

  • Page 2: Table Of Contents

    5. Set humidification, dehumidification and ventilation ....See pages 16-19 ONE-TOUCH TEMP CONTROL: You can override the program schedule at any time, and manually adjust the temperature (see pages 9-10). Need Help? ComfortNet™ CTK03 Communicating Thermostat For assistance please call toll-free: (888) 593-9988 Touch-screen Thermostat Read and save these instructions.

  • Page 3: Quick Reference

    Operating Manual ComfortNet™ Communicating Thermostat Quick reference: commercial use Date/time settings Select system Display Display menu Press date/time display To set the date or time, press the date/ type (see page 6) home screen options (see (see page 5) time display, then select SET TIME or SET pages 11-24) DATE.

  • Page 4: Energy Saver Settings

    Operating Manual ComfortNet™ Communicating Thermostat Energy Saver settings for maximum cost savings To adjust program schedules Press MENU, then CREATE/EDIT These default Energy Saver settings can reduce expenses by as much as 33%. (See Press MENU SCHEDULE to display options: next page to customize each time period.)
  • Page 5 Operating Manual ComfortNet™ Communicating Thermostat System status information Menu: Vacation scheduling (residential use) Press MENU, then select EQUIPMENT Press Press This feature lets you conserve energy MENU MENU STATUS. while away, and restores a comfortable MENU MENU temperature just before you return to...
  • Page 6 Operating Manual ComfortNet™ Communicating Thermostat Menu: Humidification Initiate Occupancy mode (commercial use) This feature keeps temperature at an Press Move the slider bar to the humidity level MENU energy-saving level until the PRESS TO you prefer, then press DONE. START OCCUPANCY button is pressed.

  • Page 7: Temporary Schedule Changes

    Operating Manual ComfortNet™ Communicating Thermostat Menu: Ventilation Menu: Preferences Press SETTING to set operating mode: Press Press At this screen you can view or change MENU MENU the following options: Auto: Ventilation (fan) runs as pro- MENU MENU Reminders to change filters grammed by the installer.

  • Page 8: Security Settings

    Adaptive Intelligent Recovery (residential use only) These options should be changed only by professionally qualified techni- Over time, the ComfortNetTM CTK03 communicating thermostat “learns” how long MENU cians. To avoid disabling or damaging it takes your system to provide the temperature you want. It turns on the heating or...

  • Page 9: Battery Replacement

    Control. sor on the Home screen. Wireless Indoor Sensor If an indoor sensor is installed, your ComfortNetTM CTK03 commu- nicating thermostat can monitor the temperature and humidity at that location and adjust the system to maintain comfort there. With multiple sensors, the thermostat can average temperature readings from each, to optimize comfort throughout your home.

  • Page 10: In Case Of Difficulty

    Wireless Vent and Filter Boost Remote The Honeywell RedLINK Internet Gateway gives you This handy device mounts anywhere in your home remote access to your ComfortNetTM CTK03 com- (typically bathroom or kitchen) for convenient on municating thermostat via the Internet or from your demand ventilation.
  • Page 11 Operating Manual ComfortNet™ Communicating Thermostat Regulatory information Goodman is not responsible for: FCC Compliance Statement (Part 15.19) (USA only) 1. Damage or repairs required as a consequence of faulty installation or application. 2. Damage as a result of floods, fires, winds, lightning, accidents, corrosive atmosphere or other conditions beyond the control of Goodman.
