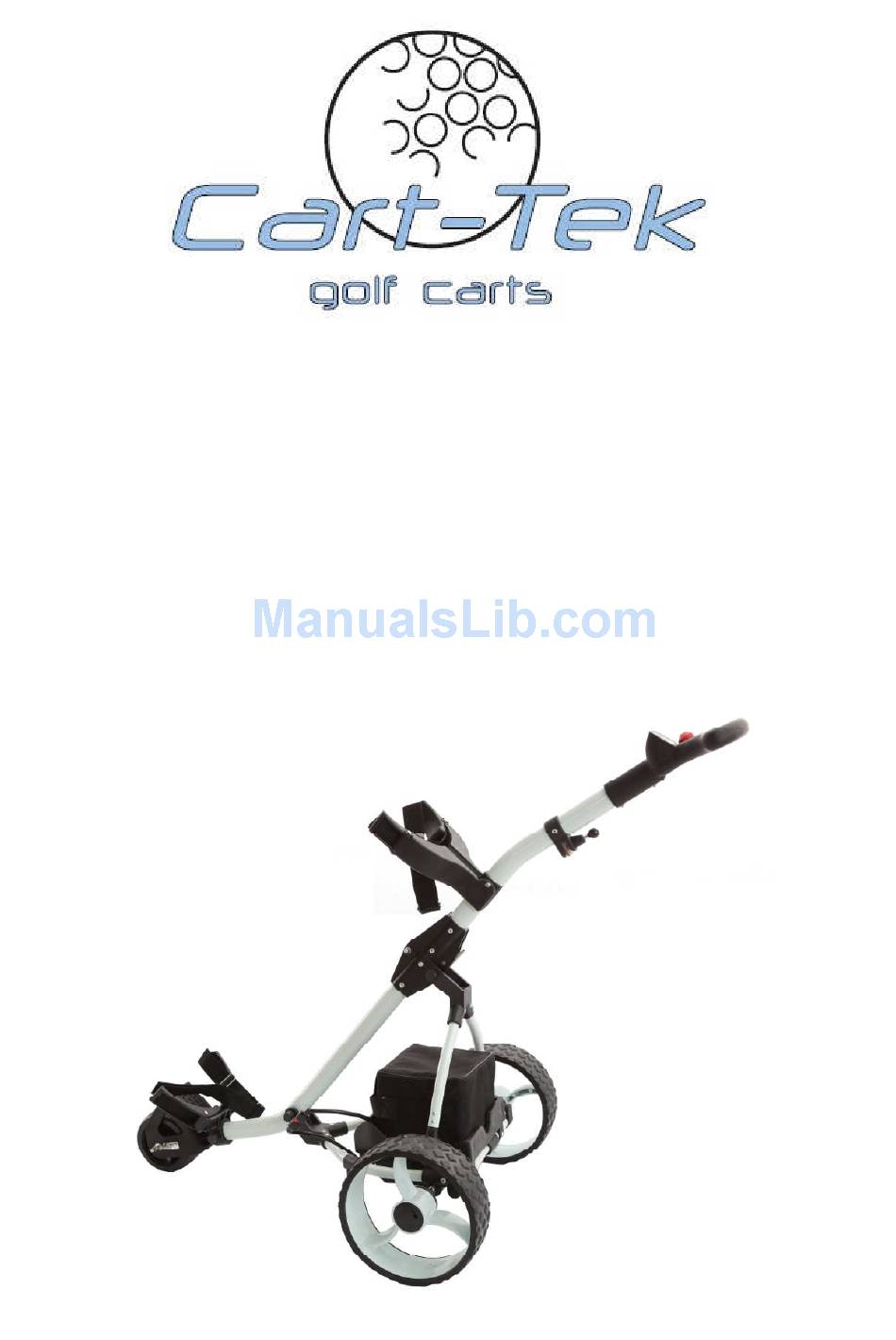

- Page 1 GRX-860 Electric Golf Cart User Manual...
- Page 2 Electric Golf Cart User Manual Index Introduction Identification – main components Assembly Handle and LED display Operating functions and modes Drive wheels Use and maintenance Troubleshooting Safety Contact details Page 1 of 15...
- Page 3 Electric Golf Cart User Manual 1 Introduction Thank you for purchasing this golf cart. Please read this manual carefully before use. After unpacking please keep the carton and all internal sections in safe storage. In the unlikely possibility that you need to return the whole unit due to a defective component, you will need to repack the unit in the original manner to ensure safe and secure transit.
- Page 4 Electric Golf Cart User Manual Main component identification On/off switch Battery Front wheel assembly Handle Drive wheel Bag support and strap Up bag support Wheel hub Battery support Central hinge lock Motor/Gearbox Page 3 of 15...
- Page 5 Electric Golf Cart User Manual Assembly Take cart and all of component parts out of carton Standing at the handle end of the cart, put the wheel marked “L” on the left end of the axle and the wheel marked “R”on the right end of axle.
- Page 6 Electric Golf Cart User Manual Put the battery into the battery case. Connect the battery plug Flip the upper bag support down. This is how the cart should look when fully assembled. Page 5 of 15...
- Page 7 Electric Golf Cart User Manual Operate your cart Digital display Command & Control Button Mode button Press & hold the centre knob for 3 seconds and then release to switch on your cart. Display & Operating modes Yards/mph or ‘Mode’ switch Meters/kph &...
- Page 8 Electric Golf Cart User Manual Changing Modes To change the Mode, press the right(Mode) button. The display will cycle through the modes. Change the Display/Measurement units To change the display units from yards/mph to meters/kph, press the left button. Starting your cart When switched on, your cart will start in the last Mode you used.
- Page 9 Electric Golf Cart User Manual when going uphill and thus maintain a constant speed. Please be aware that on steep downhill slopes your cart will Not slow down due to freewheel function and gravity! Please keep control of your cart when going downhill. The cart may slow down on steep slopes due to the gearing.
- Page 10 Electric Golf Cart User Manual your cart by briefly pressing the Command button, the counter will stop and then resume counting when you move forward again. If you move out of Mode 2, or switch off your cart, the Indicator will revert to ’000’. If you want to calculate the distance to the green, set Mode 2 at, say, the 150yd marker and measure the distance to your ball.
- Page 11 Electric Golf Cart User Manual A bump in the grand may know your cart off course and send your cart into a hazard or a cart- please take care. Finally, do not send your cart to stop on a down slope. Your cart has no brakes and has a ‘freewheel’...
-
Page 12: Charging The Battery
Electric Golf Cart User Manual Diagnostics The Diagnostics Indicator will show flashing arrows and the ‘OK’ symbol when your cart is running normally. 6. Charging the battery. You must give your battery an initial ‘commissioning’ charge before using it for the first time. - Page 13 Electric Golf Cart User Manual DO NOT leave the charger connected to the mains if the battery is not attached. This will shorten the life of the charger. DO NOT leave the charger connected to the battery if it is not connected to the mains. This will discharge your battery.
- Page 14 Electric Golf Cart User Manual Charger 1) Do not attempt to open the case of the charger 2) Only use the charger to charge the battery of this golf cart 3) Operate only indoors – in clean dry conditions 4) Immediately remove from the mains electrical supply in the event of the charger overheating (over 70 deg C) Cart...
- Page 15 Electric Golf Cart User Manual Troubleshooting The following is general information for the customer. If you have a persistent problem always call the service department. It will always help if you can tell them the sequence and condition of the LED lights. Indication Possible cause With the ON/OFF switch turned ON...
- Page 16 Waste electrical products must not be disposed of with the household waste. This tool should be taken to your local recycling centre for safe treatment 10． ． ． ． Contact details: http://www.carttek.com Cart-Tek Golf Carts Bend, Oregon 866-356-2278 email: carttek@mac.com...
