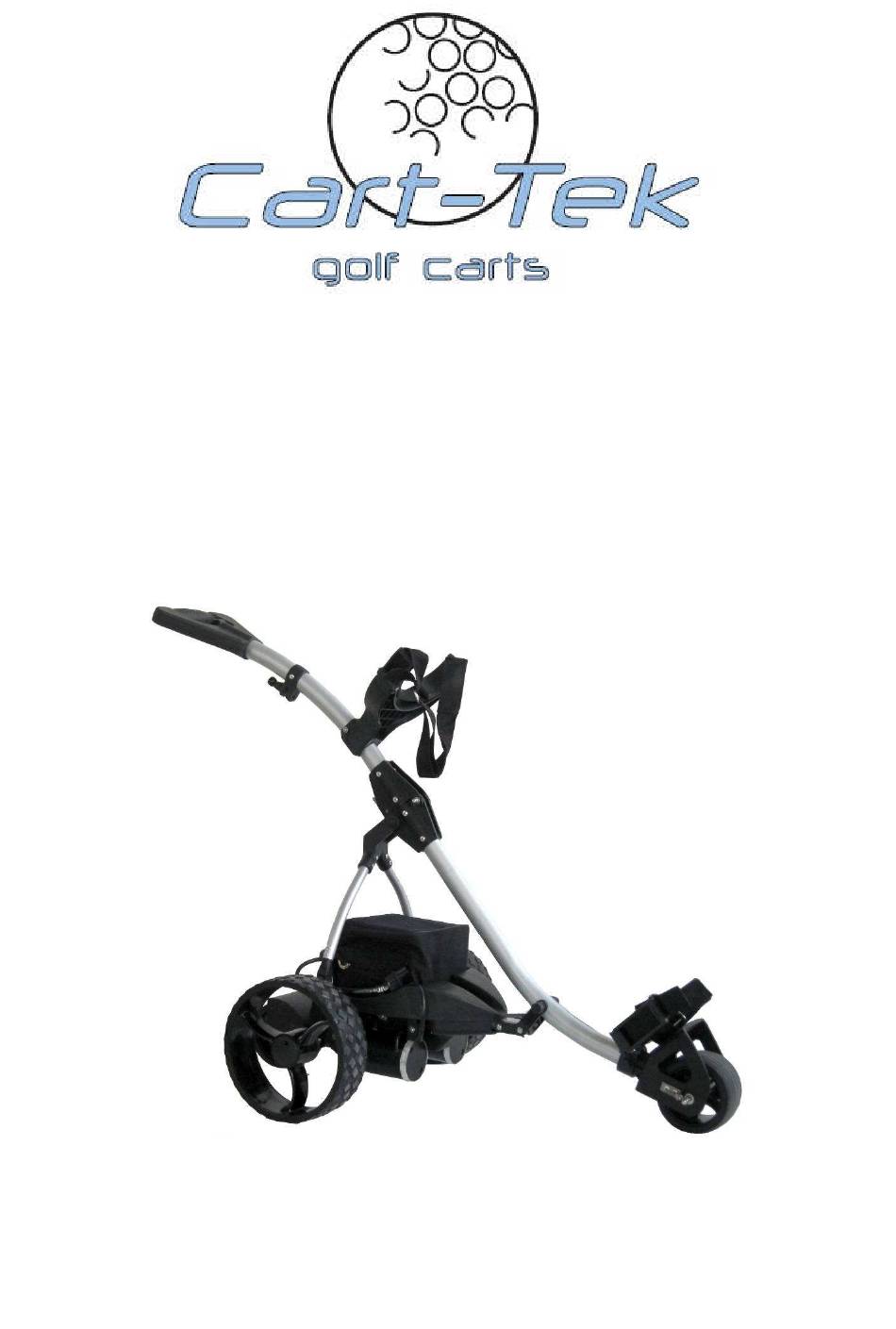

- Page 1 GRX-1155R Remote Control Golf Cart User Manual...
- Page 2 Remote Control Golf Cart User Manual Index Introduction Identification – main components Assembly Operating your cart. Remote control Operation Charging the battery Drive wheels Use and maintenance Troubleshooting Safety Contact details Page 1 of 16...
- Page 3 Remote Control Golf Cart User Manual 1 Introduction Thank you for purchasing this golf cart. Please read this manual carefully before use. After unpacking please keep the carton and all internal sections in safe storage. In the unlikely possibility that you need to return the whole unit due to a defective component, you will need to repack the unit in the original manner to ensure safe and secure transit.
- Page 4 Remote Control Golf Cart User Manual 2 Main component identification Manual speed control Battery Front wheel assembly Handle LED Drive wheel Upper bag support holder Cart lock device Battery tray Lower Bag holder strap Upper bag support holder Stabilizer wheel Upper Bag holder strap Hinge Motor/Gearbox...
- Page 5 Remote Control Golf Cart User Manual Assembly Take cart and all of component parts out of carton Slide and hold the knob on the center hub cap and push the wheel fully on to the axle Pull spring bolt then install support wheel Page 4 of 16...
- Page 6 Remote Control Golf Cart User Manual Pull the lock device and then raise the frame support(wishbone) into the upright position Lift the main frame upwards to meet the frame support. Engage the slots in the hinge with the metal bar on the frame support. Page 5 of 16...
- Page 7 Remote Control Golf Cart User Manual Lift the upper handle frame up and over the central locking hinge. Depress the metal catch and ensure that the hinge is locked in position around the frame support bar. Ensure that the locking catch is fully engaged by pulling the upper part of the catch outwards if necessary.
- Page 8 Remote Control Golf Cart User Manual Put the battery into the battery case. Connect the battery plug Page 7 of 16...
-
Page 9: Operating Your Cart
Remote Control Golf Cart User Manual 4. Operating your cart. To switch the cart on, turn the manual speed control knob away from you until a small click is heard. The LED on the handle will flash briefly to indicate that the cart has power. Turn the speed control progressively forward to increase speed. -
Page 10: Remote Control Operation
Remote Control Golf Cart User Manual 5. Remote control Operation. Once the cart has been turned on manually (see above) you can control the speed and direction by using the Remote Control. To initiate remote control, switch on the transmitter, turn the cart on manually and then press a button on the remote control within 3 seconds. - Page 11 Remote Control Golf Cart User Manual Press the “RIGHT” button to turn the cart to the right. Press the “LEFT” button to turn the cart to the left. Press the “STOP” button to stop the cart .You must stop the cart before switching from forward to reverse direction or vice versa.
-
Page 12: Charging The Battery
Remote Control Golf Cart User Manual Having completed this process pressing the save button will save the chosen settings Pressing the ADJUST button and then pressing the SAVE button, without altering either direction button will program the same power to both wheels. Using the Hand-held Remote Control Transmitter Never store the transmitter in a pocket with metal or sharp objects, or loose change. - Page 13 Remote Control Golf Cart User Manual Always start every round with a fully charged battery. Charge your battery as soon as possible after every round (certainly within 24 hours) even if you have played only a few holes. This will maximize the life of your battery. To charge your battery, ensure your charger is not connected to the mains and connect it to the battery.
-
Page 14: Drive Wheels
Remote Control Golf Cart User Manual plank of wood. 7. Drive wheels To attach the wheels, push the black button inwards and then slide the wheel on as far as possible. It will engage into the slotted groove on the axle, and the hub to the drive-coupling. Once in the place, release the button and pull the wheel outwards slightly to lock in place. - Page 15 Remote Control Golf Cart User Manual 2) Keep the battery surface clean, and check underneath the battery cover to make sure that no dirt or water has accumulated inside of it. 3) Check the battery connections – underneath the small plastic covers – also the fuse - for any signs of corrosion or bad connection.
-
Page 16: Troubleshooting
Remote Control Golf Cart User Manual 9. Trouble shooting The following is general information for the customer. If you have a persistent problem always call the service department. It will always help if you can tell them the sequence and condition of the LED light. - Page 17 Waste electrical products must not be disposed of with the household waste. These should be taken to your local recycling centre for safe treatment 11． ． ． ． Contact details: http://www.carttek.com Cart-Tek Golf Carts Bend, Oregon 866-356-2278 email: carttek@mac.com Page 16 of 16...
