American Standard Bathing Pool with Integral Apron 2083.102 Features & Dimensions

Standard Collection
with INTEGRAL APRON

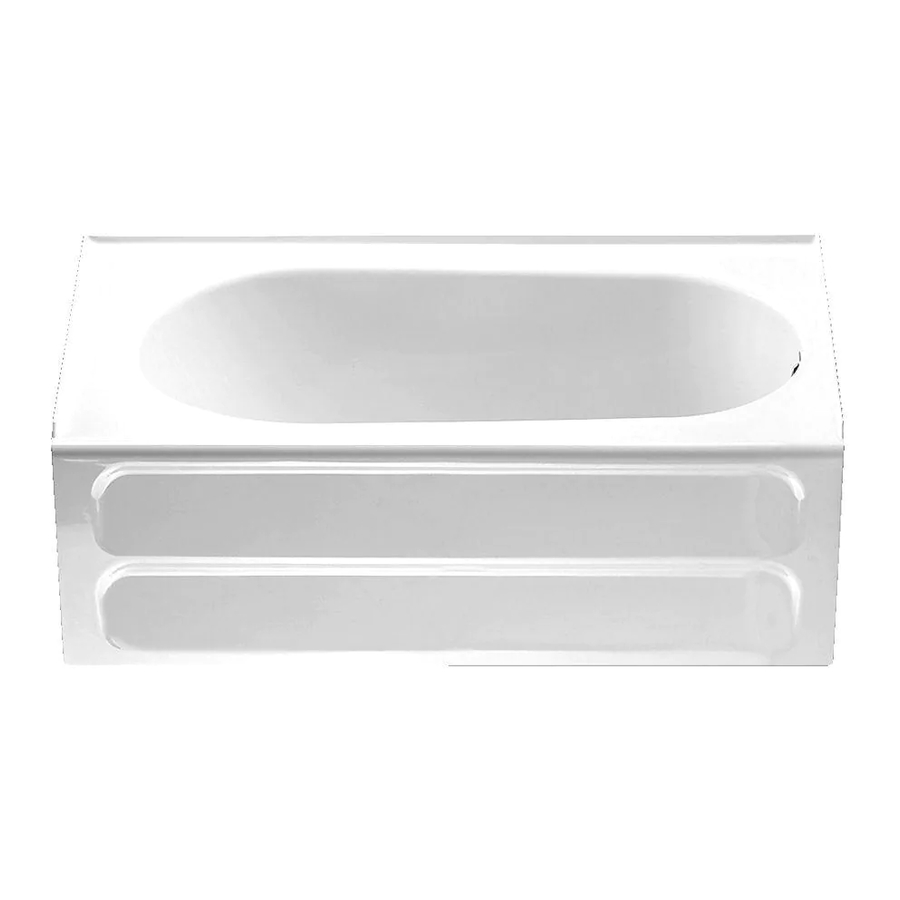

❏ 2083.102 Bathing Pool, Right Hand Outlet
❏ 2083.202 Bathing Pool, Left Hand Outlet
Product Features:
• Acrylic with fiberglass reinforcement
• Integral apron design
• Integral three-sided, tiling/water retention flange
• Generous back rest
• End drain outlet
• Design coordinated to the Standard Collection
of accessories, faucets and fixtures
Nominal Dimensions:
1524 x 813 x 508mm
(60" x 32" x 20")
Compliance Certifications -
Meets or Exceeds the Following Specifications:
• Underwriters Laboratories - Hydromassage
Bathtubs UL 1795
• ASME A112.19.7M for Whirlpool Appliances
• ANSI Z124.1 for Plastic Bathtubs
• ASTM E162 for Flammability
• NFPA 258 for Smoke Density
SEE REVERSE FOR PRODUCT DIMENSIONS
AND SPECIFICATIONS
© 2008 AS America Inc.
® BATHING POOL
Standard Collection
To Be Specified - Required:
❏ Color: (White only)
❏ Bath Filler*: (specify finish)
❏ Drain: 1501.170 (specify Chrome or Satin)
To Be Specified - Optional:
❏ Bath Caddie: 9533.100 (in Chrome only)
For color/finish availability and other faucet choices, please
see the Product Selector and Pricing Guide.
H101
BATHING POOL
HIGH GLOSS
Revised 12/99
®
