Polygroup GROUND RECTANGULAR QUICK SET Owner's Manual page 5

(Horizontal Beams) into the sleeve (making certain you work in a clockwise direction around the pool with
all swedged parts pointing clockwise) see Fig. 1 and refer to the "View of All Frame Assembly Parts" shown
on page 5.
5. Connect the (Horizontal Beams) together pushing the button in as you insert one beam into the other beams end.
Look through the locking hole in the beam as you join them, slightly rotate the beams until the button aligns with
the hole and pops up, locking that beams end into the other beams end. Repeat this procedure for the remaining
(Horizontal Beams) making certain the holes in the beams align with the openings in the pool sleeve Fig. 1 these
holes are used for the U-Shape Pipe (end) and (side) supports. Next install the corner pieces (again working in a
clockwise direction with swedged ends pointing clockwise), slide them together and repeat this procedure for
all corners, on the last corner it might be necessary to lift the final joining connection at and angle to allow the
pipes to fit into each other slowly lowering the ends flat again then sliding them together until it fits in complete-
ly, this step may require two people. Now double check all (Horizontal Beam) and (Corner Piece) connections at
this time.
NOTE
:
No O-Shaped
Springs used in any
corner connections
Horizontal Beams
(LONG)
Sleeve
U-Shape pipe

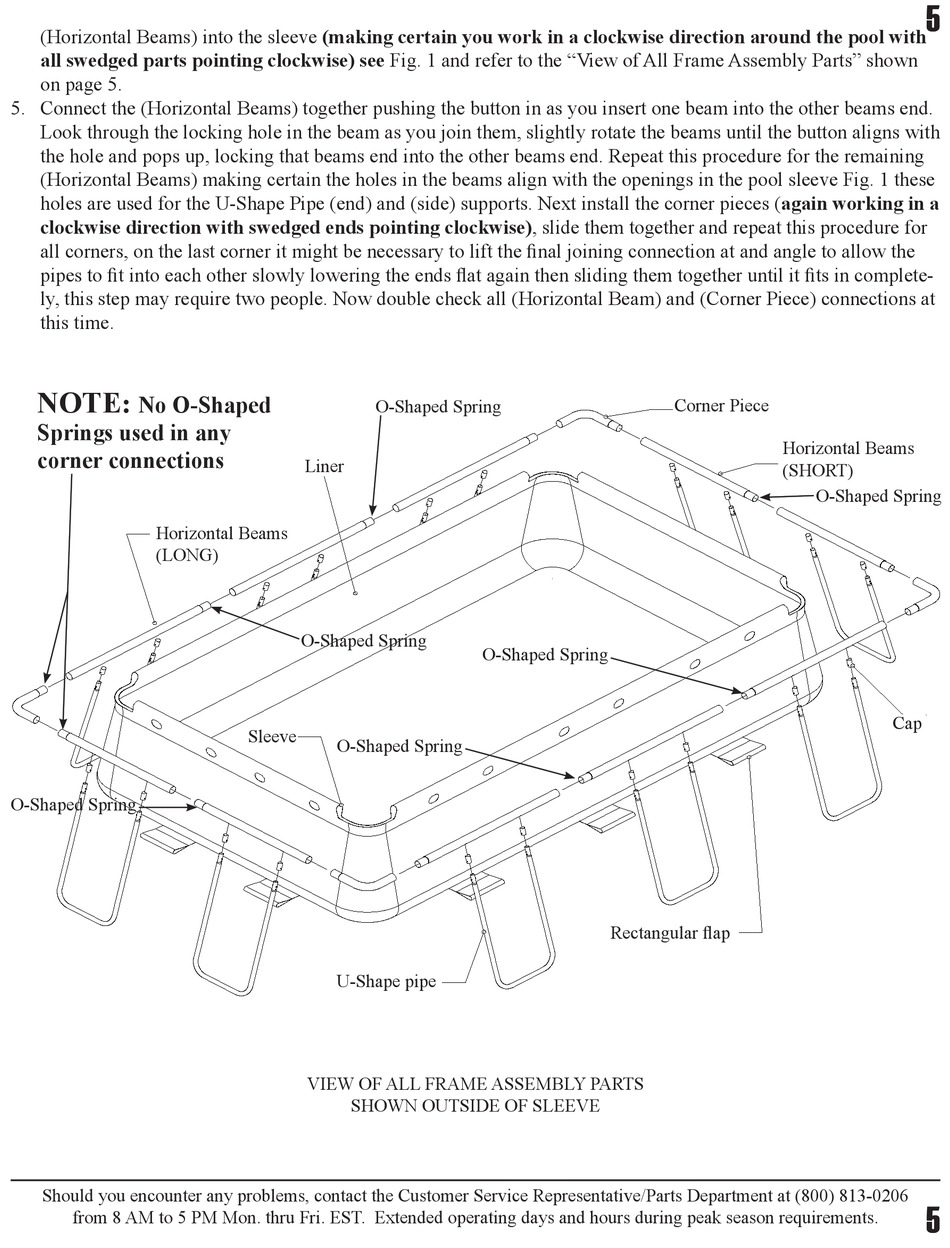

VIEW OF ALL FRAME ASSEMBLY PARTS
SHOWN OUTSIDE OF SLEEVE
Corner Piece
Horizontal Beams
(SHORT)
Rectangular flap
5
Cap
5
