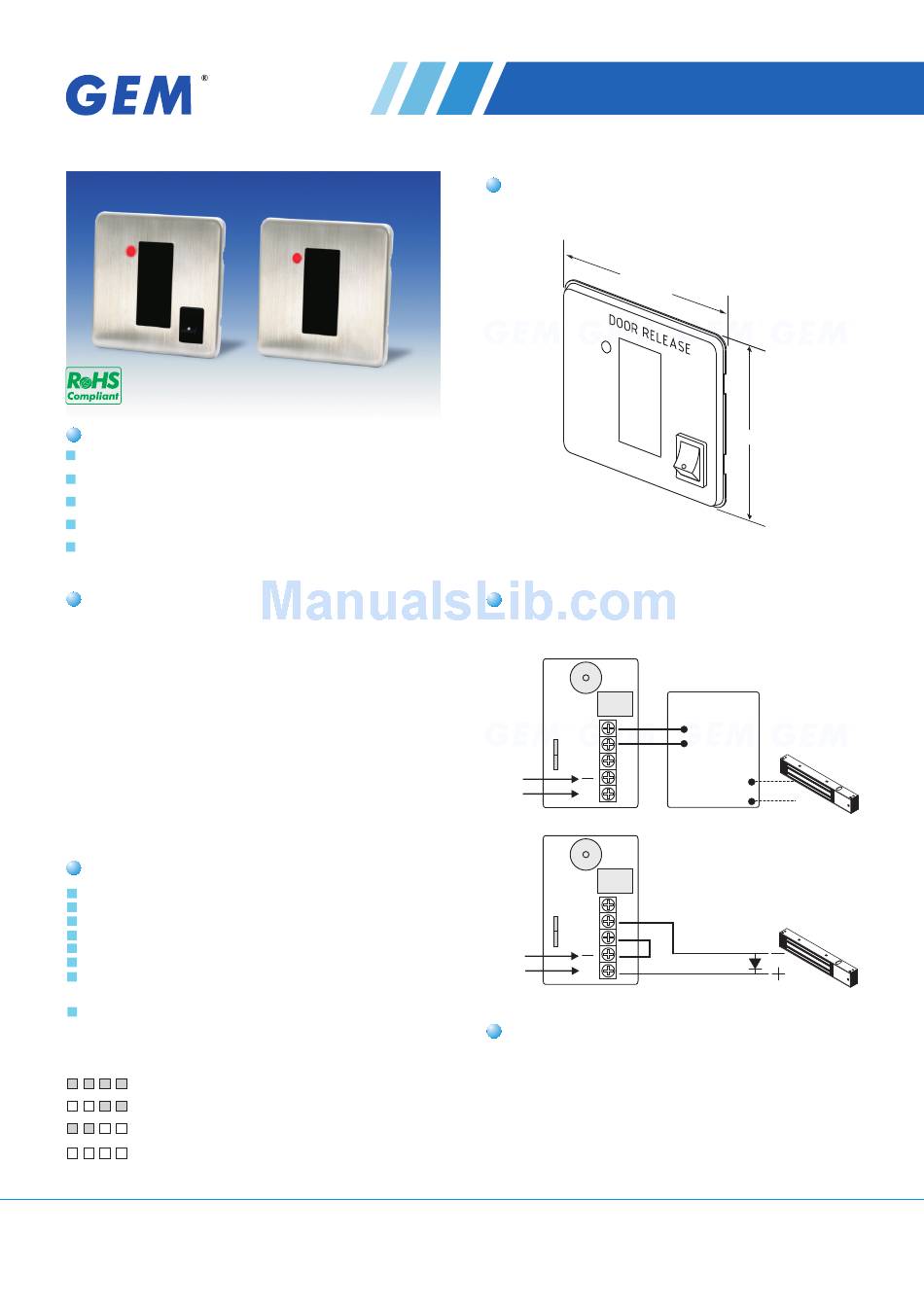

GEM RTS-500 Specification

RTS-500
Features
European Sized Face Plate
Infrared, suitable for any environment
10 cm Proximity Range
Compatible with Access Control Units
Emergency Exit Button
Statement
The RTS-500 Infrared Sensor Exit Device
control package has many different ways
the diagrams below, illustrate two recommended ways of
connection.
In Fig A, RTS relay output connects to 'Request-to-exit input
contact' on the control device; therefore it is better to adjust
the RTS relay timer to the shortest time.
In Fig. B, the release of Locking Device
RTS relay output directly; therefore, the relay time of RTS is
the release time of Locking Device
Specification
Operating Voltage: 12VDC
Current Draw: Holding 50mA, Pull in 60mA/12VDC
Case Dimension: 88(L)x88(W)mm
Sensor Range: Up to 10 cm (18% gray reflection)
Relay Rating: 3A/125VAC/30VDC
Operating Temperature: -20~+70ºC
A m b i e n t H u m i d i t y : 5 ~ 9 5 % r e l a t i v e h u m i d i t y ( n o n -
condensing)
Relay Timer: 0.5, 5,10,20 Seconds
Relay Timer:
0.5 seconds
5 seconds
10 seconds
20 seconds
Copyright © Gianni Industries, Inc. All rights reserved.
DM-CA-RTS Ver. E Published on 2010.03.25
RTS-500N
and access
of connection, and
was controlled by
.
RTS-500
Infrared Sensor Exit
Dimensions
8 6 m
m
Application
NC
COM
NO
12VDC
+
NC
COM
NO
12VDC
+
Warranty
The product is warranted against defects in material and
workmanship while used in normal service for a period of 1
year from the date of sale to the original customer. The GEM
policy is one of continual development and improvement;
therefore GEM reserves the right to change specifications
without notice.
GIANNI INDUSTRIES, INC.
No. 13, Zhongxing Rd., Tucheng Dist., New Taipei
City 236,Taiwan (R.O.C.)
Tel: 886-2 2267 7986 / Fax: 886-2 2267 9876
E-Mail: inquiry@gianni.com.tw
Website: gianni.tw
8 6 m
m
Fig. A
Control Device
Request-to-exit
input contact
Locking Device
Relay output
control
Fig. B
Locking Device
(Fail-Safe)
