User Manual
QuickSpecs
Overview
1. Menu
Opens, selects or exits the OSD menu.
2. Minus "-"
If the OSD menu is on, press to navigate
backward through the OSD menu and
decrease adjustment levels.
3. Plus"+"/Input
If the OSD menu is on, press to navigate
forward through the OSD menu and
increase adjustment levels.
If the OSD menu is inactive, press to
activate the source button that chooses the
video signal input (VGA, DVI, or
DisplayPort).
DA - 14672 Worldwide — Version 4 — October 3, 2013
4. OK/Auto
If the OSD menu is on, press to select the
highlighted menu item. If the OSD menu is
inactive, press to activate the auto
adjustment feature to optimize the screen
image.
5. Power/Power LED Turns the monitor on or off.
LED:
fully powered = white;
sleep mode = amber;
sleep timer mode = flashing amber.

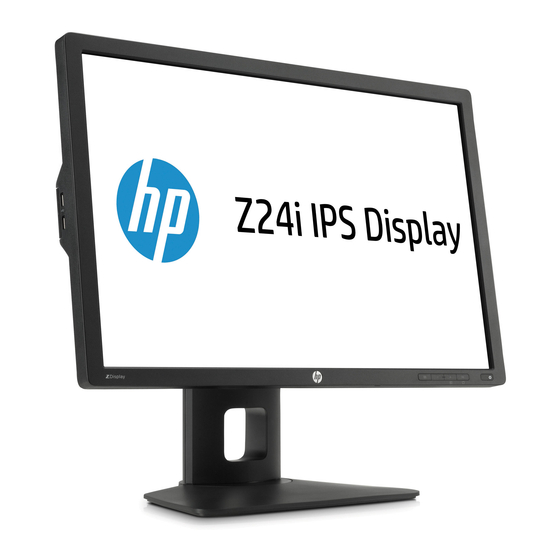

HP Z24i 24-inch IPS Display
Page 1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for HP Z24i
Summary of Contents for HP Z24i
- Page 1 QuickSpecs HP Z24i 24-inch IPS Display Overview 1. Menu Opens, selects or exits the OSD menu. 4. OK/Auto If the OSD menu is on, press to select the highlighted menu item. If the OSD menu is inactive, press to activate the auto adjustment feature to optimize the screen image.
- Page 2 QuickSpecs HP Z24i 24-inch IPS Display Overview Models D7P53A4, D7P53A8, D7P53AS, D7P53AT DA - 14672 Worldwide — Version 4 — October 3, 2013 Page 2...
-
Page 3: Technical Specifications
Size vs. NTSC (CIE 1931) Size vs. NTSC (CIE 1976) Coverage of sRGB (CIE 1976) *All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower. ** With the use of FRC technology. User Controls Buttons or Switches Menu, Minus ("-"), Plus ("+") /Input, OK/Auto, Power... - Page 4 QuickSpecs HP Z24i 24-inch IPS Display Technical Specifications 1600 x 1200 @ 60 Hz 1680 x 1050 @ 60 Hz 1920 x 1080 @ 60 Hz 1920 x 1200 @ 60 Hz Maximum Pixel Clock 200 MHz Speed User Programmable...
- Page 5 & declarations IT ECO declaration US ENERGY STAR® TCO 06 EPEAT® Gold where HP registers Commercial Display products. See http://www.epeat.net for registration status in your country US Federal Energy Management Program (FEMP) Energy Consumption...
-
Page 6: Additional Information
RoHS Directive on a worldwide basis. By July 1, 2006, RoHS substances will be virtually eliminated (virtually = to levels below legal limits) for all HP electronic products subject to the RoHS Directive, except where it is widely recognized that there is no technically feasible alternative (as indicated by an exemption under the EU RoHS Directive). - Page 7 Options HP Thin Client Mount Attach your HP Thin Client or USDT PC to the back of select HP Z Displays and maintain optimal ergonomic adjustability with the HP Thin Client Mount Kit. For more information Kit-Part number...
- Page 8 Stand-Part number depth, height and tilt adjustment for maximum comfort. AW663AA What's in the box? Monitor and Accessories HP Z24i 24-inch IPS Display, AC power cord, USB cable, DisplayPort cable, DVI-D cable. Documentation CD (includes user guide, warranty, drivers) Featured Software...
- Page 9 Low Halogen. The HP Quick Release has been designed to support a maximum of up to 24 lbs (10.9 kg) for all devices mounted. Because mounting surfaces vary widely and the final mounting method and configuration may vary, mounting fasteners are not supplied (other than the VESA-compliant screws).
