Generac Power Systems MLG20 Specifications

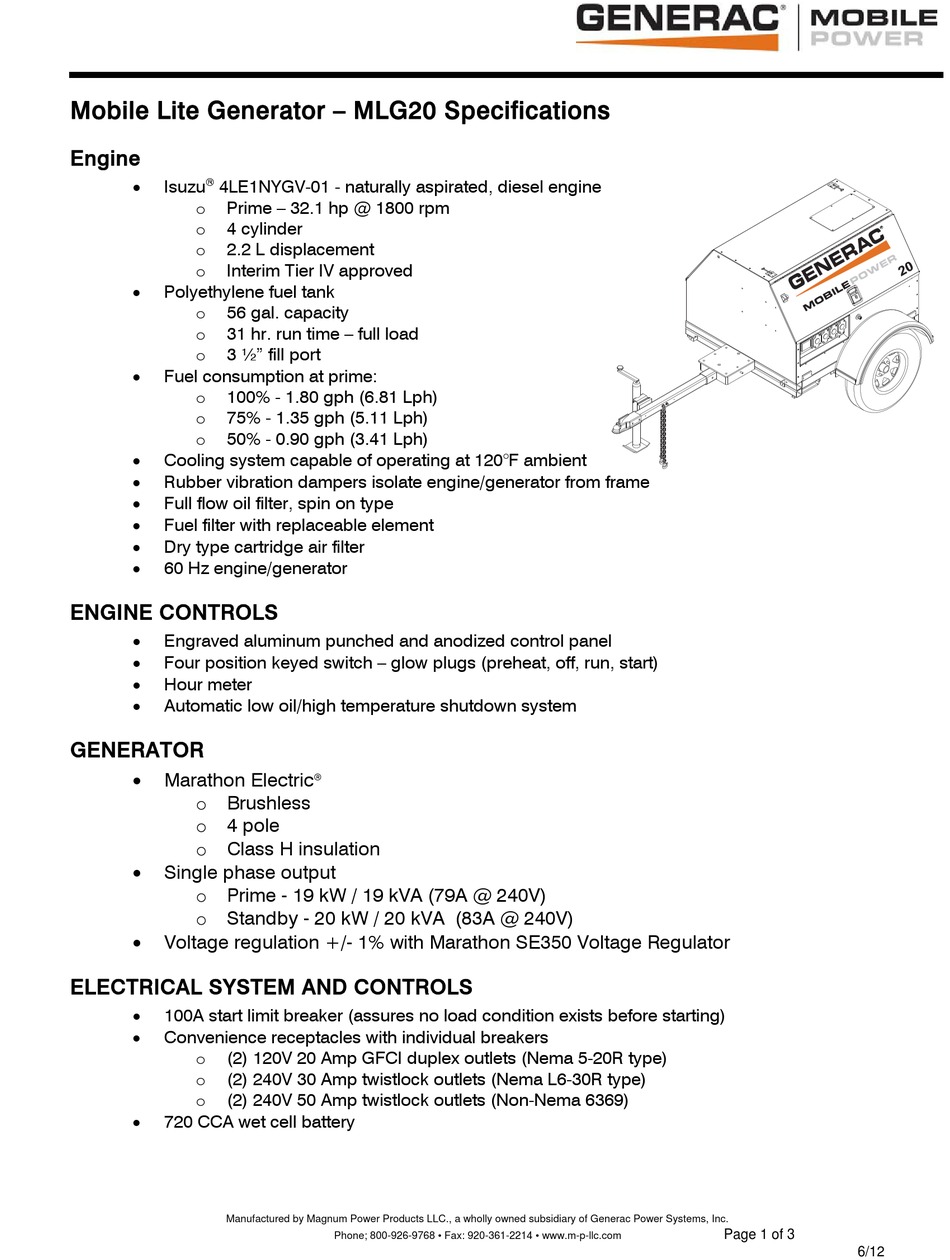

Mobile Lite Generator – MLG20 Specifications
Engine

Isuzu ® 4LE1NYGV-01 - naturally aspirated, diesel engine
Prime – 32.1 hp @ 1800 rpm
o
4 cylinder
o
2.2 L displacement
o
Interim Tier IV approved
o

Polyethylene fuel tank
56 gal. capacity
o
31 hr. run time – full load
o
3 ½" fill port
o
 Fuel consumption at prime:
100% - 1.80 gph (6.81 Lph)
o
75% - 1.35 gph (5.11 Lph)
o
50% - 0.90 gph (3.41 Lph)
o

Cooling system capable of operating at 120°F ambient
 Rubber vibration dampers isolate engine/generator from frame

Full flow oil filter, spin on type

Fuel filter with replaceable element
 Dry type cartridge air filter

60 Hz engine/generator

ENGINE CONTROLS


Engraved aluminum punched and anodized control panel
 Four position keyed switch – glow plugs (preheat, off, run, start)

Hour meter
 Automatic low oil/high temperature shutdown system
GENERATOR

Marathon Electric
o Brushless
o 4 pole
o Class H insulation
 Single phase output
o Prime - 19 kW / 19 kVA (79A @ 240V)
o Standby - 20 kW / 20 kVA (83A @ 240V)
 Voltage regulation +/- 1% with Marathon SE350 Voltage Regulator
ELECTRICAL SYSTEM AND CONTROLS

100A start limit breaker (assures no load condition exists before starting)

Convenience receptacles with individual breakers
(2) 120V 20 Amp GFCI duplex outlets (Nema 5-20R type)
o
(2) 240V 30 Amp twistlock outlets (Nema L6-30R type)
o
(2) 240V 50 Amp twistlock outlets (Non-Nema 6369)
o
 720 CCA wet cell battery
Manufactured by Magnum Power Products LLC., a wholly owned subsidiary of Generac Power Systems, Inc.
®
Phone; 800-926-9768 • Fax: 920-361-2214 • www.m-p-llc.com
Page 1 of 3
6/12
