Epson PowerLite 470 Quick Setup Manual

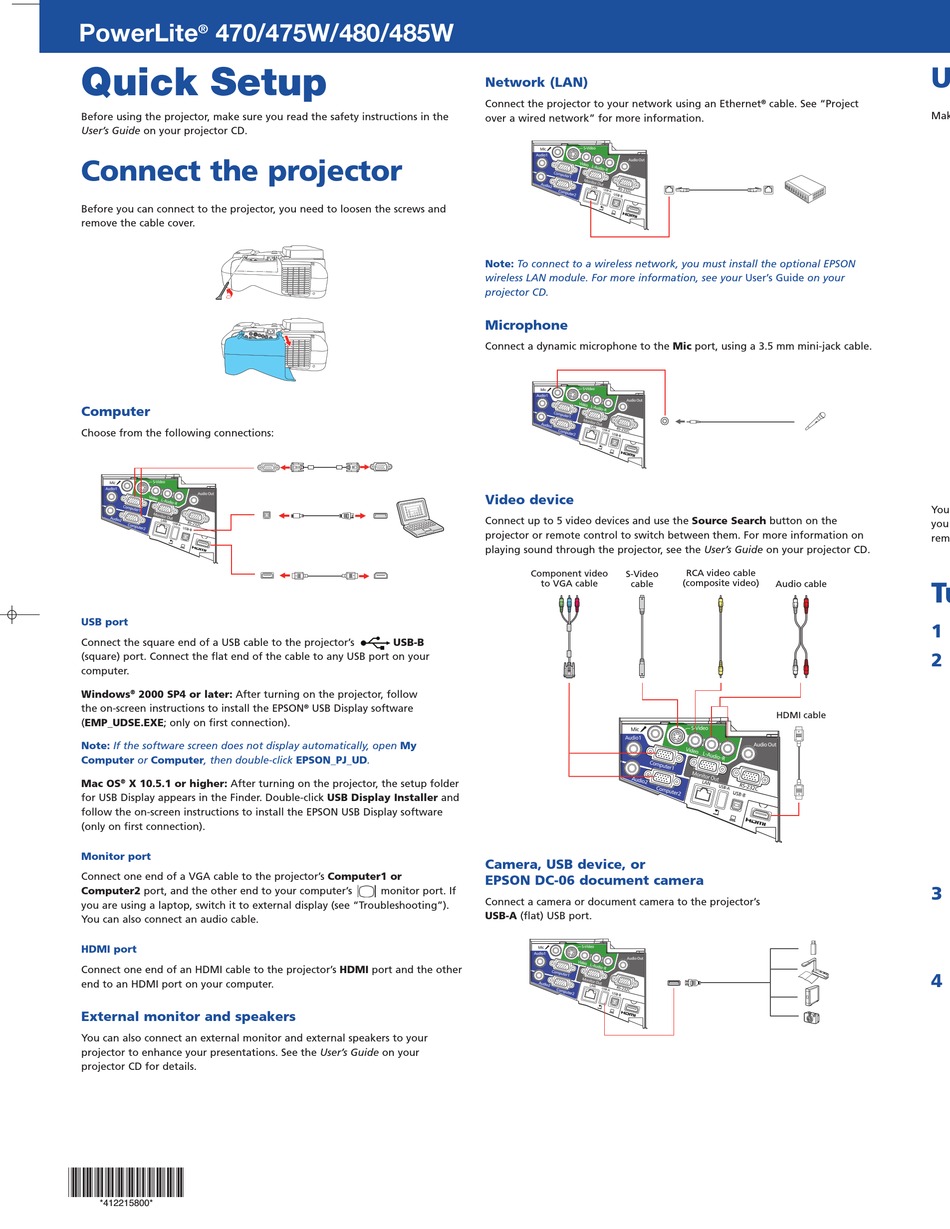

PowerLite 470/475W/480/485W
®

Quick Setup

Before using the projector, make sure you read the safety instructions in the
User's Guide on your projector CD.
Connect the projector
Before you can connect to the projector, you need to loosen the screws and
remove the cable cover.
Computer
Choose from the following connections:
USB port
Connect the square end of a USB cable to the projector's
(square) port. Connect the flat end of the cable to any USB port on your
computer.
Windows ® 2000 SP4 or later: After turning on the projector, follow
the on-screen instructions to install the EPSON
(EMP_UDSE.EXE; only on first connection).
Note: If the software screen does not display automatically, open My
Computer or Computer, then double-click EPSON_PJ_UD.
Mac OS ® X 10.5.1 or higher: After turning on the projector, the setup folder
for USB Display appears in the Finder. Double-click USB Display Installer and
follow the on-screen instructions to install the EPSON USB Display software
(only on first connection).
Monitor port
Connect one end of a VGA cable to the projector's Computer1 or
Computer2 port, and the other end to your computer's
you are using a laptop, switch it to external display (see "Troubleshooting").
You can also connect an audio cable.
HDMI port
Connect one end of an HDMI cable to the projector's HDMI port and the other
end to an HDMI port on your computer.
External monitor and speakers
You can also connect an external monitor and external speakers to your
projector to enhance your presentations. See the User's Guide on your
projector CD for details.
*412215800*
*412215800*
USB-B
® USB Display software
monitor port. If
Network (LAN)
Connect the projector to your network using an Ethernet
over a wired network" for more information.
Note: To connect to a wireless network, you must install the optional EPSON
wireless LAN module. For more information, see your User's Guide on your
projector CD.
Microphone
Connect a dynamic microphone to the Mic port, using a 3.5 mm mini-jack cable.
Video device
Connect up to 5 video devices and use the Source Search button on the
projector or remote control to switch between them. For more information on
playing sound through the projector, see the User's Guide on your projector CD.
Component video S-Video
to VGA cable
cable
Camera, USB device, or
EPSON DC-06 document camera
Connect a camera or document camera to the projector's
USB-A (flat) USB port.
® cable. See "Project
RCA video cable
(composite video)
Audio cable
HDMI cable
