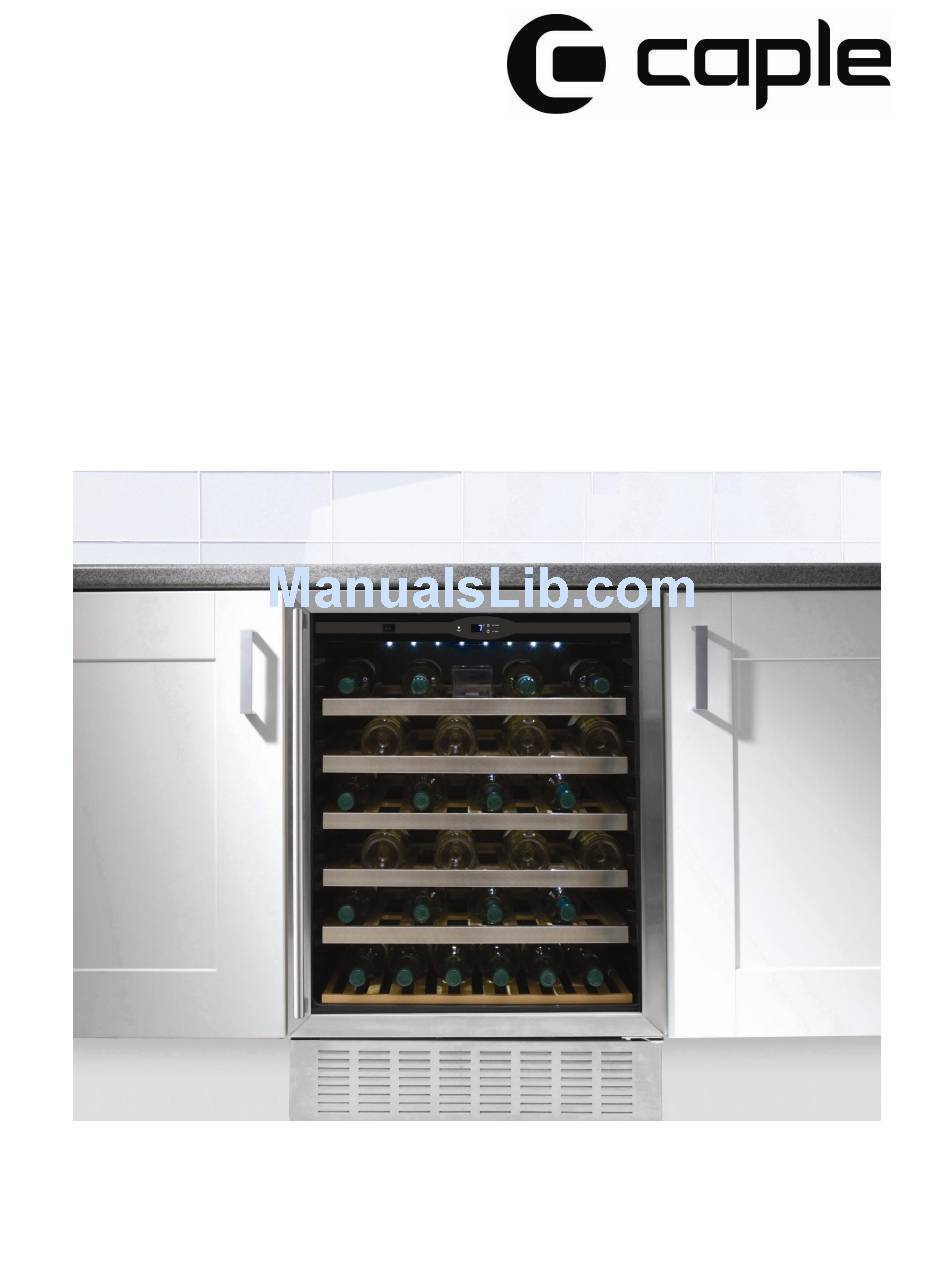

- Page 1 Instruction manual for Wine Cabinet Wi6112 Slot-in Contact Caple on 0844 800 3830 or for spares www.caple.co.uk...
-
Page 2: Important Warnings And Advice
Thank you for buying your new CAPLE Wine Cabinet. To ensure that you get the best results from your new purchase, we strongly suggest that you read this instruction manual thoroughly before use. This manual contains installation advice, usage instructions and other important facts about your CAPLE Wine Cabinet. -
Page 3: Installation Instructions
INSTALLATION INSTRUCTIONS BEFORE TURNING THE WINE CABINET ON ENSURE IT IS PERFECTLY LEVEL. This will minimise any vibrations. Your cabinet is equipped with 4 adjustable feet. However, we recommend that you tighten the back feet to the maximum and then use the front feet to level the cabinet. IMPORTANT: STAND THE WINE CABINET VETICALLY AND WAIT 12 HOURS BEFORE SWITCHING IT ON FOR THE FIRST TIME. - Page 4 OPERATING INSTRUCTIONS The wine cabinet should be placed where the ambient temperature is between 5-35 deg centigrade (41-95 degrees Fahrenheit). If the ambient temperature is above or below this range, the performance of the unit may be affected. For example, placing your unit in extreme cold or hot conditions may cause interior temperatures to fluctuate and the range of 5-18 ºC (41-65 degrees Fahrenheit) may not be reached.
- Page 5 Installation of Shelves To fit or remove the shelf, tilt the shelf as per the diagram and simply pull out, or push the shelf in until it sits on the support brackets securely. DOOR REVERSAL WE RECOMMEND THAT SOMEONE ASSISTS YOU DURING THIS PROCESS. TOOLS REQUIRED: PHILIPS SCREWDRIVER.
-
Page 6: Humidity Maintenance System
• Bottom hinge (Right) • Screws • Door axis • Door • Top hinge (Right) • Lock screws • Top hinge (Left) • Bottom hinge (Left) Remove 2 screws •, then pull door • as per arrowhead direction and you will remove the door. Please remove bottom hinge (Right) •... - Page 7 Power Failure Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimise the number of times the door is opened. If the power is going to be off for a longer period of time, you need to take action to protect the contents. Vacation Time Short vacations: Leave the wine cabinet operating during vacations of less than three weeks.
-
Page 8: Troubleshooting Guide
TROUBLE SHOOTING GUIDE You can solve many common wine cabinet problems easily, saving you the cost of a possible service call. Try the suggestions below to see if you can solve the problem before calling the service engineer. PROBLEM POSSIBLE CAUSE The wine cabinet does not operate. -
Page 9: Recommended Temperature Settings
RECOMMENDED TEMPERATURE SETTINGS For keeping ALL TYPES OF WINES c to 14 Champagne NV, Sparkling Champagne Vintage Dry White Semillon, Sauvignon Blanc Dry White Gewurstraminer, Riesling Dry White Chardonnay Vintage chardonnay Sweet White Sauternes Monbazillac, Late Harvest ice wine Sweet whites vintage Sauternes Beaujolais Red Pinot Noir Vintage Pinot Noir red...
