- Page 1 ’ ’ IES Colt Electric Bicycle Copyright 2003 by IES International Ecological Systems, Ltd. 51 Hartz Way. Secaucus, NJ 07094 1-866-742-6274 info@cycleies.com www.cycleies.com...
-
Page 2: Record Of Serial Number
It is important that you read and understand the material outlined in this manual. We want you to be completely satisfied with your Colt. If you have any questions or concerns, please call the IES team at 1-866-742-6274. Each bicycle comes with a Vehicle Identification Number (VIN) embossed into the frame. -

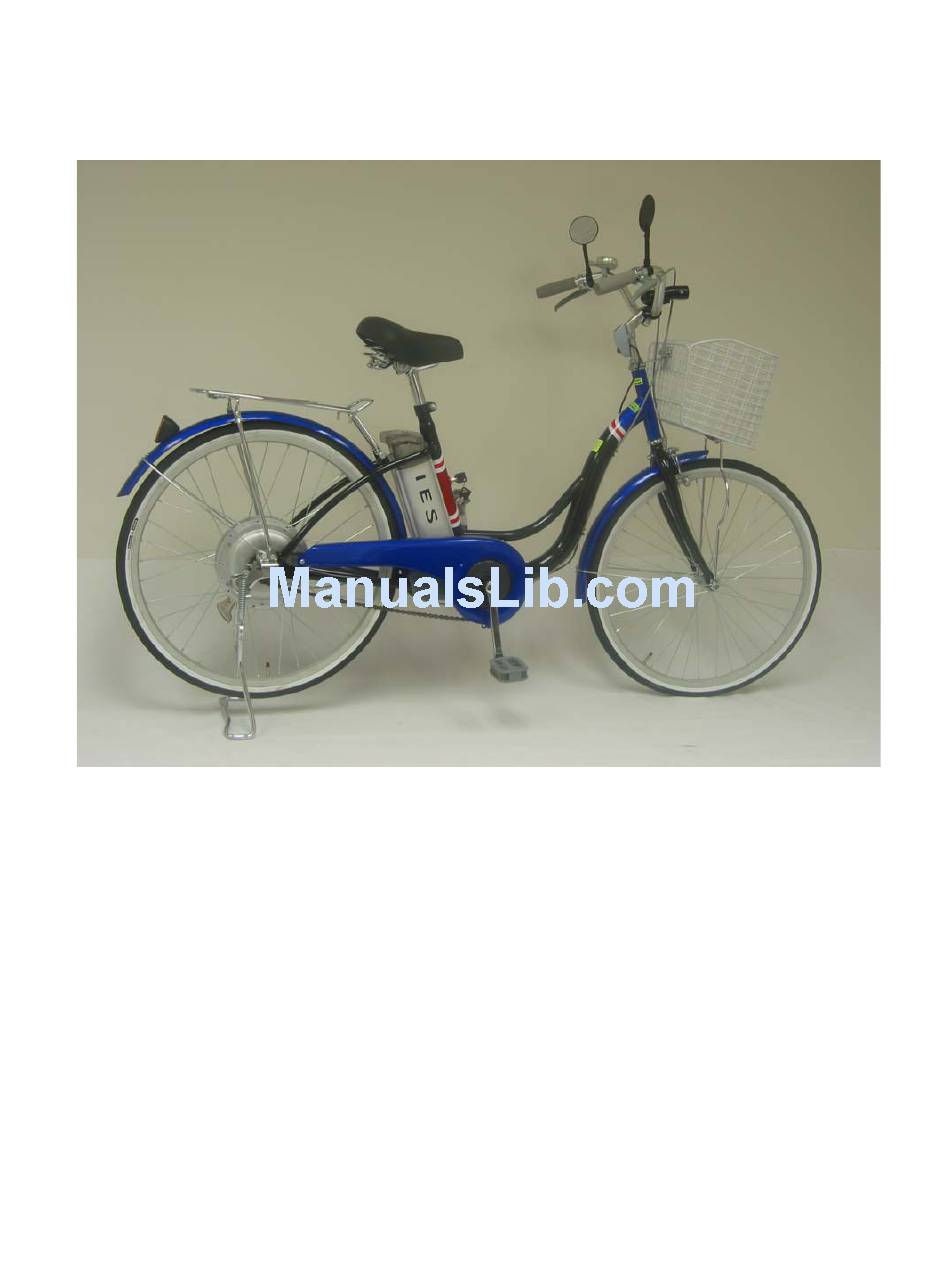

Page 3: Photo Of Colt
’ – ’ – COLT If you have any difficulty with the final assembly of your electric bike, please call the IES Service Department at 1-866-726-6856. -
Page 4: Table Of Contents
’ – ’ – Table of Contents Page • Record of serial number • Photo of Colt • Table of Contents • Cautions and Warnings • Inspection of your Shipment • Illustration of bike • Assembly Instructions • Operating Instructions •... -
Page 5: Cautions And Warnings
’ – ’ – CAUTIONS AND WARNINGS! Please read this section! It is very important for your safety and satisfaction that you read these cautions and warnings. Thanks! Warning! Always wear your helmet, obey local laws, and exercise caution when riding. Warning! If you are not certain that your bike is safe to ride, call the IES Service Department at 1-866-726-6856 for detailed advice and information. -
Page 6: Inspection Of Your Shipment
’ – INSPECTION OF YOUR SHIPMENT The following is a list of all the necessary parts and components of your new Colt. Please make sure everything is enclosed in the box and in good working condition. Bicycle 1 Comfort Saddle... -
Page 7: Illustration Of Bike
’ – ’ – Figure 1 – Parts of your Colt and Location of Quick Releases 10 - 26 1. Front Brake 10. Battery Indicator 19. Saddle 2. Reflectors 11. Battery 20. Seat Post Adjustment 3. Handlebar 12. Kickstand 21. Rear Brake 4. -
Page 8: Assembly Instructions
- Combination open end/box wrench - Phillips screwdriver Assembly Instructions Please read through and follow all instructions to ensure that your Colt is properly assembled and ready for use. 1. Remove the bicycle from the box by cutting the plastic strapping, then cutting two sides of the box away. - Page 9 ’ – ’ – 5. Install the pedals by carefully threading through crank arm, then tightening securely with a wrench. 6. Pull up on the seat release lever under seat (See Figure which follows on Page 9) and pull rear of seat forward. Slide the battery into the holder between the seat post and rear fender.
- Page 10 ’ – ’ – 2. Loosen the Allen key nut to adjust the tension on the brake cable. Adjust the wire inner brake cable to the desired length, and tighten nut. Brake cable length adjustment. The right brake lever controls the rear brake. The rear brake is a band brake which has been pre-adjusted at the factory.
-
Page 11: Operating Instructions
10 hours, but do not charge for more than 20 hours. After the initial battery charge, your Colt battery can be completely charged in 4 hours. 5. The charger will take up to 4 hours to recharge the battery completely. When the green light appears the battery is sufficiently charged. - Page 12 2. Always use your charger as instructed. 3. Do not use any other charger than the one that came with your Colt. 4. Avoid any contact with water when recharging your battery. If a plug or socket should get wet, dry it thoroughly before proceeding.
-
Page 13: Bicycle Components
Tires Inflate your tires to the pressure embossed on the sidewall before the first use of your new bike. The recommended tire pressure for the Colt is 40-PSI. Every time you ride, make sure that the tires are inflated according to pressure indicated on tire sidewall. - Page 14 Riding Your Colt Your Colt is a pedalec. By pressing the red power switch on and slowly pedaling, the electric motor will automatically be activated. You control your speed by the rate at which you pedal. On flat terrain you can achieve maximum...
-
Page 15: Bicycle Care
’ – BICYCLE CARE We recommend having your Colt serviced once a year by a bicycle mechanic for regular bicycle maintenance in order to ensure safety and keep components in proper working order. Throughout the year, there are simple steps you can take to inspect and maintain your Colt: 1. -
Page 16: Safety Responsibility
’ – ’ – SAFETY RESPONSIBILITY Know the laws of your state. It is your responsibility to know and obey the laws of your local area concerning the operation of an electric bicycle. In most cases, cyclists must obey the same laws that apply to motorists. This may include the use of proper protective equipment –... -
Page 17: Specifications
’ – ’ – SPECIFICATIONS Size 55 x 26 x 29 inches Wheel Size 26” wheel Bicycle Weight Including Battery 57 lbs Max speed 15 MPH Range Under Power Up to 15 miles Electricity Consumed per Hundred Kilometers 0.6 KWH Battery Type/Voltage/AMPS Nickel Metal Hydride / 24 volts / 7 AH... - Page 18 – ’ – Your Colt Bicycle is equipped with Woods Valves to inflate the tires. This valve is popular in many places around the world. For you convenience, we have included the valve adaptors you will need to fill your tires with normal USA pumps and air compressors.
