  • Page 1 ’ ’ Copyright 2004 IES International Ecological Systems, Ltd. 51 Hartz Way. Secaucus, NJ 07094 1-866-742-6274 info@cycleies.com www.cycleies.com...

  • Page 2: Record Of Serial Number

    This manual contains many cautions and warnings. It is important that you read and understand the material outlined in this manual. We want you to be completely satisfied with your Intrepid. If you have any questions or concerns, please call the IES team at 1-866-742-6274.

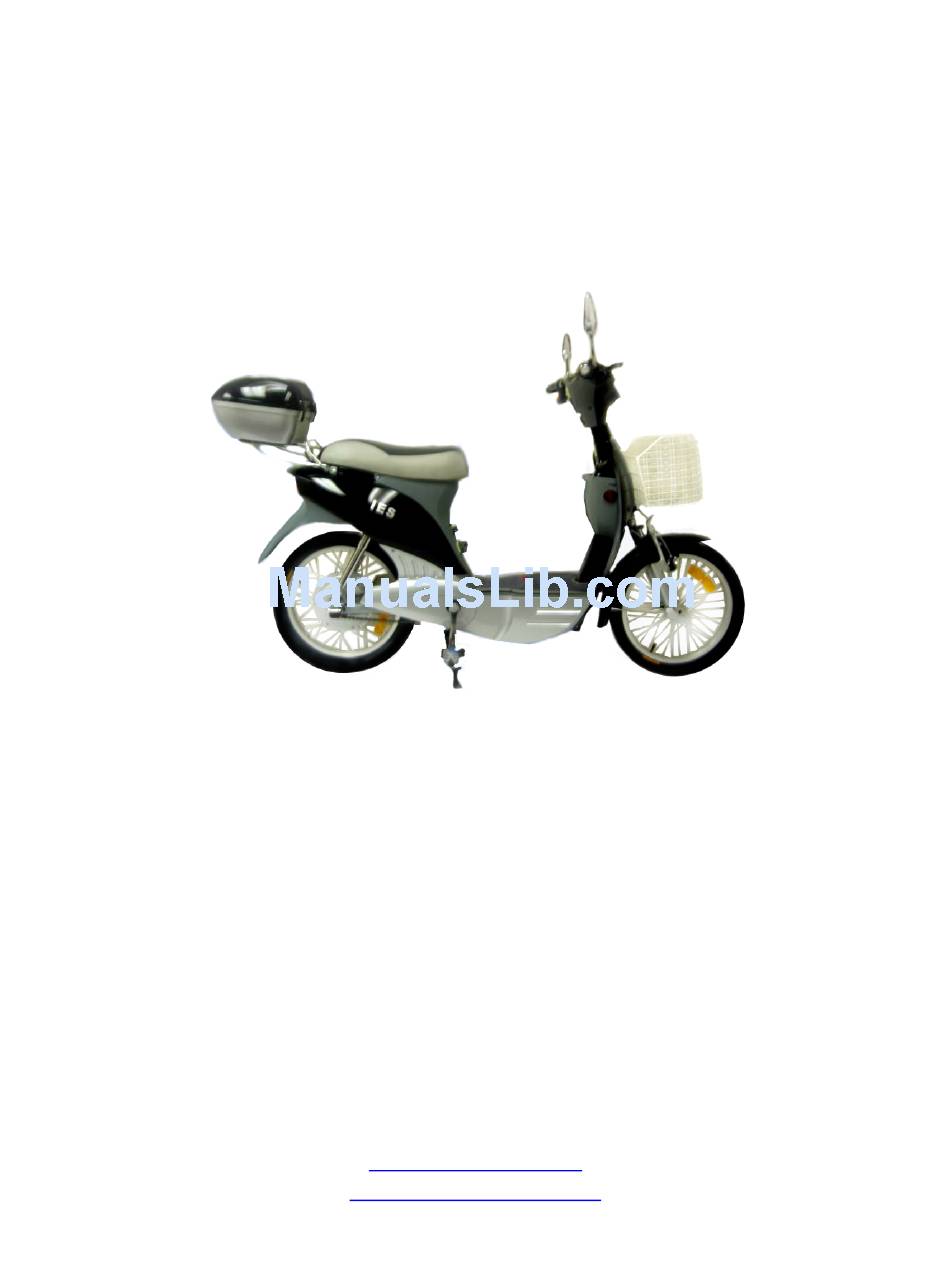

  • Page 3: Photo Of Intrepid

    ’ – ’ – INTREPID If you have any difficulty with the final assembly of your electric bike, please call the IES Service Department at 1-866-726-6856.

  • Page 4: Table Of Contents

    – ’ – TABLE OF CONTENTS PAGE • Record of serial number • Photo of Intrepid • Table of Contents • Cautions and Warnings • Inspection of your shipment • Illustration of bike components • Assembly Instructions • Operating Instructions – Power •...

  • Page 5: Cautions And Warnings

    ’ – ’ – CAUTIONS AND WARNINGS! Please read this section! It is very important for your safety and satisfaction that you read these cautions and warnings. Thanks! Warning! Always wear your helmet, obey local laws, and exercise caution when riding. Warning! If you are not certain that your bike is safe to ride, call the IES Service Department at 1-866-726-6856 for detailed advice and information.

  • Page 6: Inspection Of Your Shipment

    – ’ – INSPECTION OF YOUR SHIPMENT The following is a list of all the necessary parts and components of your new Intrepid. Please make sure the listed parts are enclosed in the boxes and in good working condition. Bicycle...

  • Page 7: Illustration Of Bike Components

    ’ – ’ – FIGURE 1 – Parts of your Intrepid 1 - Front Brake Lever 11 - Battery Indicator 21 - Rear Brake 2 - Rear Brake Lever 12 - Battery (Under Mat) 22 - Rear locking Carrier 3 - Reflectors...

  • Page 8: Assembly Instructions

    - combination open end/box wrench - Phillips screwdriver Assembly Instructions Please read through and follow all instructions to ensure that your Intrepid is properly assembled and ready for use. 1. Remove the bicycle from the box by cutting the plastic strapping, then cutting two sides of the box away.
  • Page 9 ’ – ’ – Installing the front wheel and fender supports. 3. Install the pedals. Install the pedals by carefully threading through crank arm, then tightening securely with a wrench 4. Adjusting the Brakes - Adjust the front brake by first loosening the nut on brake assembly as shown in figure which follows on Page 10.

  • Page 10: Adjusting The Front Brake

    ’ – ’ – Adjusting the front brake 5. Install the battery as indicated in Figure 2. Connect the power cable to the battery. Lock the battery in place using the key. Figure 2 6. Install the front basket as shown in Figure 3. Remove the Phillips head screw beneath the front headlight from the front bike frame.
  • Page 11 ’ – ’ – 9. Install the rear view mirrors as shown in Figure 4. Install the mirrors to the front handlebar assembly. Remove the screw and nut from the right and left brake lever as shown. Slide the mirror through the screw hole and tighten the nut securely. (You do not need the screw which you have removed once mirrors have been attached) See the “Assembly Tips”...

  • Page 12: Operating Instructions - Power

    Inspect your bike completely. Power On/Off The Power On/Off switch is a key switch located on the bicycle frame. The Intrepid uses the same key to lock the battery box and accessory box.

  • Page 13: Operating Instructions - Throttle And Controls

    ’ – ’ – OPERATING INSTRUCTIONS – Throttle & Controls The throttle is located on the right side of the handlebar . Hold it with your right hand and turn it towards your body (counter clockwise) to increase speed. L·R switch: Right & Left turn signal. Red light switch: Front &...

  • Page 14: Operating Instructions - Recharging The Battery

    ’ – ’ – OPERATING INSTRUCTIONS – Charging the battery CAUTION: Do not attempt to open or tamper with the battery in any way. Doing so may cause chemical, electrical and/or fire hazards. Batteries that lay dormant for an extended period of time will lose their ability to accept a charge.
  • Page 15 2. Always use your charger as instructed. 3. Do not use any other charger than the one that came with your Intrepid. 4. Avoid any contact with water when recharging your battery. If a plug or socket should get wet, dry it thoroughly before proceeding.
  • Page 16 ’ – ’ – OPERATING INSTRUCTIONS – Charging the battery (illustrations) You may charge the battery without removing it from the bike or you may remove the battery for charging. Make sure ignition is turned off before charging. To charge the battery without removing from the bike, locate the charging port, located on the seat riser.

  • Page 17: Operating Instructions - Opening The Seat

    ’ – ’ – OPERATING INSTRUCTIONS – Opening the seat OPERATING INSTRUCTIONS – Opening the seat Insert the key into the switch under the seat and turn clockwise. Note: This key also operates the ignition Lift the seat from the rear. This compartment can be used for storage When you close the seat, press down on the rear of the seat with your hand.

  • Page 18: Illustrated Assembly Tips

    ’ – ’ – ASSEMBLY TIPS Figure 3 Attaching the front basket. Screw basket into Attach basket to bracket using 2 screws and bolts handlebar assembly Figure 4 Installing the Rear-View Mirrors a) Remove the screw and nut from the right and left brake lever as shown. b) Slide the mirror through the screw hole and tighten the nut securely.

  • Page 19: Bicycle Care

    Be sure to completely dry your bike with a soft towel to prevent rusting and corrosion. Your Intrepid is water resistant, but not waterproof. 3. Reflectors should be kept clean, securely fastened and positioned for easy visibility at night from the front, rear and side.

  • Page 20: Safety Responsibility

    Use the clear light on the front and the red light on the back of your Intrepid, which your Intrepid is equipped with. Wear light colored and/or reflective clothing. Assume motorists are unable to see you and ride in a very defensive, cautious manner.

  • Page 21: Bicycle Components

    You are always in control of your speed. One of the most important features of the Intrepid is the power shut down mechanism incorporated into the right brake lever. Every time the right brake lever is compressed, the power from the motor is discontinued.
  • Page 22 ’ – ’ – BICYCLE COMPONENTS – (continued) Brakes Riding with brakes that are damaged, have worn brake shoes or cables, or are on wheels that are in poor condition or damaged may result in losing control of your bicycle. Wet weather detracts from brake performance.

  • Page 23: Troubleshooting

    Charge unit not charging • Fuse blown in charger. Change fuse in charger. Please consult the IES Service Team at 1-866-726-6856 for assistance on any other matters. We hope you enjoy your Intrepid and all the pleasure and benefits it will bring.

  • Page 24: Specifications

    ’ – ’ – SPECIFICATIONS Size: 63 x 26 x 42 inches Wheel size: 18 inch wheel Max Speed: 16 mph Power consumption per Charge less than 0.8kwh Noise: less than 62-dB (A) Range per Charge Under Power: up to 30 miles Maximum Recommended Weight of rider: 240 lbs...
