Summary of Contents for IES Centaur
- Page 1 ’ ’ IES Centaur Electric Bicycle Copyright 2004 by IES International Ecological Systems, Ltd. 51 Hartz Way. Secaucus, NJ 07094 1-866-742-6274 info@cycleies.com www.cycleies.com...
-
Page 2: Record Of Serial Number
It is important that you read and understand the material outlined in this manual. We want you to be completely satisfied with your Centaur. If you have any questions or concerns, please call the IES team at 1-866-742-6274. Each bicycle comes with a Vehicle Identification Number (VIN) embossed into the frame. -

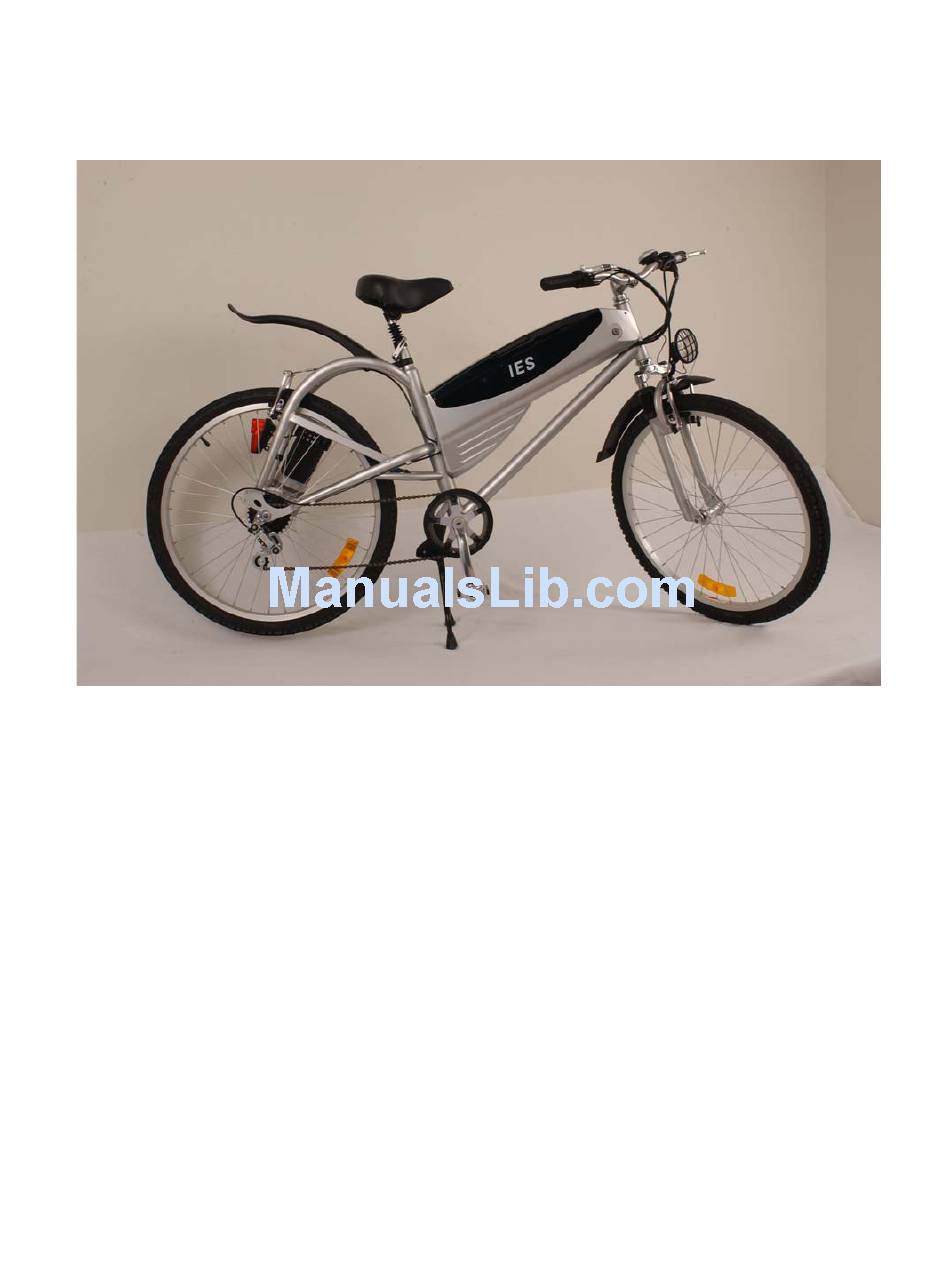

Page 3: Photo Of Centaur
’ – ’ – CENTAUR If you have any difficulty with the final assembly of your electric bike, please call the IES Service Department at 1-866-726-6856. -
Page 4: Table Of Contents
’ – ’ – Table of Contents Page • Record of serial number • Photo of Centaur • Table of Contents • Cautions and Warnings • Inspection of your Shipment • Illustration of bike • Assembly Instructions • Operating Instructions •... -
Page 5: Cautions And Warnings
’ – ’ – CAUTIONS AND WARNINGS! Please read this section! It is very important for your safety and satisfaction that you read these cautions and warnings. Thanks! Warning! Always wear your helmet, obey local laws, and exercise caution when riding. Warning! If you are not certain that your bike is safe to ride, call the IES Service Department at 1-866-726-6856 for detailed advice and information. -
Page 6: Inspection Of Your Shipment
’ – INSPECTION OF YOUR SHIPMENT The following is a list of all the necessary parts and components of your new Centaur. Please make sure everything is enclosed in the box and in good working condition. Bicycle 1 Comfort Saddle... -
Page 7: Illustration Of Bike
’ – ’ – Figure 1 – Parts of your Centaur and Location of Quick Releases 1. Front Mudguard 10. Back Mudguard 19. Battery 2. Front Suspension Fork 11. Brake Bow 20. Frame 3. Front Light 12. Back Wheel 21. Front Wheel 4. -
Page 8: Assembly Instructions
- Combination open end/box wrench - Phillips screwdriver Assembly Instructions Please read through and follow all instructions to ensure that your Centaur is properly assembled and ready for use. 1. Remove the bicycle from the box by cutting the plastic strapping, then cutting two sides of the box away. - Page 9 ’ – ’ – 5. Adjust the brakes. The distance between the brake shoe and the rim should not be more than 2mm. If the brake pad becomes worn, it should be replaced immediately. Read below section on brake testing. Brake Testing Squeeze the brake levers.
-
Page 10: Operating Instructions
10 hours, but do not charge for more than 20 hours. After the initial battery charge, your Centaur battery can be completely charged in 4 hours. 5. The charger will take up to 4 hours to recharge the battery completely. When the green light appears the battery is sufficiently charged. - Page 11 2. Always use your charger as instructed. 3. Do not use any other charger than the one that came with your Centaur. 4. Avoid any contact with water when recharging your battery. If a plug or socket should get wet, dry it thoroughly before proceeding.
-
Page 12: Bicycle Components
Tires Inflate your tires to the pressure embossed on the sidewall before the first use of your new bike. The recommended tire pressure for the Centaur is 40-PSI. Every time you ride, make sure that the tires are inflated according to pressure indicated on tire sidewall. - Page 13 ’ – ’ – BICYCLE COMPONENTS (continued) Handlebar and display We have created and designed this handlebar assembly so that everything you need is within easy reach and sight while riding. To adjust the height of your handlebar, loosen the stem binder bolt by turning it counterclockwise 4 or 5 turns with your Allen wrench.
-
Page 14: Bicycle Care
’ – BICYCLE CARE We recommend having your Centaur serviced once a year by a bicycle mechanic for regular bicycle maintenance in order to ensure safety and keep components in proper working order. Throughout the year, there are simple steps you can take to inspect and maintain your Centaur: 1. -
Page 15: Safety Responsibility
’ – ’ – SAFETY RESPONSIBILITY Know the laws of your state. It is your responsibility to know and obey the laws of your local area concerning the operation of an electric bicycle. In most cases, cyclists must obey the same laws that apply to motorists. This may include the use of proper protective equipment –... -
Page 16: Additional Instructions
’ – ’ – Additional Instructions: Gearshift • The gearshift is on the left hand side of the handlebar. It has 6 gear levels. • The first gear level is the slowest speed. This is the easiest to pedal. • The 6 gear level is the fastest speed. -
Page 17: Specifications
’ – ’ – SPECIFICATIONS Size 68.9 x 23.62 x 41.34 inches Wheel Size 26” wheel Bicycle Weight Including Battery 88 lbs Max speed 12 to 15 MPH Range Under Power 25 to 31 miles Battery Type/Voltage Lead Acid Battery / 36 volts Charger Power Supply Type Direct Current...
