Summary of Contents for Zanussi TCS 683 W
-

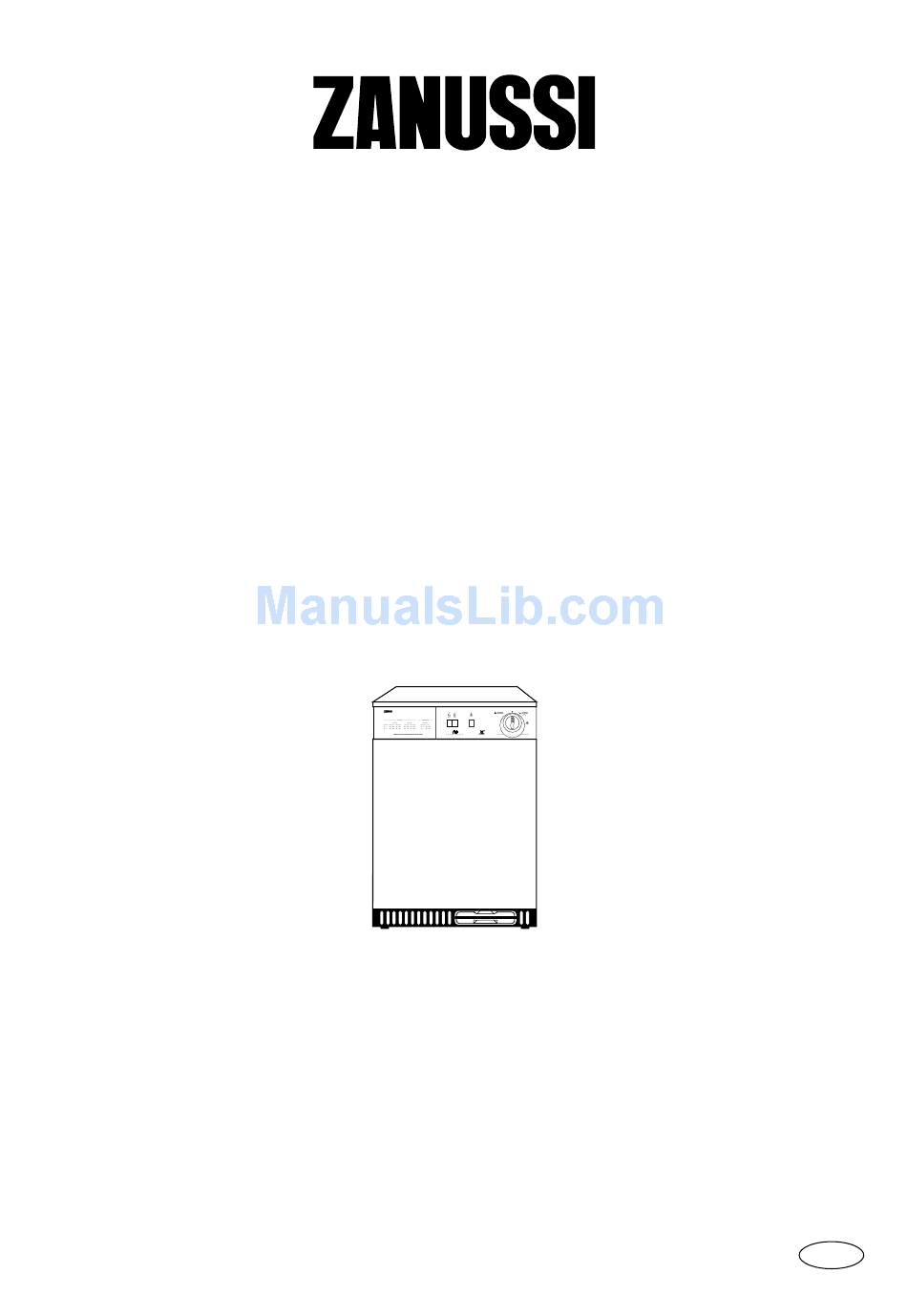

Page 1: Tumble Dryer
TUMBLE DRYER TCS 683 W CONDENSER DRYER INSTRUCTION BOOKLET 125994640... -
Page 2: Important Safety Information
Under no circumstances should you attempt to repair the machine yourself. Repairs carried out by inexperienced persons may cause injury or serious malfunctioning. Contact your local Zanussi Service Centre. Always insist on genuine Zanussi spare parts. -
Page 3: Table Of Contents
Emptying the water reservoir Something Not Working Service and Spare Parts Customer Care Guarantee Conditions Zanussi Service Force 12-13 Guide to use the Instruction Book The following symbols will be found in the text to guide you throughout the instructions: Safety instructions... -
Page 4: Your New Tumble Dryer
Your New Tumble Dryer This tumble dryer will give your wash that soft, relaxed feel whatever the weather. Extremely high quality standards both during development and manufacturing guarantee a long service life for your appliance. Maximum economy in the operation of your dryer is achieved through very frugal electricity consumption and short drying times. -
Page 5: The Control Panel
The Control Panel CONDENSER DRYER 1 Programme Chart Attention: after this operation, the dryer can remain unactive for some minutes before starting the This will help you to select the correct time for programme and during this period the water container drying. -
Page 6: Programme Chart
Programme Chart Cottons and linens Selector dial up to 150 minutes (high temperature section) Drying time in minutes for laundry spun at Amount Type of laundry: Degree of drying of laundry 800/900 rpm 1000/1200 rpm 6 kg 105-125 100-120 Cotton Store dry Towelling 5 kg... -
Page 7: Operating Sequence
Operating Sequence 4. Start the machine Before using your tumble dryer for the first time, we recommend you place a few damp cloths inside the Depress START button, the machine starts operating. appliance and dry for approximately 20 minutes. The mains-on light illuminates. There may be dust inside a brand new tumble dryer. -
Page 8: Hints & Tips On Drying
Hints & Tips on Drying Before placing articles of laundry in your tumble Always load well spun laundry. The higher the dryer, check the care labels to ensure they are spin speed the lower the electricity consumption recommended for tumble drying. and the shorter the drying time. -
Page 9: Maintenance And Cleaning
Maintenance and Cleaning Cleaning the condenser unit You must disconnect the appliance from the electricity supply, before you can carry out any Clean the air condenser periodically, 3 or 4 times a cleaning or maintenance work. year depending on how frequently the dryer is used. Pull out the condenser, holding it at the top, and External cleaning remove all fluff. -
Page 10: Something Not Working
Service & Spare Parts For general enquiries concerning your Zanussi In the event of your appliance requiring service, or if appliance or for further information on Zanussi you wish to purchase spare parts, please contact your products, please contact our Customer Care... -
Page 11: Guarantee Conditions
Standard guarantee conditions Exclusions This guarantee does not cover: We, Zanussi undertake that if, within 12 months of the date of the purchase, this Zanussi appliance or Damage or calls resulting from transportation, any part thereof is proved to be defective by reason... -
Page 12: Zanussi Service Force
08705 929 929 To contact your local Service Force Centre telephone... - Page 13 08705 929 929 To contact your local Service Force Centre telephone...
-
Page 14: Installation Instructions
Installation Instructions It is dangerous to alter the specifications or attempt to modify this product in any way. Care must be taken to ensure that the appliance does not stand on the electrical supply cable. Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. -
Page 15: G Stacking Kit (Optional Accessory)
This might cause heat build-up which would The wires in the mains lead are coloured in accordance with the following code: interfere with the operation of the appliance. Green and Yellow - Earth Important Blue - Neutral When operating the tumble dryer, the room temperature must not exceed 35°C, as it may affect Brown - Live... - Page 16 From the Electrolux Group. The world’s No. 1 choice The Electrolux Group is the world's largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, cookers, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx. USD 14 billion in more than 150 countries around the world.
