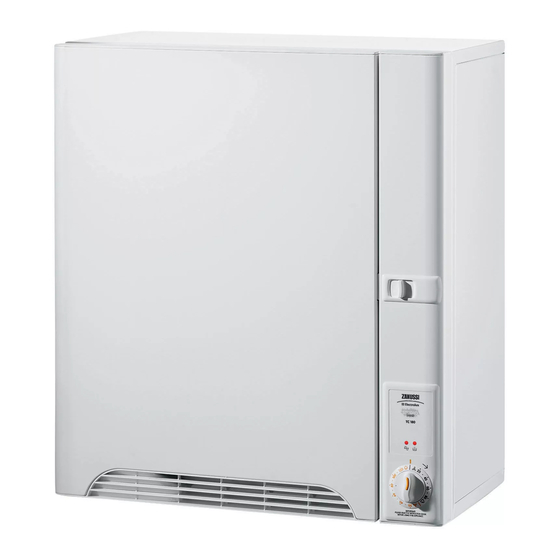

Zanussi TC 180 Instruction Booklet

Electrolux tumble dryer instruction booklet
Hide thumbs


Quick Links

TC 180
822 61 13-65


Table of Contents

  Also See for Zanussi TC 180

  Related Manuals for Zanussi TC 180

  Summary of Contents for Zanussi TC 180

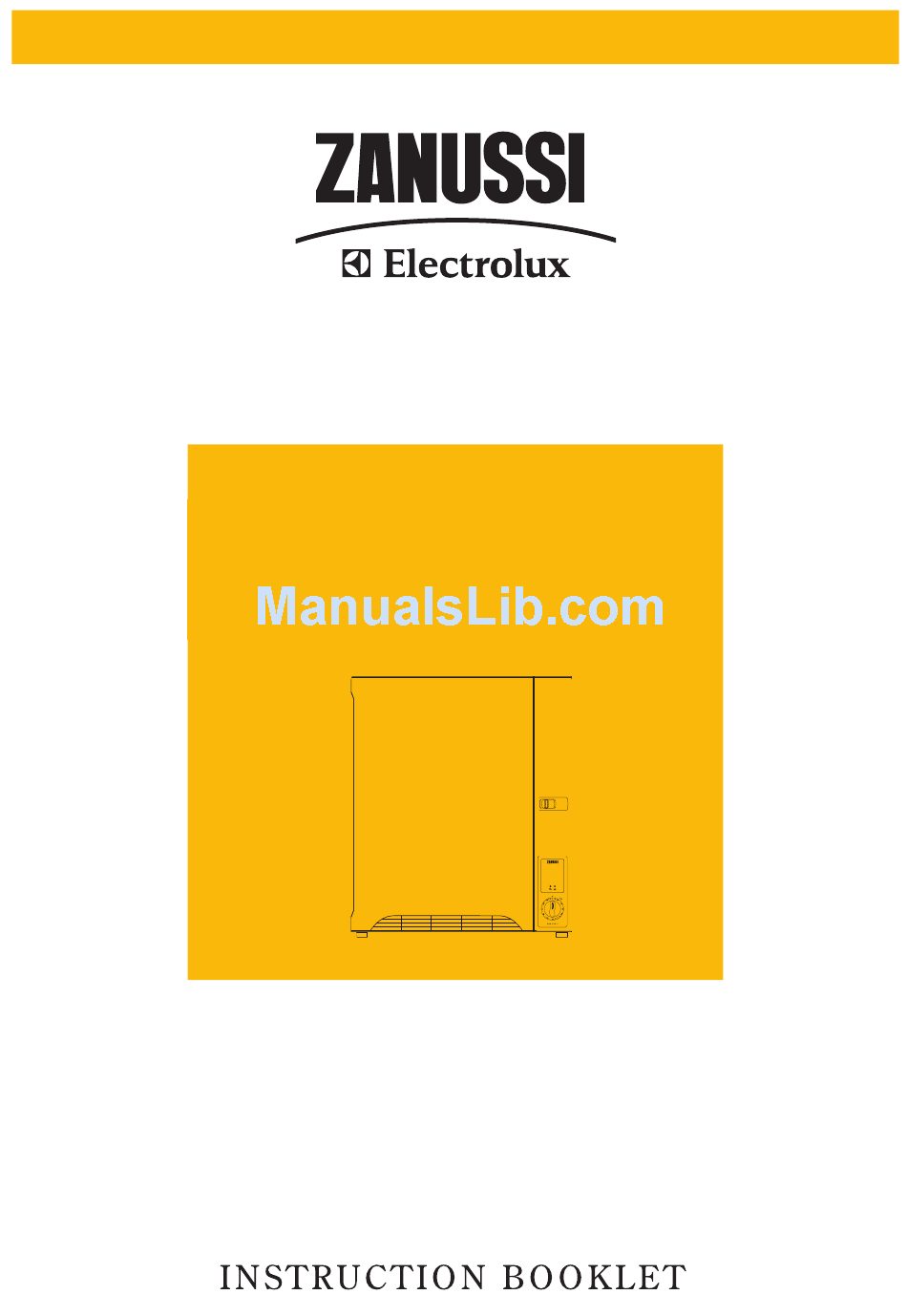

  • Page 1 TUMBLE DR YER TC 180 822 61 13-65...
  • Page 2: Table Of Contents

    Contents For the user Safety information Description of the appliance Using your appliance - Before you use the dryer for the first time - Capacity - Examples of laundry item weights Programme chart Maintenance and cleaning - The filters - The condenser - Emptying the water tank Hints &...
  • Page 3: Safety Information

    Safety information Before installing and first using the tumble dryer, read this instruction booklet carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the dryer are thoroughly familiar with its operation and safety features. Save these instructions and make sure they remain with the tumble dryer if it is moved or sold, so that everyone using it through its life can be properly informed on appliance use and safety.
  • Page 4: Description Of The Appliance

    Description of the appliance - 4 -...
  • Page 5 Door Latch (push the knob to the right to open) Avoid opening the door while a program is in progress. Space for programme chart (Self-adhesive label) Control panel with indicator lights • Lights Indicates the dryer is running Indicates that the water tank is full •...
  • Page 6: Using Your Appliance

    Using your appliance Before using the dryer for the first time Dampen some clean pieces of unwanted cloth and dry them for about 15 minutes the very first time, to make sure that there is no dust or dirt in the dryer. Check that the dryer is connected to the electrical supply.
  • Page 7: Programme Chart

    Programme chart Which programme should I use? Timed drying This programme chart is designed to help you dry your laundry correctly. The programme/timer knob has two different sections, each with its own drying temperature and time scale: is used to represent cotton. Here you can set the dryer for up to 120 minutes, because cotton and thick non-synthetic fabrics need longer to dry.
  • Page 8: Maintenance And Cleaning

    Maintenance and cleaning The filters For your tumble dryer to function correctly, the filters need to be cleaned before or after every load dried. To clean them: 1. Open the door. 2. Open the coarse filter upwards (Fig. A). 3. Brush the fluff off the fluff filter, which is under the coarse filter (Fig.
  • Page 9: Emptying The Water Tank

    Emptying the water tank A warning light on the control panel will come on when it is time to empty the water tank. If it is operating when this happens, the dryer will stop automatically until the tank is emptied. It is a good idea to get into the habit of emptying the tank either before or after each load.
  • Page 10: Hints & Tips

    Hints & Tips Sorting Always sort loads for drying according to the type of fabric (check the care labels) and how much you want to dry them. Load items loosely into the drum. Do up zip fasteners and tie loose ribbons, tapes or fabric belts. Close any tapes or fasteners on duvet covers and pillow cases to prevent smaller items from getting trapped inside.
  • Page 11: Something Not Working

    Something Not Working? Before calling out an engineer, please check through the details below because some faults can be rectified easily without the need to call out an engineer. If an engineer is called to resolve a problem listed below or to repair a fault caused by incorrect installation or mis-use a charge will be made, even if the appliance is under guarantee.
  • Page 12: Service

    Customer Care Department For general enquiries concerning your Zanussi Electrolux appliance or for further information on Zanussi Electrolux products, please contact our Customer Care Department by letter or telephone at the address below or visit our website at
  • Page 13: Guarantee Conditions

    Standard guarantee conditions We, Zanussi Electrolux, undertake that if within 12 months of the date of the purchase this ZANUSSI ELECTROLUX appliance or any part thereof is proved to be defective by reason only of faulty workmanship or materials, we will, at our option repair or replace the same FREE OF CHARGE for labour, materials or carriage on condition that: •...
  • Page 14: Technical Speciļ¬cations

    Installation instructions Any electrical work required to install this appliance should be carried out by a qualified electrician or competent person. Technical specifications DIMENSIONS WEIGHT CAPACITY ELECTRICAL DATA Consumption according to the EN 61121 European standard Energy 2,47 kWh/3,4 kg cotton The consumer information on the energy declaration is in accordance with directive EEC 92/75 and refers to the 90 minute programme.
  • Page 15: Unpacking The Machine

    Unpacking the machine Damages If the dryer has been damaged during transport, you should immediately notify the company responsible for delivering it. Check that the dryer is undamaged. If you discover any damage, faults or that anything is missing, you should notify the dealer immediately.
  • Page 16: Installation

    Installation Positioning You can install this dryer in a number of different ways. We will show you the most suitable of these. Whichever way you install it, here are some points to bear in mind: • Always ensure that the dryer is level for optimum functioning.
  • Page 17: Wall Mounting

    Wall mounting Different wall materials require different types of mounting hardware. Purchase mounting hardware suited to the walls in your home. Use a minimum of 3 suitable fasteners to attach your mounting console to the wall. Before deciding on the wall mounting site, it is important to check that the electrical lead will reach the wall socket once the dryer is in place.
  • Page 18: Installation

    Power supply The dryer is supplied with a lead and electrical plug for connection to a 230 V, 13 A earthed wall socket. Before any work is carried out on the dryer, it must be isolated from the electric mains supply, for example by removing the plug from the wall socket.
  • Page 19 © Electrolux plc 2006...
