  • Page 1 48586S00E101-R0...

  • Page 2: Instruction Manual

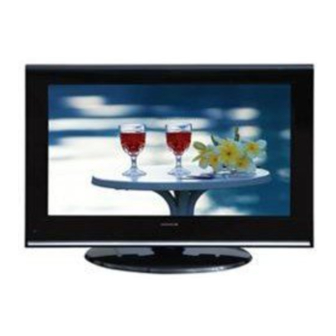

    LCD TELEVISION INSTRUCTION MANUAL LV32L1B1LM LV32L1B1SM LV42L1B1LM LV42L1B1LF LV42L1B1LZ I M P O RTA N T I N F O R M AT I O N If a television is not positioned in a sufficiently stable location, it can be potentially hazardous due to falling.
  • Page 3 Caution CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION : TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”...

  • Page 4: Power Source

    Important Safeguards Please read the following safeguards for your TV and retain for future reference. Always follow all warnings and instructions marked on the television. 1. Read, Retain and Follow All Instructions Read all safety and operating instructions before operating the TV. Retain them safely for future reference.

  • Page 5: Replacement Parts

    Important Safeguards 13. Power Lines An outside antenna system should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
  • Page 6 Warning This section must be read carefully and followed by the user prior to the operation of the product. The manual states important instructions for the user's own safety, and the proper operation of the product. Ignoring or disregarding the contents of this section and improper Warning operation of the product may result in the person's death or serious injury.
  • Page 7 Warning This section must be read carefully and followed by the user prior to the operation of the product. The manual states important instructions for the user's own safety, and the proper operation of the product. Ignoring or disregarding the contents of this section and improper operation Caution of the product may result in the person's death or serious injury.

  • Page 8: Table Of Contents

    Table of Contents Installation and Maintenance Supplied Accessories Stand Construction Antenna Connection Video Connection Camcorder & Video Game Connection DVD Player Connection STB(Set Top Box) Connection PC Connection Resolution Table Cable TV Broadcasting Connection Connect with the Home theater Name of Each Part Basic Guide Parts of the Remote Controller Method To Use Basic Menu...

  • Page 9: Supplied Accessories

    Supplied Accessories Make sure that the following accessories are provided with the product. AC cord Instruction manual Remote controller Batteries...

  • Page 10: Stand Construction

    Stand Construction Stand Assy Construction 1. Fix a cover frame stand to the stand assy base. 2. Fix a frame stand to the stand assy. 3. Assemble plate stand base and frame stand with screw 4EA. When attaching stand to TV set, be sure to cover the surface to protect from accidental damage.

  • Page 11: Antenna Connection

    Antenna Connection Indoor Antenna Connection 1. Connect the feeder cable of the antenna to the combining adapter. WHEN THE IMAGE IS NOT CLEAR : Unclear screen image and bad reception may be a cause of wrong antenna connection. Be sure to check its direction and place when installing.
  • Page 12 Antenna Connection CTV Antenna Connection Such community TV Antenna installation may be found in most of co-op apartments. When a coaxial cable is used : Plug the coaxial cable to the antenna socket, and fix it firmly by turning it to the right.
  • Page 13 Antenna Connection Outdoor Antenna Connection Outdoor Antenna connection-such as VHF or/and UHF-may be necessary for installation at private houses Single Antenna Connection VHF Antenna UHF Antenna ANT/CABLE Separate Antenna Connection. ANT/CABLE...

  • Page 14: Video Connection

    Video Connection Connecting with an External Source AV INPUT MONITOR OUT Connecting with the Monitor Out. 1. Prepare the RCA cable for picture / sound. 2. Connect the RCA to Monitor out terminal of TV set. 3. Connect the RCA to AV input terminal of other TV set. 4.

  • Page 15: Camcorder & Video Game Connection

    Camcorder & Video Game Connection Watching the Camcorder Recording on TV 1. Prepare the RCA connector. 2. These connectors connect to AV as shown in the picture below. 3. Turn on the TV set and camcorder/video game. 4. Select AV mode, using the ”TV/AV” button of the Remote controller. AV INPUT MONITOR OUT Video game...

  • Page 16: Dvd Player Connection

    DVD Player connection When connecting with a component cable AV INPUT MONITOR OUT COMPONENT INPUT OPTICAL Note : • When you connect with the component video, please check the colour of the cable between the DVD and TV set. When connecting with a RCA cable AV INPUT MONITOR OUT...

  • Page 17: Stb(Set Top Box) Connection

    STB(Set Top Box) Connection When connecting with a HDMI cable AV INPUT MONITOR OUT COMPONENT INPUT OPTICAL Set Top Box When connecting with a component cable AV INPUT MONITOR OUT COMPONENT INPUT OPTICAL Set Top Box...

  • Page 18: Pc Connection

    Connection When connecting with PC(D-Sub) cable. 1. First adjust resolution of the PC. (Refer to table in page 18.) 2. Connect between PC and TV set using the D-sub and Audio cable as shown in the picture below. 3. Turn on the PC and TV set. 4.

  • Page 19: Resolution Table

    Resolution Table NOTES : 1) If there is a [Vertical Frequency] setting menu in the [Display] Menu of the PC, adjust the frequency to 60Hz. 2) If the PC resolution is too high, it may be hard to detect signals. Select a suitable resolution. 3) HDMI input port receives only digital Signal.

  • Page 20: Cable Tv Broadcasting Connection

    Cable TV Broadcasting Connection External Input Connection Source Watching cable television is only possible after you have subscribed to the local broadcasting company and installed a cable receiver. You may make the connection to any of the Component and AV input. AV INPUT MONITOR OUT COMPONENT...

  • Page 21: Connect With The Home Theater

    Connect with the Home theater If you connect the optical output to a Home theater, you can listen to better sound. AV INPUT MONITOR OUT COMPONENT INPUT OPTICAL Optical output Home theater Woofer Center Surround L Surround R Note • If you want to connect TV and home theater system, you need optical cable(option). •...

  • Page 22: Name Of Each Part

    Name of Each Part Front / Side Panel Buttons on the TV set have the same functions as those of the remote controller. Front Panel Side Panel (Right) Control Key Buttons. Buttons : Each time you press this button, the TV will cycle through: DTV --> TV --> COMPONENT -->...
  • Page 23 Name of Each Part Rear Panel AV INPUT MONITOR OUT COMPONENT INPUT OPTICAL...

  • Page 24: Parts Of The Remote Controller

    Parts of the Remote Controller 1. POWER : TV on/off button in Stand-By mode. 2. TV/AV : Press this button to change mode. 3. TELETEXT : These buttons are used in teletext mode. (see the Teletext page). TV/TXT : Turn off/on the Teletext display. CANCEL : Cancel the Teletext display.
  • Page 25 Parts of the remote controller 14. Sound : Uses this button to change the sound mode. 15. NICAM/A2 : You can select sound mode in Mono, Stereo, Dual1, Dual2 stereo It works only in TV mode. 16. Mute : Press this button, and the sound goes off. Press again, and the sound returns.

  • Page 26: Method To Use Basic Menu

    Method To Use Basic Menu Basic Menu - The basic menu appears on the screen if you press the “MENU” button of the remote control. - There are 6 items CHANNEL, PICTURE, SOUND, TIMER, OPTION and LOCK menu. - Each item has sub-items under it. If the desired item is selected, the relevant sub-items are displayed upward. 1.

  • Page 27: To Watch Tv

    To Watch TV On/Off, Number, Mute, OK, +CH- - Buttons with same name in the front side of the set performs the same function. Press the " " button of the front side of the set or Remote controller. • The buttons of the remote control or the front side of the set operate only when AC power is turned on.
  • Page 28 To Watch TV 1. Turning on the TV. • Plug the AC lead into a power outlet. • Press “ ” button of the front side of the set or “POWER” button on the remote control. 2. Adjust program. • Select the desired program by pressing the “+CH-” button or the number button.

  • Page 29: Setting Up Tv Stations

    Setting Up TV Stations Auto Tuning - At the first-time power on, Installation Guide menu will be displayed. - All stations that can be received are stored by this method. It is recommended that you use Auto tuning during installation of this set. 1.
  • Page 30 Setting Up TV Stations Manual tuning 1. Digital TV Manual Tuning. It is used to confirm signal strength or specific CHANNEL Channel frequency. Auto Tuning • Press the “MENU” button to select the Channel menu. DTV Manual Tuning ▶ • Move to the Channel menu with “◀/▶“ buttons. ATV Manual Tuning •...

  • Page 31: Program Edit

    Setting Up TV Stations Program Edit Programme Edit Analog channel edit supports all of Delete, Rename, CHANNEL Move, Skip, Favorite channel functions. But digital channel edit supports only 3 functions of Delete, Skip, Auto Tuning DTV Manual Tuning Favorite channel. ATV Manual Tuning Programme Edit ▶...

  • Page 32: Selection Of Av And Multimedia Input Signal

    Selection of AV and Multimedia Input Signal When watching video, Camcorder, DVD, Cable TV with AV - Connect the external devices as an above pages. - Change the mode connected the device using TV/AV button. 1. Pressing the TV/AV button on the remote controller. Input Source ABC TV Sydney Component...

  • Page 33: Screen Adjustment

    Screen Adjustment When setting up various screen modes - The user may select various screens designed for a good picture without adjusting the brightness, contrast or color individually. 1. Select "Picture" by pressing the 'MENU" button. PICTURE 2. Move to the "Picture Mode" using ”▼/▲” button, and press ”◀/▶”...
  • Page 34 Screen Adjustment When adjusting the screen to taste - You can enjoy various screens by adjusting Brightness, Contrast, Color, Sharpness, etc to the user’s taste. - To change each of Brightness, Contrast, Color, Sharpness, etc, User mode should be selected. 1.
  • Page 35 Screen Adjustment Adjustment of Screen Size in TV and AV mode - Randomly change the size of the screen. - The AUTO screen operates when power is first turned on. PICTURE 1. Select "Screen" by pressing the "MENU" button and Color Temperature Medium move to "Aspect Ratio"...
  • Page 36 Screen Adjustment Adjustment of the screen in the PC mode Do each function you want as followings. • Press the ”MENU” button to select the PICTURE menu. PICTURE • Move the selection bar to SCREEN with ”▼/▲” buttons. Screen ▶ •...
  • Page 37 Screen Adjustment Sound Mode, Balance, Surround Mode Do each function you want as followings. • Select "SOUND" by pressing the "MENU" and SOUND ”◀/▶”button. Sound Mode Standard Treble Bass 1. Select Sound mode. Balance • Move to the "SOUND" mode using ”▼/▲” button, Auto Volume Surround Sound and press ”◀/▶”...

  • Page 38: Sound Adjustment

    Sound Adjustment Multi-Sound and Stereo (Analog TV mode only) 1. Mono Sound Selection • During Stereo sound reception if the stereo is weak, you can switch to MONO by pressing the NICAM/A2 button. In Mono reception the depth of sound is improved. •...

  • Page 39: Selection Of Language

    Selection of Language Selection of Language When you first turn on the TV set, the window of language selection is displayed automatically. 1. Menu Language set up. • Press the "MENU" button and select "OPTION". OPTION • Move to Language using ”▼/▲” button, and press ”◀/▶”...

  • Page 40: Adjustment Of Time

    Adjustment of Time Adjustment of Time - You must previously adjust current time in order to reserve Automatic On/Off. 1. Set up Off Time. • Press the "MENU" button and select "TIME". • Move to Off Time using “▼/▲” button, and then set TIME up Repeat, Hour, Minute using “◀/▶”...

  • Page 41: Adjustment Of Lock

    Adjustment of Lock Adjusting of LOCK - Each function of Lock system, Block Program, Digital Parental Guidance works respectively. - Parental Control can be used to easily block specific channels using ratings of digital stations. - Lock system of LOCK menu means Auto/Manual tuning lock. - Although block program was set-up, specific lock channel is unlock after Auto/Manual tuning.
  • Page 42 Adjustment of Lock Adjusting of LOCK Note. • Digital Parental Guidance is supported in only digital TV mode. • Rating guidelines are provided by broadcasting stations. Most television programs and television movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown at the theaters or direct-to video movies use the Movie Rating System (MPAA)only.
  • Page 43 Adjustment of Lock Adjusting of LOCK 4. Set up Hotel Lock. • Press the “MENU“ button and select "LOCK". To enter LOCK of HOTEL LOCK OSD Menu, Password should be pressed. • Move to HOTEL LOCK using “▼/▲” button, and then press “OK“ HOTEL LOCK ◀...

  • Page 44: Program Guide

    Programme Guide Programme Guide (EPG) - You can check the channel information using function of electric program guide. - Only Digital broadcast supports EPG information. 1. Enter the EPG menu. PROGRAMME GUIDE ABC TV Sydney • Press EPG button on the remote controller. 24 May 2005 17:10 17:00 - 17:30 ABC News...

  • Page 45: Teletext

    Teletext Teletext SWITCHING TELETEXT ON/OFF Each time you press TV/TXT on the remote controller, the screen changes as follows ; TV mode --> Teletext mode --> Picture and teletext --> TV mode. Note. • Teletext works only at TV mode or AV(CVBS). •...

  • Page 46: Troubleshooting

    Troubleshooting Symptoms and Solutions Please check the following list prior to calling Daewoo Electronics Service Centre for assistance. Symptom Check items Neither picture - Check the contact of sockets is all right. nor sound - Check the TV main power is on.
  • Page 47 Troubleshooting In PC mode Symptom Check items “OUT OF RANGE” - Check the resolution and frequency of your PC. Then, adjust them appears on the to optimum condition for LCD TV. screen - Refer to the table of PC mode input format (If registered resolution and frequency on the table no listed then no picture OUT OF RANGE will be displayed.)

  • Page 48: Standard Of Product

    Standard of Product Power Consumption The remarked back of product TV System PAL B/G, D/K, I/I, SECAM B/G, D/K, NTSC(AV) Power Source 220-240V, 50-60Hz ♥ Owing to our policy of continuous improvement, specifications may change.
