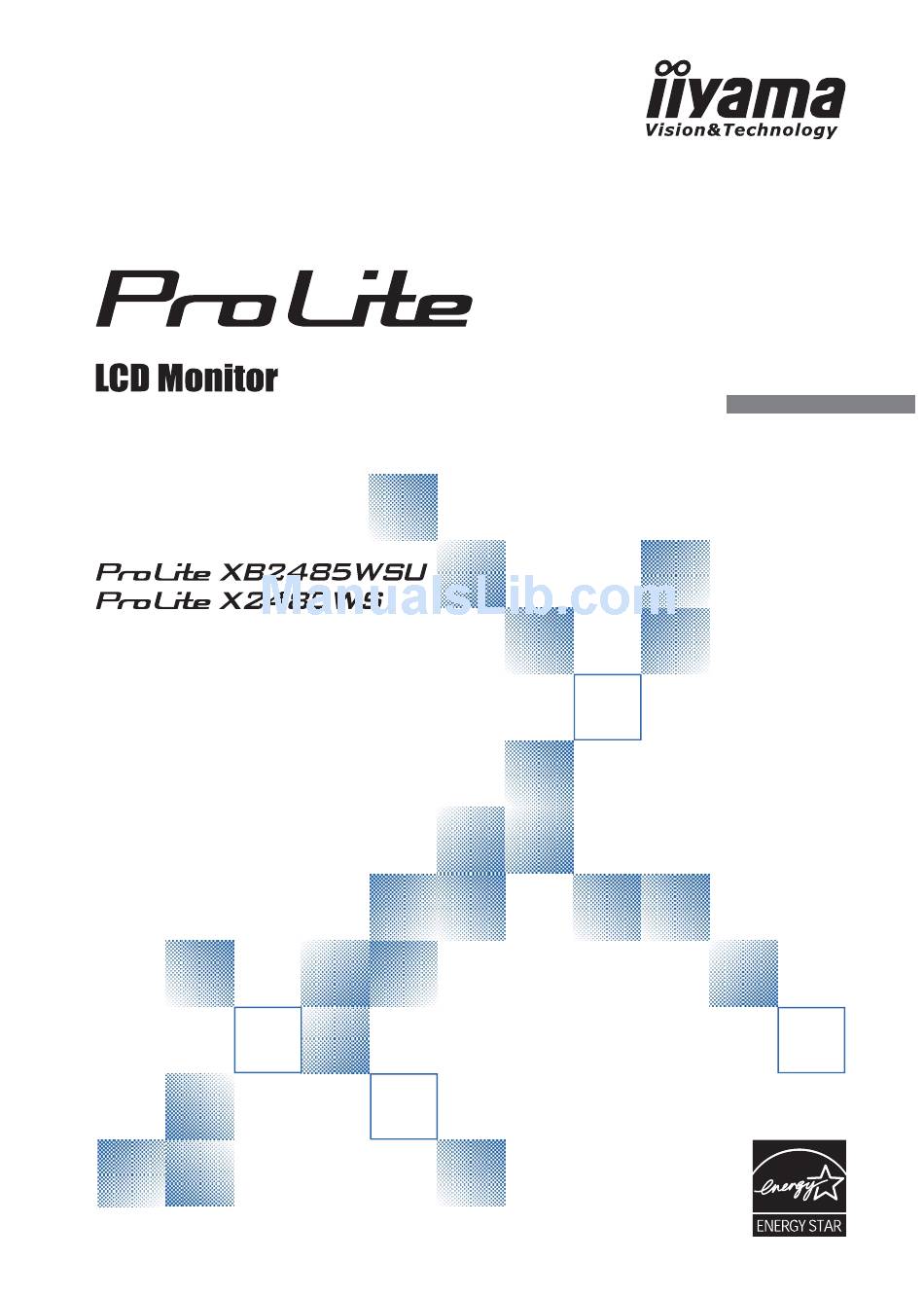

Page 1: User Manual
USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe... - Page 3 Congratulations! This display is designed for both you and the planet! The display you have just purchased carries the TCO Certified label. This ensures that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on the climate and our natural environment.
-
Page 4: Ce Marking Declaration Of Conformity
For displays with glossy bezels the user should consider the placement of the display as the bezel may cause disturbing refl ections from surrounding light and bright surfaces. We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com... -
Page 5: Table Of Contents
FEATURES ..................4 CHECKING THE CONTENTS OF THE PACKAGE ......4 WALL MOUNTING ................5 FITTING AND REMOVAL OF BASE : ProLite XB2485WSU ..6 FITTING AND REMOVAL OF BASE : ProLite X2485WS ....7 CONTROLS AND CONNECTORS : ProLite XB2485WSU ...8 CONTROLS AND CONNECTORS : ProLite X2485WS ....9 CONNECTING YOUR MONITOR : ProLite XB2485WSU ..10... -
Page 6: For Your Safety
STOP OPERATING THE MONITOR IF YOU ARE AWARE OF ANY PROBLEMS If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fi re or electric shock. - Page 7 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 8: Special Notes On Lcd Monitors
Power Switch for some hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, fl ickering or not lighting up. Never attempt to replace it by yourself. -
Page 9: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 10: Wall Mounting
WALL MOUNTING When you use with the wall mounting, in consideration of thickness of the mounting WARNING stage, tighten the M4 Screw with washer which “L” length is 10mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 11: Fitting And Removal Of Base : Prolite Xb2485Wsu
FITTING AND REMOVAL OF BASE : ProLite XB2485WSU Put the monitor on a stable surface. The monitor may cause injury or damage if it CAUTION falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. -
Page 12: Fitting And Removal Of Base : Prolite X2485Ws
FITTING AND REMOVAL OF BASE : ProLite X2485WS Put the monitor on a stable surface. The monitor may cause injury or damage if it falls CAUTION or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 13: Controls And Connectors : Prolite Xb2485Wsu
CONTROLS AND CONNECTORS : ProLite XB2485WSU <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( Menu Button (MENU) Scroll Up / Volume Button ( Scroll Down / ECO Button ( Auto Button (AUTO) Headphone connector (... -
Page 14: Controls And Connectors : Prolite X2485Ws
CONTROLS AND CONNECTORS : ProLite X2485WS <Front> <Back> Power Indicator NOTE Blue: Normal operation Orange: Power Management Power Switch ( Menu Button (MENU) Scroll Up / Volume Button ( Scroll Down / ECO Button ( Auto Button (AUTO) Headphone connector ( Speakers DVI-D 24pin Connector (DVI) D-SUB mini 15pin Connector (D-SUB) -
Page 15: Connecting Your Monitor : Prolite Xb2485Wsu
The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama offi... -
Page 16: Connecting Your Monitor : Prolite X2485Ws
The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama offi... -
Page 17: Computer Setting
Change to the desired signal timing listed on page 31: COMPLIANT TIMING. Windows 95/98/2000/Me/XP/Vista/7 Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP/Vista/7 by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 18: Adjusting The Height And The Viewing Angle : Prolite Xb2485Wsu
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite XB2485WSU For optimal viewing it is recommended to position yourself directly opposite to the full face of the monitor, then adjust the monitor’s height and angle to your own preference. -
Page 19: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 31. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 22 for SCREEN ADJUSTMENTS. -
Page 20: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Picture Picture Brightness Contrast Display H.Position Audio Settings V.Position Miscellaneous Phase Information Clock Color Temp 6500 Auto Adjust 1920x1200 Adjustment Item Problem / Option Button to Press Too dark 1,5,6 Brightness* Too bright Too dull Contrast * Too intense Too left H. - Page 21 Adjust the Brightness when you are using the monitor in a dark room and feel the screen is too bright. See page 22 for SCREEN ADJUSTMENTS. Only Analog Input. For best results, use the Auto Adjust in conjunction with the adjustment pattern. See page 22 for SCREEN ADJUSTMENTS.
- Page 22 Picture H.Position V.Position Display OSD Timeout Audio Settings Transparency Miscellaneous Information 1920x1200 Adjustment Item Problem / Option Button to Press OSD is too left H.Position OSD is too right OSD is too low V.Position OSD is too high You can set the OSD display duration time OSD Timeout between 5 and 30 seconds.
- Page 23 Display Picture Display Mode Full Standard i-Style Color Display Adv. Contrast Audio Settings ECO Mode Miscellaneous Sharpness Information Over Drive Gamma 1920x1080 Adjustment Item Problem / Option Button to Press Expansion display Full Display Mode Aspect Expansion display of Aspect Displayed at the same magnifi...
-
Page 24: Audio Settings
Audio Settings Picture Volume Mute Display Audio Input Line in Audio Settings Miscellaneous Information 1920x1200 Adjustment Item Problem / Option Button to Press Too soft Volume Direct Too loud Turn off the sound temporarily. Mute Return the sound volume to the previous level. Line in Select the LINE IN input. - Page 25 In Power Management Mode input switching is disabled. Input source is fi xed, not selected automatically when VGA, DVI and Display Port which are selected. iiyama Logo displayed when the monitor is turned on. Opening Logo iiyama Logo does not display when the monitor is turned on.
- Page 26 Information Picture Display 1920x1200 Audio Settings H:74kHz V:60Hz Miscellaneous Auto Information SN: xxxxxxxxxxxxx 1920x1200 Adjustment Item Problem / Option Button to Press Displays information regarding the current input signal coming from the graphic card in your computer. Information NOTE See your graphic card user guide for more information about changing the resolution and refresh.
-
Page 27: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http://www. iiyama.com). - Page 28 C Press the Auto Button. (Auto Adjust) D Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. E Adjust the V.Position so that the top and bottom of the picture frame will fi...
- Page 29 G Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. In case the strong fl icker or blurs remain on a part of the screen, repeat steps F and NOTE G because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from C again.
-
Page 30: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 31: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 32: Recycling Information
The Audio Cable is properly connected. A strange noise is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 27... -
Page 33: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite XB2485WSU Size Category 24.1" LCD Panel Panel technology IPS Size Diagonal: 24.1" (61.13cm) Pixel pitch 0.27mm H × 0.27mm V Brightness 300cd/m (Typical) Contrast ratio... -
Page 34: Specifications : Prolite X2485Ws
SPECIFICATIONS : ProLite X2485WS Size Category 24.1" LCD Panel Panel technology IPS Size Diagonal: 24.1" (61.13cm) Pixel pitch 0.27mm H × 0.27mm V Brightness 300cd/m (Typical) Contrast ratio 1000 : 1 (Typical) Viewable angle Right / Left: 89 degrees each, Up / Down: 89 degrees each (Typical) Response time 5ms (Gray to Gray)* Display Colours... -
Page 35: Dimensions Prolite Xb2485Wsu
DIMENSIONS : ProLite XB2485WSU 561.0mm/22.1” 51.0mm/2.0” 520.0mm/20.5” ) : Maximum adjustment range DIMENSIONS : ProLite X2485WS 561.0mm/22.1” 51.0mm/2.0” 520.0mm/20.5” 234.5mm/9.2” 30 APPENDIX... -
Page 36: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Dot Clock Video Mode Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 37.500kHz 75.000Hz 31.500MHz 640 × 480 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz 40.000MHz 37.879kHz 60.317Hz SVGA 800 × 600 46.875kHz 75.000Hz 49.500MHz 48.077kHz 72.188Hz 50.000MHz 48.363kHz 60.004Hz 65.000MHz VESA 1024 ×...
