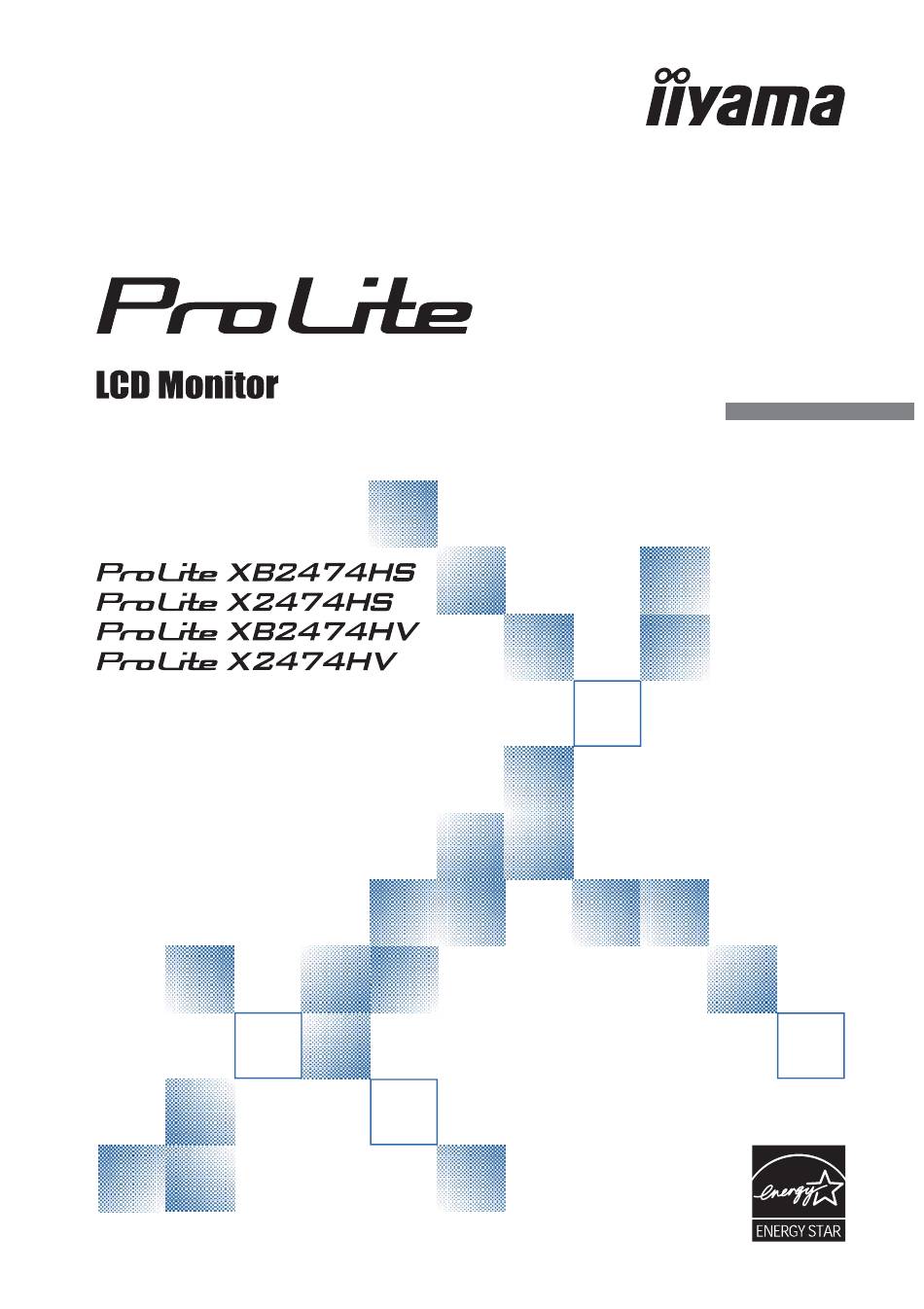

- Page 1 USER MANUAL ENGLISH Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a...
- Page 3 IIYAMA CORPORATION: Wijkermeerstraat 8, 2131 HA Hoofddorp, The Netherlands Model No. : PL2474H We recommend recycling of used product. Please contact your dealer or iiyama service center. Recycle information is obtained via the Internet, using the address: http://www.iiyama.com You can access the Web page of diff...
-
Page 4: Table Of Contents
ProLite X2474HS / ProLite X2474HV ..........12 ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite XB2474HS / ProLite XB2474HV ........13 PANEL ROTATION : ProLite XB2474HS / ProLite XB2474HV ..13 OPERATING THE MONITOR .............14 ADJUSTMENT MENU CONTENTS ..........15 SCREEN ADJUSTMENTS ............22 POWER MANAGEMENT FEATURE ..........25... -
Page 5: For Your Safety
Do not put any solid objects or liquids such as water into the monitor. In case of an accident, unplug your monitor immediately and contact your dealer or iiyama service center. Using the monitor with any object inside may cause fi re, electric shock or damage. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fi re, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
CUSTOMER SERVICE If you have to return your unit for service and the original packaging has been NOTE discarded, please contact your dealer or iiyama service center for advice or replacement packaging. CLEANING If you drop any materials or liquids such as water into the monitor when cleaning, WARNING unplug the power cable immediately and contact your dealer or iiyama service center. -
Page 8: Before You Operate The Monitor
CHECKING THE CONTENTS OF THE PACKAGE The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama offi ce. -
Page 9: Wall Mounting
WALL MOUNTING WARNING When you use with the wall mounting, in consideration of thickness of the mounting stage, tighten the M4 Screw with washer which “L” length is 7mm to fasten the monitor. Using the screw longer than this may cause electric shock or damage because it may contact with the electrical parts inside the monitor. -
Page 10: Fitting And Removal Of Base : Prolite Xb2474Hs / Prolite Xb2474Hv
FITTING AND REMOVAL OF BASE : ProLite XB2474HS / ProLite XB2474HV CAUTION Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. -
Page 11: Fitting And Removal Of Base : Prolite X2474Hs / Prolite X2474Hv
FITTING AND REMOVAL OF BASE : ProLite X2474HS / ProLite X2474HV CAUTION Put the monitor on a stable surface. The monitor may cause injury or damage if it falls or is dropped. Do not give a strong impact to the monitor. It may cause damage. ... -
Page 12: Controls And Connectors : Prolite Xb2474Hs / Prolite Xb2474Hv
CONTROLS AND CONNECTORS : ProLite XB2474HS / ProLite XB2474HV <Front> <Back> Power Switch ( Power Indicator Blue: Normal operation NOTE Orange: Power Management Input select* / Select Button (INPUT* /SELECT)* Scroll up / Audio Adjust* Button ( Scroll down / i-Style Color Button (... -
Page 13: Controls And Connectors : Prolite X2474Hs / Prolite X2474Hv
CONTROLS AND CONNECTORS : ProLite X2474HS / ProLite X2474HV <Front> <Back> Power Switch ( Power Indicator Blue: Normal operation NOTE Orange: Power Management Input select* / Select Button (INPUT* /SELECT)* Scroll up / Audio Adjust* Button ( Scroll down / i-Style Color Button ( / i )* Menu / Exit Button (MENU/EXIT) Speakers*... -
Page 14: Connecting Your Monitor : Prolite Xb2474Hs / Prolite Xb2474Hv
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 15: Connecting Your Monitor : Prolite X2474Hs / Prolite X2474Hv
An incorrect connection may cause serious damage to both the monitor and the computer. The cable supplied with the monitor is for a standard connector. If a special cable is required please contact your local iiyama dealer or regional iiyama offi ce. -
Page 16: Computer Setting
COMPUTER SETTING Signal Timing Change to the desired signal timing listed on page 33: COMPLIANT TIMING. ADJUSTING THE VIEWING ANGLE : ProLite X2474HS / ProLite X2474HV For optimal viewing it is recommended to look at the full face of the monitor. -
Page 17: Adjusting The Height And The Viewing Angle : Prolite Xb2474Hs / Prolite Xb2474Hv
45° 45° base when adjusting the height. Monitor Stand PANEL ROTATION : ProLite XB2474HS / ProLite XB2474HV Adjust the monitor’s height. Rotate the panel 90 degrees. Portrait: Turn clockwise. Landscape: Turn counter clockwise. Attempting to rotate without fully extending NOTE 90°... -
Page 18: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 33. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 22 for SCREEN ADJUSTMENTS. -
Page 19: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Auto Image Adjust Auto Image Adjust Only Analog Input Adjustment Item Problem / Option Button to Press Auto Image Adjust * Adjust H. / V. Position, Clock and Phase automatically. Direct * For best results, use the Auto Image Adjust in conjunction with the adjustment pattern. See page 22 for SCREEN ADJUSTMENTS. - Page 20 Picture Adjust Picture Adjust Adjustment Item Problem / Option Button to Press Too dull Contrast * Too intense Too dark Brightness * Too bright Off Typical Contrast Ratio Adv. Contrast * Increased Contrast Ratio Off Normal Brightness of back-light is reduced. ECO Mode * Brightness of back-light is reduced more than 1.
- Page 21 Input Select * Direct Input Select Adjustment Item Problem / Option Button to Press Select the VGA input. HDMI Select the HDMI input. Input Select DisplayPort Select the DisplayPort input. Search for an available input source and select Auto automatically. Input source is fi...
- Page 22 Color Adjust * Color Adjust Adjustment Item Problem / Option Button to Press Cool Bluish white Normal Greenish white Reddish white Warm Too weak User Color Green Too strong Blue Return to a state set by color adjustment except Off i-Style Color.
- Page 23 Manual Image Adjust Manual Image Adjust Adjustment Item Problem / Option Button to Press Too left H. Position Too right H./V. Position * Too low V. Position Too high Too narrow Clock * Too wide Phase * To correct fl ickering text or lines 1 2 3 4 5 You can change the picture quality from 1 to 5 (soft to sharp).
- Page 24 5 / 15 / 30 / 60 seconds Off Retune the background of OSD. OSD Background* The background of OSD is made transparent. iiyama Logo does not display when the monitor is Off turned on. Opening Logo* iiyama Logo displayed when the monitor is turned on.
- Page 25 ● Lock Mode <OSD Menu> 1. The OSD lock will be activated by pressing the front buttons MENU and for about 10 seconds. If you try to access the OSD by pressing any of the buttons MENU, and SELECT, message "OSD Locked"...
-
Page 26: Screen Adjustments
If the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com). - Page 27 Pressing and holding of the Button for about 2 seconds. (Auto Image Adjust) Adjust the image manually by following procedure below when the screen has a fl icker or blur, or the picture does not fi t in the display area after performing the Auto Image Adjust. Adjust the V.Position so that the top and bottom of the picture frame will fi...
- Page 28 Adjust the Phase to correct horizontal wavy noise, fl icker or blur in the zebra pattern. NOTE In case the strong fl icker or blurs remain on a part of the screen, repeat steps because the Clock may not be adjusted correctly. If the fl icker or blurs still remain, set the refresh rate of computer to low (60Hz) and repeat steps from again.
-
Page 29: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of ENERGY ® STAR and VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. -
Page 30: Trouble Shooting
MONITOR or if the problem persists. 3. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... -
Page 31: Recycling Information
A strange noise The Audio Cable is properly connected. is heard. RECYCLING INFORMATION For better environment protection please don't dispose your monitor. Please visit our web site: www.iiyama.com/recycle for monitor recycling. TROUBLE SHOOTING / RECYCLING INFORMATION 27... -
Page 32: Appendix
APPENDIX Design and specifi cations are subject to change without prior notice. SPECIFICATIONS : ProLite XB2474HS Size Category 24" Panel technology Size Diagonal: 23.6" (60cm) Pixel pitch 0.272mm H × 0.272mm V Brightness 250cd/m (Typical) Panel Contrast ratio 3000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down: 89 degrees each (Typical) Response time... -
Page 33: Specifications : Prolite X2474Hs
SPECIFICATIONS : ProLite X2474HS Size Category 24" Panel technology Size Diagonal: 23.6" (60cm) Pixel pitch 0.272mm H × 0.272mm V Brightness 250cd/m (Typical) Panel Contrast ratio 3000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down: 89 degrees each (Typical) Response time 4ms (Gray to Gray) Display Colors... -
Page 34: Specifications : Prolite Xb2474Hv
SPECIFICATIONS : ProLite XB2474HV Size Category 24" Panel technology Size Diagonal: 23.6" (60cm) Pixel pitch 0.272mm H × 0.272mm V Brightness 250cd/m (Typical) Panel Contrast ratio 3000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down: 89 degrees each (Typical) -
Page 35: Specifications : Prolite X2474Hv
SPECIFICATIONS : ProLite X2474HV Size Category 24" Panel technology Size Diagonal: 23.6" (60cm) Pixel pitch 0.272mm H × 0.272mm V Brightness 250cd/m (Typical) Panel Contrast ratio 3000 : 1 (Typical), Adv. Contrast Function Available Viewable angle Right / Left : 89 degrees each, Up / Down: 89 degrees each (Typical) Response time 4ms (Gray to Gray) Display Colors... -
Page 36: Dimensions : Prolite Xb2474Hs / Prolite Xb2474Hv
DIMENSIONS : ProLite XB2474HS / ProLite XB2474HV 547.5mm/21.6” 41.0mm/1.6” 523.5mm/20.6” 250.0mm/9.8” ) : Maximum adjustment range DIMENSIONS : ProLite X2474HS / ProLite X2474HV 547.5mm/21.6” 41.0mm/1.6” 523.5mm/20.6” 200.0mm/7.8” 32 APPENDIX... -
Page 37: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 37.861kHz 72.809Hz 31.500MHz 35.156kHz 56.250Hz 36.000MHz SVGA 800 × 600 37.879kHz 60.317Hz 40.000MHz 46.875kHz 75.000Hz 49.500MHz 48.363kHz 60.004Hz 65.000MHz 1024 × 768 56.476kHz 70.069Hz 75.000MHz...
