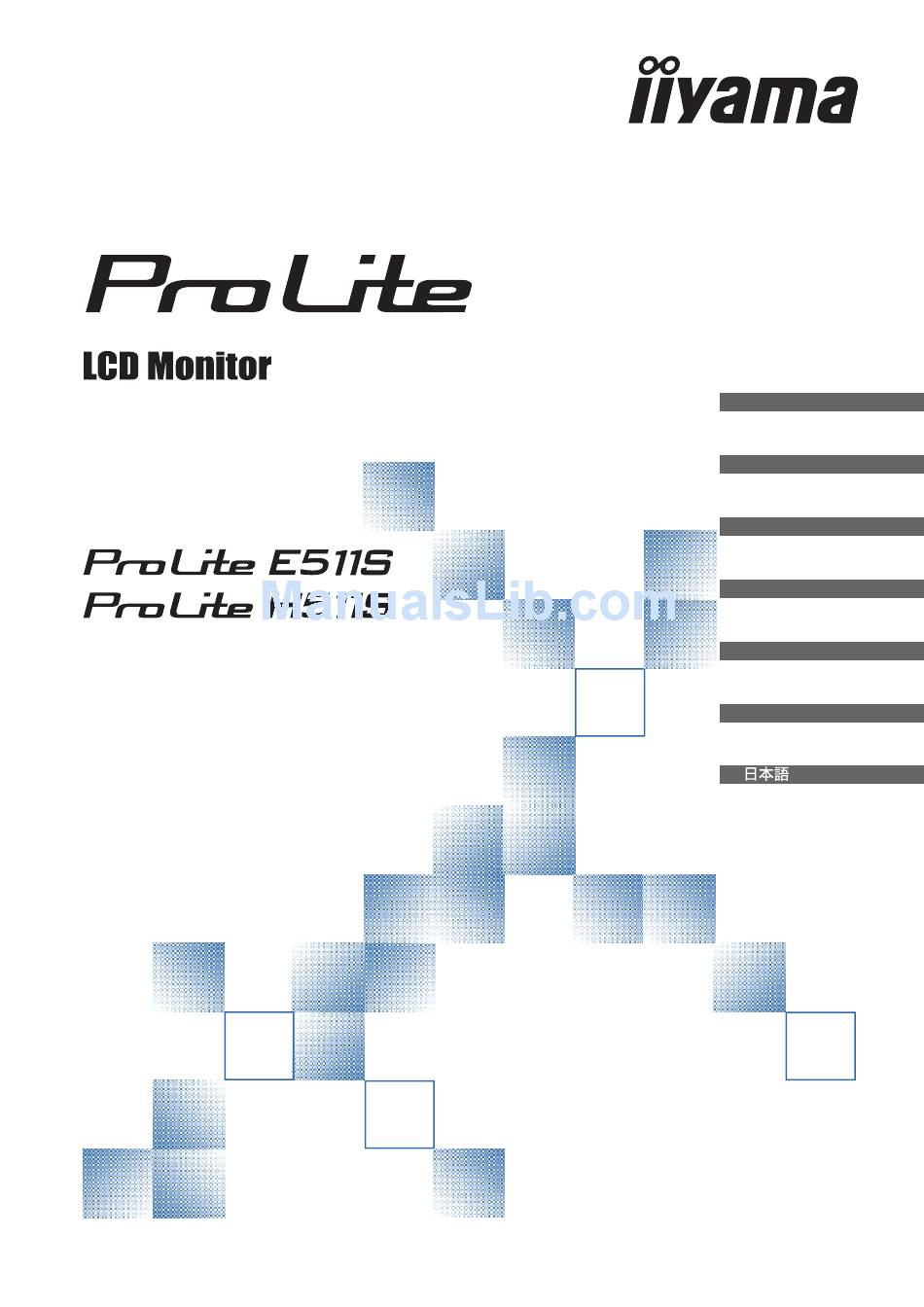

USER MANUAL
Thank you very much for choosing the iiyama
LCD monitor.
We recommend that you take a few minutes to
read carefully through this brief but
comprehensive manual before installing and
switching on the monitor. Please keep this
manual in a safe place for your future
reference.
ENGLISH
DEUTSCH
FRANCAIS
NEDERLANDS
ITALIANO
ESPAÑOL
Advertisement
Table of Contents
Related Manuals for Iiyama ProLite E511S
Summary of Contents for Iiyama ProLite E511S
-
Page 1: User Manual
USER MANUAL ENGLISH DEUTSCH FRANCAIS NEDERLANDS ITALIANO Thank you very much for choosing the iiyama LCD monitor. We recommend that you take a few minutes to ESPAÑOL read carefully through this brief but comprehensive manual before installing and switching on the monitor. Please keep this manual in a safe place for your future reference. - Page 2 Congratulations! The display you have just purchased carries the TCO’03 Displays label. This means that your display is designed, manufactured and tested according to some of the strictest quality and environmental requirements in the world. This makes for a high performance product, designed with the user in focus that also minimizes the impact on our natural environment.
-
Page 3: Fcc Declaration Of Conformity
To meet the FCC requirements, you should use a signal cable with ferrite core at both ends. CAUTION Changes or modifications not expressly approved by iiyama could void the users authority to operate the device under FCC compliance regulations. CANADIAN DEPARTMENT OF COMMUNICATIONS COMPLIANCE... -
Page 4: Table Of Contents
BEFORE YOU OPERATE THE MONITOR ..........4 FEATURES ..................4 CHECKING THE CONTENTS OF THE PACKAGE : ProLite E511S ..5 CHECKING THE CONTENTS OF THE PACKAGE : ProLite H511S ... 5 CONTROLS AND CONNECTORS : ProLite E511S ......6 CONTROLS AND CONNECTORS : ProLite H511S ...... -
Page 5: For Your Safety
STOP OPERATING THE MONITOR WHEN YOU SENSE TROUBLE If you notice any abnormal phenomena such as smoke, strange sounds or fumes, unplug the monitor and contact your dealer or iiyama service center immediately. Further use may be dangerous and can cause fire or electric shock. - Page 6 CAUTION INSTALLATION LOCATION Do not install the monitor where sudden temperature changes may occur, or in humid, dusty or smoky areas as it may cause fire, electric shock or damage. You should also avoid areas where the sun shines directly on the monitor. DO NOT PLACE THE MONITOR IN A HAZARDOUS POSITION The monitor may topple and cause injury if not suitably located.
-
Page 7: Special Notes On Lcd Monitors
Power Switch for hours. Contact your dealer or iiyama service center for the backlight replacement when the screen is dark, flickering or not lighting up. Never attempt to replace it by yourself. -
Page 8: Before You Operate The Monitor
BEFORE YOU OPERATE THE MONITOR [Stopper] : ProLite H511S Please stand the monitor and then remove the stopper on the back of the stand slowly while pushing top face of the stand before you install the monitor. Careful attention is required as the monitor is sprung loaded and may expand quickly when removing it. -
Page 9: Checking The Contents Of The Package : Prolite E511S
CHECKING THE CONTENTS OF THE PACKAGE : ProLite E511S The following accessories are included in your package. Check to see if they are enclosed with the monitor. If anything is missing or damaged, please contact your local iiyama dealer or regional iiyama office. -
Page 10: Controls And Connectors : Prolite E511S
Green: Normal operation (ProLite E511S) NOTE Blue: Normal operation (ProLite E511S-B / ProLite E511S-S) Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 2W when receiving no horizontal and/or vertical sync signal. -
Page 11: Controls And Connectors : Prolite H511S
CONTROLS AND CONNECTORS : ProLite H511S <Front> <Back> A Power Switch / Power Indicator ( NOTE Green: Normal operation (ProLite H511S) Blue: Normal operation (ProLite H511S-B) Orange: Power Management The monitor enters into power management mode which reduces the power consumption to less than 2W when receiving no horizontal and/or vertical sync signal. -
Page 12: Connecting Your Monitor : Prolite E511S
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. -
Page 13: Connecting Your Monitor : Prolite H511S
The cable supplied with the monitor is for a standard 15 pin D-Sub connector. If a special cable is required please contact your local iiyama dealer or regional iiyama office. For connection to Macintosh computers, contact your local iiyama dealer or regional iiyama office for a suitable adaptor. -
Page 14: Computer Setting
Change to the desired signal timing listed on page 31: COMPLIANT TIMING. Windows 95/98/2000/Me/XP Plug & Play The iiyama LCD monitor complies with DDC2B of VESA standard. The Plug & Play function runs on Windows 95/98/2000/Me/XP by connecting the monitor to DDC2B compliant computer with the Signal Cable supplied. -
Page 15: Adjusting The Height And The Viewing Angle : Prolite H511S
ADJUSTING THE HEIGHT AND THE VIEWING ANGLE : ProLite H511S For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor's Height and angle to your own preference. Hold the stand so that the monitor does not topple when you change the monitor’s angle. -
Page 16: Operating The Monitor
OPERATING THE MONITOR To create the best picture, your iiyama LCD monitor has been preset at the factory with the COMPLIANT TIMING shown on page 31. You are also able to adjust the picture by following the button operation shown below. For more detailed adjustments, see page 22 for SCREEN ADJUSTMENTS. -
Page 17: Adjustment Menu Contents
ADJUSTMENT MENU CONTENTS Analog Input Menu : 1 (Analog) M e n u : 1 1600 × 1200 H : 7 5 . 0 K H z V : 6 0 . 0 H z Adjustment Item Problem / Option Button to Press Too dark Brightness *... - Page 18 Menu : 2 M e n u : 2 (Analog) 1600 × 1200 H : 7 5 . 0 K H z V : 6 0 . 0 H z Adjustment Item Problem / Option Button to Press Return to Menu. Auto Set-up * Adjust Clock, Phase, V-Position and H-Position Direct...
- Page 19 Menu : 2 (Analog) Adjustment Item Problem / Option Normal Gamma Mode1 High contrast Dark Mode2 Normal Economy Mode Mode1 Brightness of back-light is reduced. Direct Mode2 Brightness of back-light is reduced more than Mode1. NOTE is displayed while Economy Mode is active. Return to Menu Highlight “Menu :2”...
- Page 20 Menu : 3 Menu:3 (Analog) 1600 × 1200 H : 7 5 . 0 K H z V : 6 0 . 0 H z Adjustment Item Problem / Option Button to Press 1 2 3 4 5 OSD Position You can move the OSD display area to any one of the following 5 positions within the overall display:...
- Page 21 Menu : 4 M e n u : 4 (Analog) 1600 × 1200 H : 7 5 . 0 K H z V : 6 0 . 0 H z Problem / Option Button to Press Adjustment Item Too soft Direct Volume Too loud...
- Page 22 Digital Input Menu : 1 Menu:1 (Digital) 1600 × 1200 H : 7 5 . 0 K H z V : 6 0 . 0 H z Adjustment Item Problem / Option Button to Press Too dark Direct Brightness * Too bright Too dull Contrast...
- Page 23 Menu : 1 (Digital) Adjustment Item Problem / Option Normal Economy Mode Mode1 Brightness of back-light is reduced. Direct Mode2 Brightness of back-light is reduced more than Mode1. NOTE is displayed while Economy Mode is active. Return to Menu Highlight “Menu :1” again. Direct You can skip the Menu pages and display an adjustment scale directly by using the following button operations.
- Page 24 Menu : 2 M e n u : 2 (Digital) 1600 × 1200 H : 7 5 . 0 K H z V : 6 0 . 0 H z Problem / Option Button to Press Adjustment Item 1 2 3 4 5 OSD Position You can move the OSD display area to any one of the following 5 positions...
- Page 25 Menu : 3 M e n u : 3 (Digital) 1600 × 1200 H : 7 5 . 0 K H z V : 6 0 . 0 H z Problem / Option Button to Press Adjustment Item Too soft Direct Volume Too loud...
-
Page 26: Screen Adjustments
If the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up, manual adjustments are required. Both adjustments should be made by using the screen adjustment pattern (Test.bmp) obtained via the IIYAMA web site (http:// www.iiyama.com). - Page 27 C C C C C Press the Auto Button. (Auto Set-up) D D D D D Adjust the image manually by following procedure below when the screen has a flicker or blur, or the picture does not fit in the display area after performing the Auto Set-up.
- Page 28 G G G G G Adjust the Phase to correct horizontal wavy noise, flicker or blur in the zebra pattern. – In case the strong flicker or blurs remain on a part of the screen, repeat steps F and NOTE NOTE G because the Clock may not be adjusted correctly.
-
Page 29: Power Management Feature
POWER MANAGEMENT FEATURE The power management feature of this product complies with power saving requirement of VESA DPMS. When activated, it automatically reduces unnecessary power consumption of the monitor when your computer is not in use. To use the feature, the monitor needs to be connected to a VESA DPMS compliant computer. There is a power management step the monitor takes as described below. -
Page 30: Trouble Shooting
2. Consult the following items if you cannot find an appropriate adjustment item in OPERATING THE MONITOR or if the problem persists. If you are experiencing a problem which is not described below or you cannot correct the problem, discontinue using the monitor and contact your dealer or iiyama service center for further assistance. Problem... - Page 31 Problem Check No sound. The audio equipment (computer etc.) is ON. The Audio Cable is properly connected. The Volume is turned up. The Mute is OFF. The audio output level of the audio equipment is within the specification of the monitor. The sound is too The audio output level of the audio equipment is within the specification of the monitor.
-
Page 32: Appendix
APPENDIX SPECIFICATIONS : ProLite E511S LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 51cm / 20.1" Pixel pitch 0.255mm H × 0.255mm V Brightness 300cd/m (Typical) Contrast ratio 900 : 1 (Typical) Viewable angle Right / Left / Up / Down: 89 degrees each (Typical) -
Page 33: Specifications : Prolite H511S
SPECIFICATIONS : ProLite H511S LCD Panel Driving system a-Si TFT Active Matrix Size Diagonal: 51cm / 20.1" Pixel pitch 0.255mm H × 0.255mm V Brightness 300cd/m (Typical) Contrast ratio 900 : 1 (Typical) Viewable angle Right / Left / Up / Down: 89 degrees each (Typical) Response time 16ms (Black, white, black), 8ms (Gray to Gray) Display Colors... -
Page 34: Dimensions : Prolite E511S
DIMENSIONS : ProLite E511S 446.0mm/17.6" 70.0mm/2.8" 410.5mm/16.2" DIMENSIONS : ProLite H511S 446mm/17.6" 70mm/2.8" 410.5mm/16.2" 300.5mm/11.8" ( ):Maximum adjustment range 30 APPENDIX... -
Page 35: Compliant Timing
COMPLIANT TIMING Horizontal Vertical Video Mode Dot Clock Frequency Frequency 31.469kHz 59.940Hz 25.175MHz 37.861kHz 72.809Hz 31.500MHz 640 × 480 37.500kHz 75.000Hz 31.500MHz 43.269kHz 85.008Hz 36.000MHz 35.156kHz 56.250Hz 36.000MHz 37.879kHz 60.317Hz 40.000MHz SVGA 800 × 600 48.077kHz 72.188Hz 50.000MHz 46.875kHz 75.000Hz 49.500MHz 53.674kHz 85.061Hz... -
Page 36: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT D-Sub mini 15pin Input Signal Input Signal Connector Red video Ground Green video / Sync on green Blue video Reserved port Reserved port Data line (SDA)* Ground H-Sync/HV-Sync Red video ground V-Sync Green video ground Clock line (SCL)* Blue video ground * Compliant to VESA DDC.
