Summary of Contents for Gaggenau VL 430-707

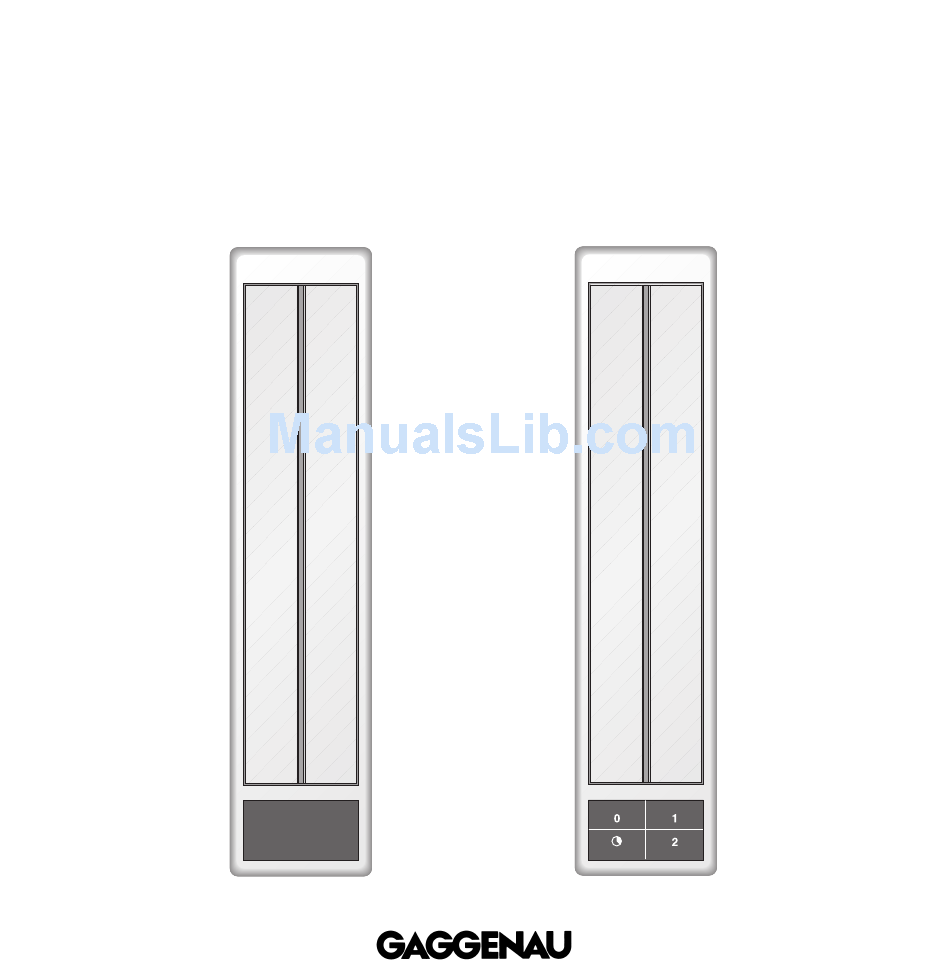

- Page 1 Operating and assembly instructions VL 430/431-707 Cooktop ventilator...
-
Page 3: Table Of Contents
VL 430-707 VL 431-707 Safety notes Page 3 Important notes Page For your safety Page 4 Operating for the first time Page 5 Maintenance Page 5 Features Page Features Page 6 Special accessories Page 6 Operation Page Cleaning and care... - Page 4 The chapter entitled “Cleaning and Care" gives tips on how to keep your appliance looking good. And now we wish you lots of fun with your new hob ventilator. VL 430-707...
-
Page 5: Safety Notes
Safety notes WARNING - TO REDUCE THE RISK OF FIRE, WARNING - TO REDUCE THE RISK OF INJURY ELECTRIC SHOCK, OR INJURY TO PERSONS, TO PERSONS IN THE EVENT OF A RANGE OBSERVE THE FOLLOWING: TOP GREASE FIRE, OBSERVE THE FOLLOWING: Use this unit only in the manner intended by the manufacturer. -
Page 6: Important Notes
1. Important notes For your safety Do not operate the appliance if it is damaged. Isolate the appliance from the mains during every maintenance operation. To do this, remove the The appliance must only be connected by mains plug or actuate the corresponding fuse. If the an authorised specialist, paying attention to mains plug is not accessible, the appliance must be the relevant regulations of the power supply... -
Page 7: Operating For The First Time
Remove the packaging from the appliance and Gaggenau dealer who will provide you with the dispose of it properly. Pay attention to the fact that address and telephone number of your nearest there are accessories in the packaging! manufacturer’s authorized service agent or contact... -
Page 8: Features
2. Features Features 1 Ventilation flaps 2 Metal grease filter 3 Membrane key pad (VL 431 only) 4 Clamping screw 5 Suction extraction connection Special accessories AL 400-000 Edge trim RV 050-150 Bifurcated pipe for joining 2 x DN 125 into DN 150 LS 330-000 Air baffle... -
Page 9: Operation
3. Operation Note: VL 430 can only be operated in combination with VL 431. All operator inputs apply to both hob ventilators. That is to say: if you press the key for level 1, both hob ventilators are operated at level 1. Switching on Press the corresponding membrane key for the required level. -
Page 10: Cleaning And Care
4. Cleaning and care grease filters must be cleaned on a regular basis (at the latest after 30 hours of operation). Overgreased filters are a fire risk! Cleaning the grease filter • Switch appliance to level 1. The flaps open. •... -
Page 11: Assembly Instructions
5. Assembly instructions Important notes on installation heating basement. Consult the chimney sweep responsible for your district whenever you wish to WARNING - TO REDUCE THE RISK OF FIRE, pass the exhaust air into a chimney that is not in ELECTRIC SHOCK, OR INJURY TO PERSONS, operation. -
Page 12: Installing The Appliance
Installing the appliance If two Vario appliances are used, the hob ventilator must be installed between the appliances. If 4-plate hobs are used, it is recommended to place two ventilators to the left and right of the hob. Owing to the high air output, an adequate supply of air is required. - Page 13 • Turn the clamping screws to the side. Insert the appliance with the control panel on the front into the cut-out and align it. Note: do not stick the appliance onto the worktop with silicone. • Turn the clamping screws under the countertop and tighten them evenly.
-
Page 14: Electrical Connection
Electrical connection Pay attention to the rating plate data. Connectors VL 431 Observe the connecting scheme when connecting the hob ventilator and the fan module. connecting connecting cable cable to GB to VL 430 9000029672 en 12.04 EB... - Page 16 GAGGENAU HAUSGERÄTE GMBH 5551 McFADDEN AVENUE CARL-WERY-STR. 34 · 81739 MÜNCHEN HUNTINGTON BEACH, CA 92649 GERMANY Y (800) 828-9165 · FAX (714) 901-0979 (0 89) 45 90 - 03 FAX (0 89) 45 90 - 23 47 www.gaggenau-usa.com...
