M-Class
Dual-Channel
Amplifiers

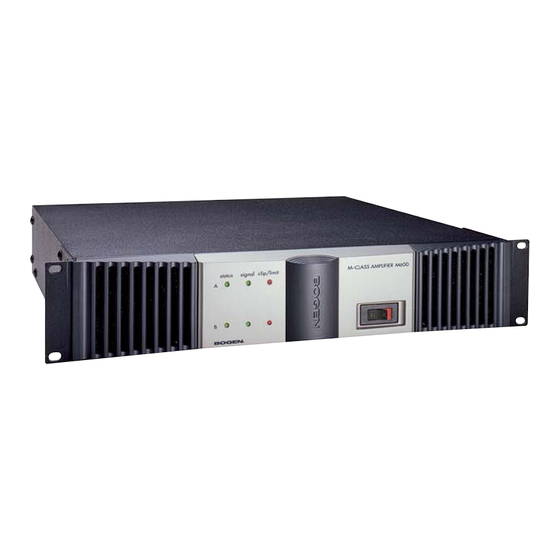

Models M600, M450
and M300
Description
Bogen's M-Class delivers on what professional sound installers need most – Flexibility, Power, and Reliability.
Flexibility – 3 modes of operation: Stereo, 70V Mono, or Dual Mono; and 2 modular input bays for a variety of
prioritized input types. Power – up to 600W/ch stereo or 1200W of 70V mono power. Reliability – Massive
power toroid and heat sinks; heavy 14-gauge chassis; patented Back-Slope™ AC voltage stabilization;
Clip limiters, DC voltage, over-current, and thermal protection circuits.
Features
• 3 mono power levels: 1200W, 900W, or 600W
for 70V speaker systems
• 3 stereo power levels: 600W, 450W, or 300W
per channel @ 4 ohms
• 3 modes of operation to choose from - Stereo,
Dual Mono, or 70V Mono
• Low noise, low distortion, and high slew rate
• Flexible modular input capability (2 module
capacity)
• Professional, dual-channel (balanced or unbal-
anced), high-impedance input module with gain
selection included
• 3 selectable low-frequency, roll-off choices
• 2x1 mixer function when in mono modes
• Insert connections for outboard equipment
(in mono modes)
• Post- and Pre-EQ Output Feeds (summed
mono out in stereo mode)
• DC, overload, short circuit, and thermal
protection circuits
• Clip limiting circuits for speaker protection
• Power-saving Sleep Mode for intermittent use
applications
• Status, Signal, and Clip/Limit indicators
• Back-Slope AC voltage stabilization for depend-
able performance over varying AC line voltages
• Heavy-gauge steel chassis with cast aluminum
front panel
• Recessed volume control knobs with snap-on
protective cover
• Mounts in 2 rack spaces (3-1/2") directly stackable
without need for extra space above or below
• 2 independent, continuously variable, cooling fans
for dependable and quiet operation
• Easily removable front fan grilles with filters
• Stable into 2-ohm loads
• Listed to UL Standard 60065 for US and Canada
Specifications subject to change without notice.
© 2001 Bogen Communications, Inc.
54-5092-01C 1205
