Electrolux Premier DSO51DF Instruction Booklet

Mixed fuel cooker
Hide thumbs Also See for Premier DSO51DF:

Advertisement

Quick Links

Mixed fuel cooker
INSTRUCTION BOOKLET
Please read this instruction booklet before using the appliance
DSO51DF
342737635

Advertisement

loading

Summary of Contents for Electrolux Premier DSO51DF

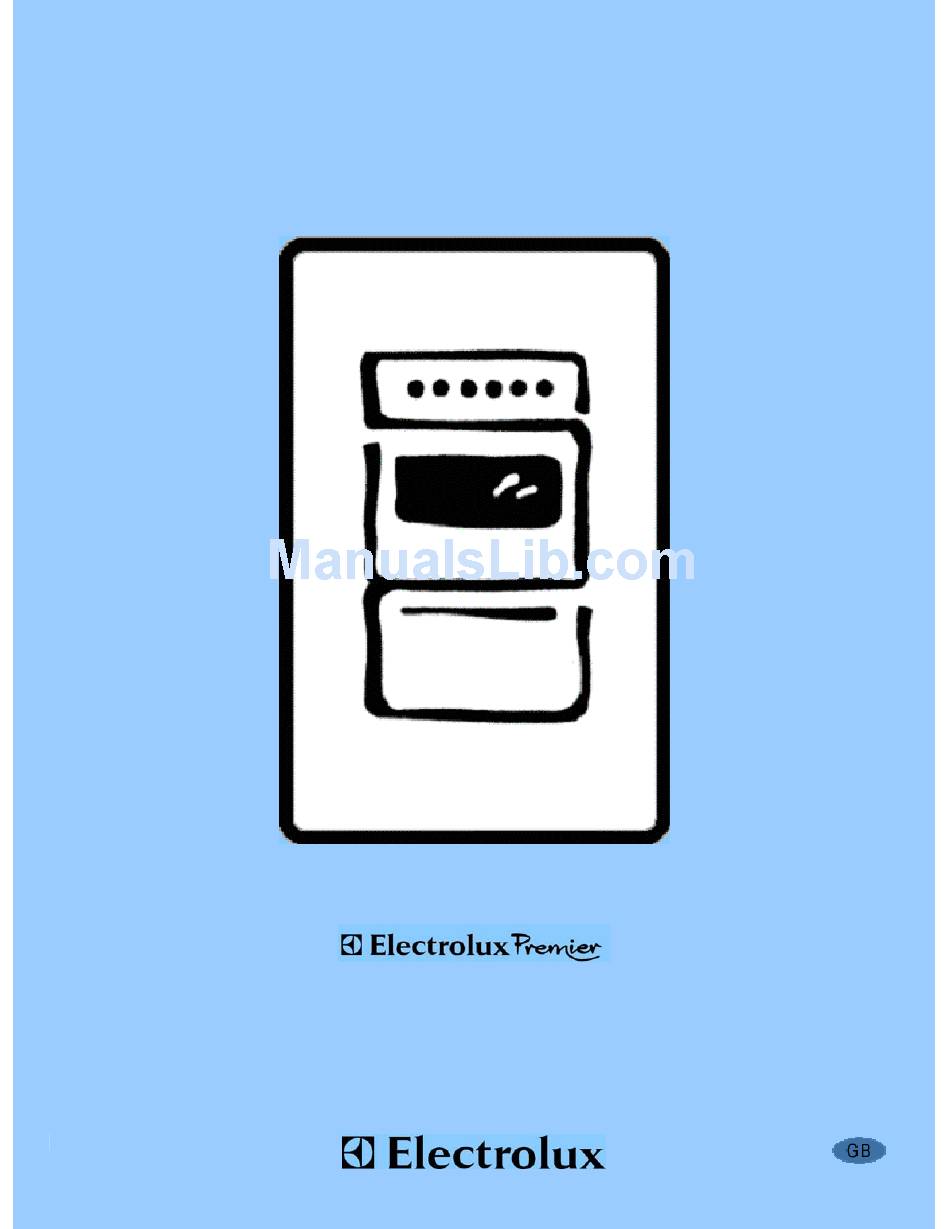

  • Page 1 Mixed fuel cooker INSTRUCTION BOOKLET Please read this instruction booklet before using the appliance DSO51DF 342737635...
  • Page 3 WARNINGS You MUST read these warnings carefully before installing or using the appliance. If you need assistance, contact our Customer Care Department on 08705 950950. • Ensure the control knobs are in the ‘OFF’ Installation position when not in use. •...
  • Page 4: Table Of Contents

    CONTENTS Instructions for the Installer Technical features Installation Location Electrical connections Gas connections Conversion of gas Instructions for the User Use and care Before the first use of the oven Electric oven Oven function control knob Cooking in the oven Grilling Hints and Tips Using the hob...
  • Page 5: Instructions For The Installer

    INSTRUCTIONS FOR THE INSTALLER TECHNICAL FEATURES Dimensions Height 900 mm Width 500 mm Depth 600 mm Oven Capacity 49 l Models: DSO51DFW, DSO51DFGR Painted Lid Model: DSO51DFSS No Lid Pan support Enamelled Front right burner Semi-Rapid 2000 W Back right burner Semi-Rapid 2000 W Front left burner...
  • Page 6: Installation

    INSTALLATION This cooker must be installed in manufacturer declines accordance with the IEE Wiring Regulations responsibility for possible damages resulting (Current Edition). Detailed recommendations from an installation which doesn't comply contained following British with current legislation. Standards Codes Of Practice: B.S.
  • Page 7 The cooker should not be installed in a bed sitting room with a volume of less than 20m , if it is installed in a room of volume less 5m an air vent of effective area of 110cm is required; if it is installed in a room of volume between 5m , an air vent of effective area 50cm required, while if the volume exceeds 11m...
  • Page 8: Electrical Connections

    ELECTRICAL CONNECTIONS Any electrical work required to install Before connecting check that: this hob and the supply cable should be • fuse and household electric installation can carried out by a qualified electrician or carry the load of the appliance (see rating competent person, in accordance with the plate);...
  • Page 9: Gas Connections

    GAS CONNECTIONS Advice for safety • Before installation ensure that the local distribution conditions (gas type pressure) pre-setting appliance are consistent. • This appliance must be installed only in a room with good ventilation. • This appliance must not connected to a chimney.
  • Page 10 Connection shall be by means of an appliance flexible connector for use with a self-sealing plug- in device, complying with: Flexible hoses, end fittings and sockets for gas burning appliances – BS 669; The appliance flexible connector should not be subjected to undue forces either in normal use or whilst connected or disconnected;...
  • Page 11: Conversion Of Gas

    CONVERSION OF GAS Your cooker is designed to work with natural gas, and is convertible for use witth propane or butane. The LPG conversion kit is available from your Service Force Centre and must be fitted by a Corgi Registered engineer. For changing the gas type it is necessary to: •...
  • Page 12 Replace the nozzles of the hob burners Before any modifications or conversion to a kind of different gas, you must DISCONNECT the cooker from the electricity supply and ensure that all control knobs are in the OFF position, and the appliance has cooled completely.
  • Page 13: Instructions For The User

    INSTRUCTIONS FOR THE USER USE AND CARE Control panel 1. Back left burner control knob 5. Ignition switch 2. Front left burner control knob 6. Main pilot light 3. Front right burner control knob 7. Oven thermostat pilot light 4. Back right burner control knob 8.
  • Page 14: Before The First Use Of The Oven

    USE OF APPLIANCE Before the First Use of the Oven Before the first use ensure that the room well ventilated: V.M.C. (Mechanic ventilation) opened window. Remove all packaging, both inside and outside the oven, before using the oven. Before first use, the oven should be heated without food.
  • Page 15: Electric Oven

    ELECTRIC OVEN Oven Function Control Knob The control knob is used to select the desired temperature and to select either the grill or oven function. Oven switched off 50-250 Temperature selection (bottom and top heat) Grill - The grill cannot be used at the same time as the oven.
  • Page 16: Grilling

    Grilling Hints and Tips When grilling, the accessible parts of the Oven Cooking • Turn off the oven 5 minutes before the end of appliance are hot and the appliance should not be left unattended. Take care that children do cooking time, and use residual heat to not play near it.
  • Page 17: Using The Hob

    Using the Hob The Hob Burners The symbol on the control panel shows which burner is operated by the knob. (See control panel). Maximum level Minimum level Use the maximum level for boiling and the minimum for simmering. Always choose positions between the minimum and maximum, never between maximum and off.
  • Page 18: Accessories Delivered With The Appliance

    For a correct ignition always keep the burner ring and the spark plugs clean. The following diameter pans can be used: Burner Power Diameter (mm) (kW) min. max. Rapid 3,00 Semi- 2,00 Rapid Auxiliary 1,00 Accessories delivered with appliance The following accessories are supplied with your appliance.
  • Page 19: Maintenance And Cleaning

    MAINTENANCE AND CLEANING The oven should be kept clean at all Cleaning the oven door times. A build-up of fats or other For a more complete cleaning of the oven door, it foodstuffs could result in a fire. is advisable to remove it in the following way; Before cleaning, ensure all control Open the door completely.
  • Page 20: Oven Bulb Replacement

    After every use wipe with a soft cloth well wrung out in warm water to which a little washing up liquid has been added, avoiding any leakage through the holes of the hob. Rinse and dry with a soft cloth. Burner cap To remove more stubborn stains, wet and leave to dissolve, do not scratch and avoid the use of...
  • Page 21: Something Not Working

    SOMETHING NOT WORKING If the appliance is not working correctly, please carry out the following checks, before contacting your local Service Force Centre. IMPORTANT: If you call out an engineer to a fault listed below, or to repair a fault caused by incorrect use or installation, a charge will be made even if the appliance is under guarantee.
  • Page 22: Service And Spare Parts

    SERVICE AND SPARE PARTS In the event of your appliance requiring service, or if you wish to purchase spare parts, please contact your local Service Force Centre by telephoning:- 08705 929929 Your telephone call will be automatically routed to the Service Force Centre covering your post code area.
  • Page 23: Guarantee Conditions

    GUARANTEE CONDITIONS Standard Guarantee Conditions We Electrolux undertake that if, within 12 months of the date of the purchase, this Electrolux appliance or any part thereof is proved to be defective by any reason only of faulty workmanship or materials, we will, at our option, repair or replace the same FREE OF ANY CHARGE for labour, materials or carriage on condition that: •...
  • Page 24: Customer Care Department

    Customer Care Department Electrolux 55-77 High Street Slough Berkshire SL1 1DZ Tel: 08705 950 950 © Electrolux plc 2003 The Electrolux Group. The world’s No.1 choice The Electrolux Group is the world’s largest producer of powered appliances for kitchen, cleaning and outdoor use. More than 55 million Electrolux Group products (such as refrigerators, washing machines, vacuum cleaners, chain saws and lawn mowers) are sold each year to a value of approx.USD 14 billion in more than 150 countries around the world.
