1.5 Completeness and connection of set

a) GROM Audio AUX adapter set consists of GROM AUX interface, RCA cable, 3.5 mm phone

jack, and vehicle specific cable (see figure 1).

GROM AUX interface (1)

RCA cable (2)

3.5 mm phone jack (3)

Vehicle specific cable (4)

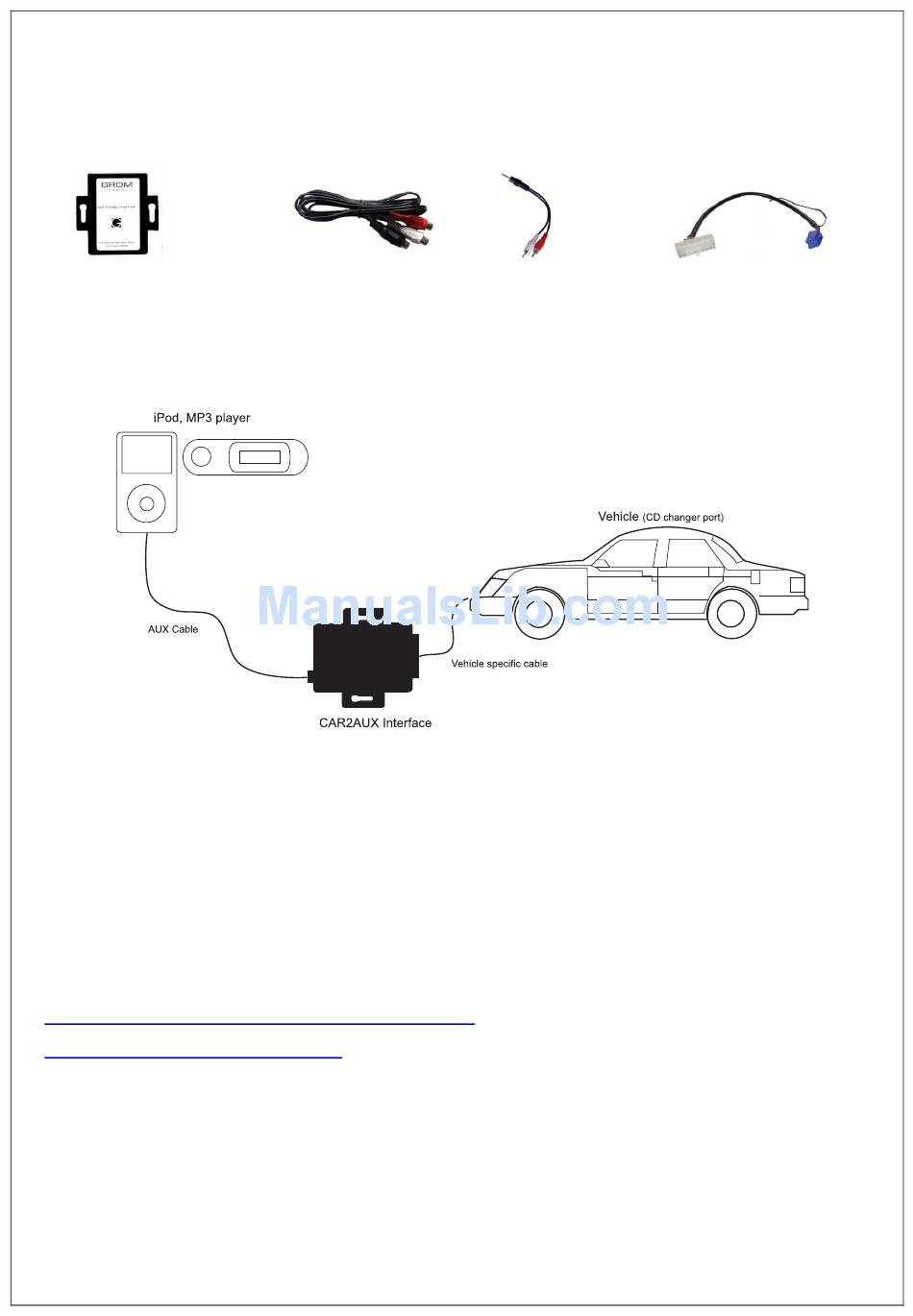

Figure 1. Package content.

b) Basic wiring diagram of GROM Audio AUX adapter is the following ( see Figure 2):

Figure 2. Basic wiring diagram

If your vehicle is equipped with an external factory CD changer, you must disconnect it in order

to be able to install the interface. You will lose the use of the external CD changer to gain the

use of your iPod or MP3 player. Any built-in CD changer will remain working.

For a full version of the GROM application guide, please visit

http://gromaudio.com/grom_application_guide.pdf

or contact Grom Audio at

http://gromaudio.com/support.html

Chapter 2 – General Installation

Most installations will require you to remove the factory radio in order to plug in the vehicle

specific harness.

3.1
