OPERATION MANUAL
GROM-MST4 AUDI MMI 2G

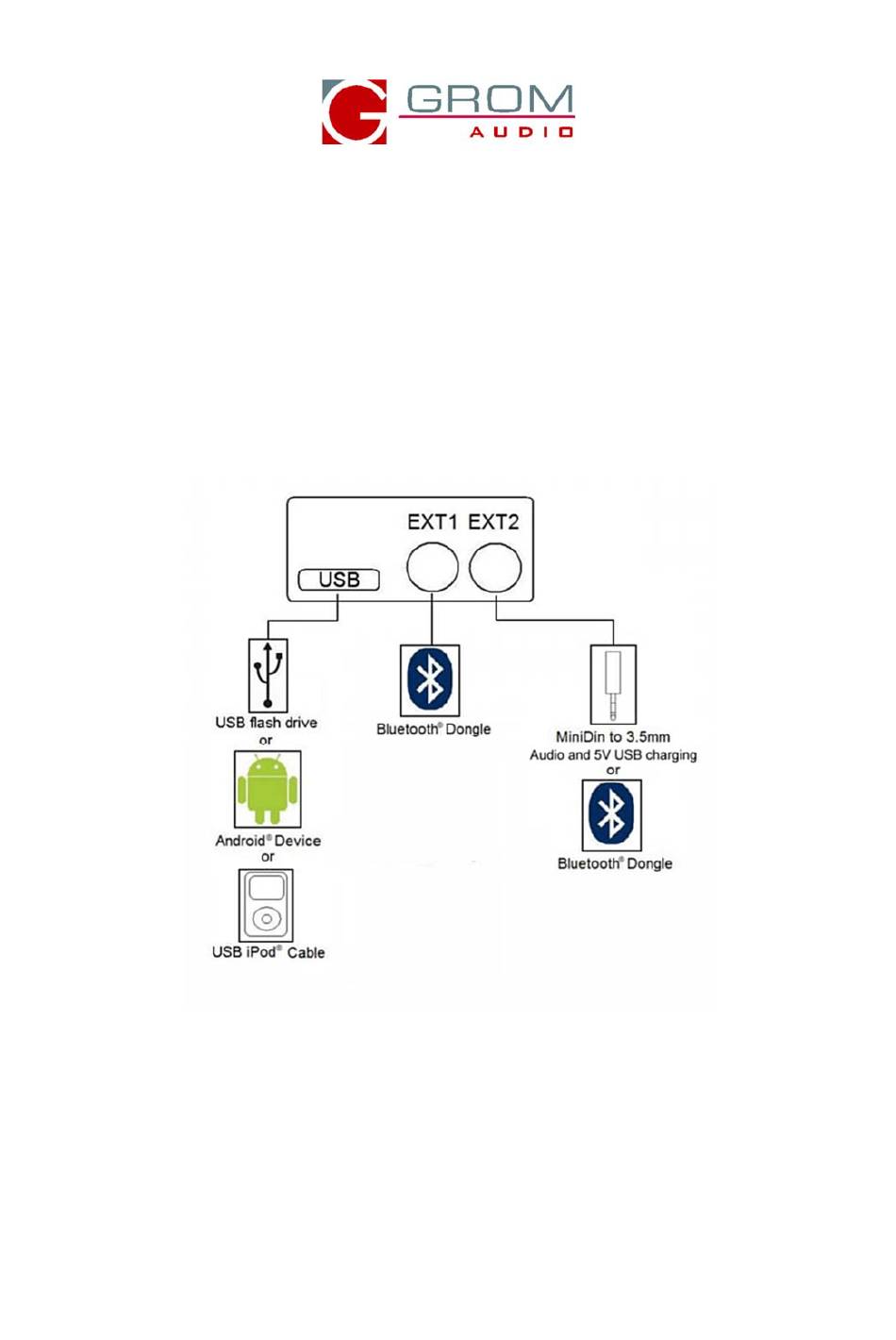

1. EXT1-EXT2 PORTS - Accessories Cables Connection

Connect the cables to the appropriate slots available on GROM-MST4 (see above illustration).
EXT1- connect GROM Bluetooth Dongle
EXT2- connect GROM Bluetooth Dongle or AUX-In 3.5mm cable
Note: You can connect GROM Bluetooth Dongle to either the EXT1 or EXT2, and AUX cable only to the EXT2.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GROM-MST4 AUDI MMI 2G and is the answer not in the manual?

Questions and answers

Summary of Contents for GROM Audio GROM-MST4 AUDI MMI 2G

  • Page 1 OPERATION MANUAL GROM-MST4 AUDI MMI 2G 1. EXT1-EXT2 PORTS - Accessories Cables Connection Connect the cables to the appropriate slots available on GROM-MST4 (see above illustration). EXT1- connect GROM Bluetooth Dongle EXT2- connect GROM Bluetooth Dongle or AUX-In 3.5mm cable...
  • Page 2 2. Quick operation steps 2.1 MODE Selection 1. Press CD/AUX to enter into GROM mode. 2. Navigate to Disc 6 in GROM mode. 3. Select Track 2 to Change between USB, iPod and AUX. 2.2 Quick button operation for Audi MMI 1.
  • Page 3 working, please go to the phone settings and either enable or disable the USB Debugging function. To enable/disable USB Debugging, on Android device go to Settings Applications Development Once you connect your Android device to GROM-MST4 and the GROM unit is in USB playback mode, AALinQ should automatically start playing a song from your Android device.
  • Page 4 4.2 Supported formats The GROM-USB supports the following formats: FLAC lossless MP3 with bitrates up to 320Kbps WMA with bitrates up to 389Kbps AAC / iTunes with bitrates up to 389Kbps OGG/Vorbis with bitrates up to 389Kbps VBR/CBR Note 1: No digital rights management (DRM)-protected content will play directly through the GROM-MST4 adapter as such content is encrypted and signed by the media publisher.
  • Page 5 Check USB Drive Setup guide at http://gromaudio.com/docs/Grom_USB_Setup.pdf 4.4 USB Basic Features The GROM-MST4 adapter has the following functionality: Every directory in a root of the USB portable data medium becomes a virtual disc. Please note: directories with non- audio files (e.g., pictures, documents) located in the root will be recognized as empty virtual discs. All audio files within the root directory are enumerated and treated as TRACKS.
  • Page 6 C. WHEN THE CAR IGNITION IS OFF When you turn your car stereo or car ignition off, the iPod will automatically will go into sleep mode. In the sleep mode, the iPod will still consume power—although very little—from the car battery. There is no need to disconnect the iPod every time you turn off your car.
  • Page 7 Please refer to the GROM Bluetooth Dongle manual that is supplied with your Bluetooth Dongle. You can also access the manual online at GROM Audio website: http://gromaudio.com/docs/bluetooth_manual.pdf.
  • Page 8 7.3 Disc 6 – Grom menu 8. Support and Warranty For technical support, please visit http://gromaudio.com/support.html and fill in the web form. First available representative will answer to your question. For warranty information please refer to your Installation Manual.
