DCA-125USJ — OUTPUT TERMINAL PANEL FAMILIARIZATION
Connecting Loads
Loads can be connected to the generator by the Ouput Terminal
Lugs or the convienience receptacles. (See Figure 13). Make
sure to read the operation manual before attempting to connect
a load to the generator.
To protect the output terminals from overload, a
3-pole, 300A main circuit breaker is provided. Make sure to
switch ALL circuit breakers to the OFF position prior to
starting the engine.

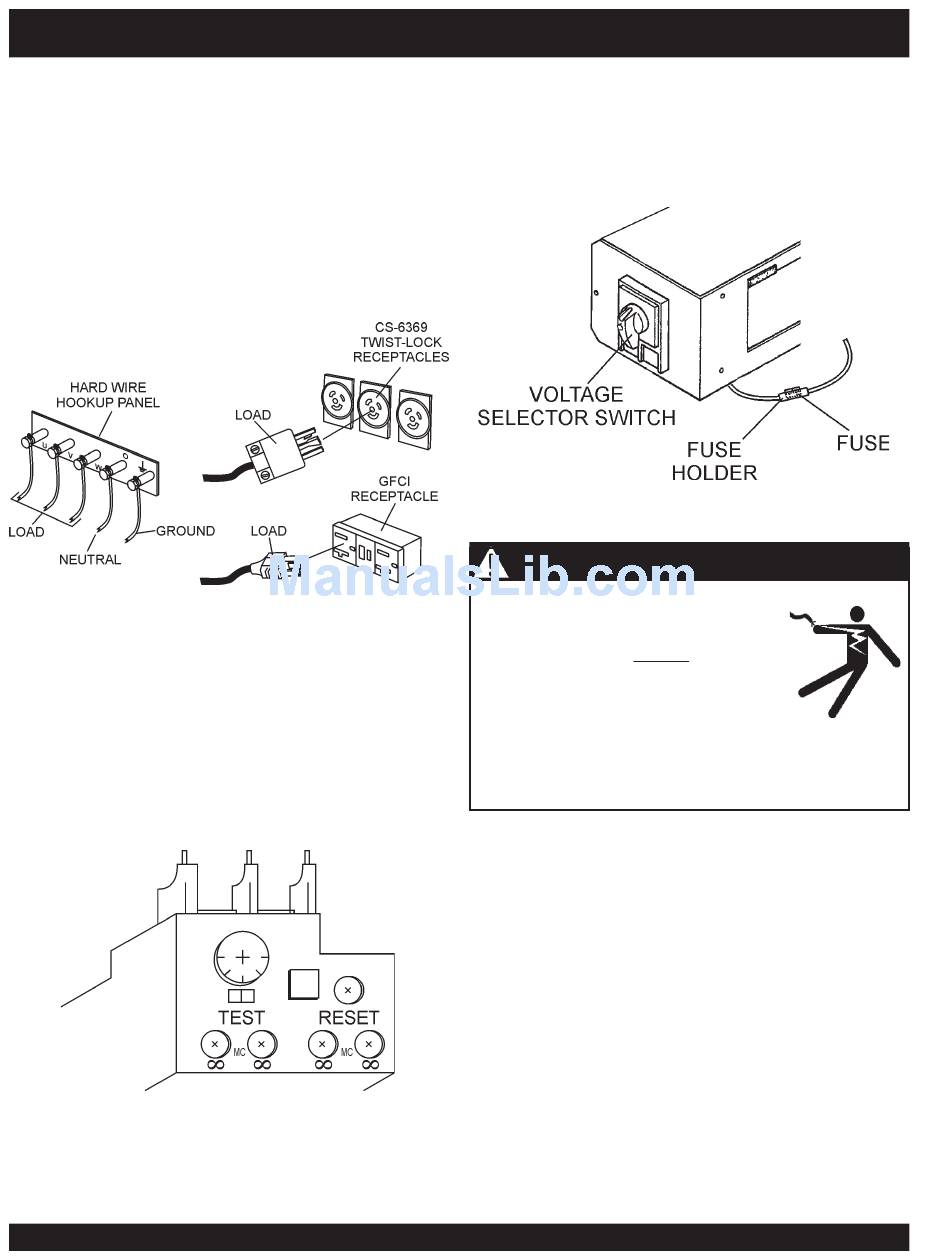

Figure 13. Connecting Loads
Over Current Relay
An over current relay (Figure 14) is connected to the main
circuit breaker. In the event of an overload, both the circuit
breaker and the over current relay may trip. If the circuit
breaker can not be reset, the reset button on the over cur-
rent relay must be pressed. The over current relay is lo-
cated in the control box.
Figure 14. Over Current Relay
PAGE 26 — DCA-125USJ — OPERATION AND PARTS MANUAL — REV. #2 (01/27/11)
Blower Fan
This unit has an intake fan located at the rear of the machine
to draw outside air into the cabinet to cool the engine. The
fan has a 10 amp AC fuse located beneath the Voltage
Selector Switch (Figure 15).
Figure 15. Blower Fan Fuse
CAUTION - ELECTRICAL SHOCK HAZARD
The blower fan fuse has current running
through it any time the engine is
operating. This fuse IS NOT connected
to the main circuit breaker of the
generator. Attempting to replace the fuse
with the engine and/or generator
operating could result in electrocution and severe bodily
harm . ALWAYS turn the unit completely off before
attempting to replace or handle the fuse.
