Thank you for purchasing this Panasonic Product.
Before operating this product, please read the instructions carefully and save this manual
J
for future use.
For information on using the product via a network, refer to "Operating Instructions – Network
Operations".
Operating Instructions

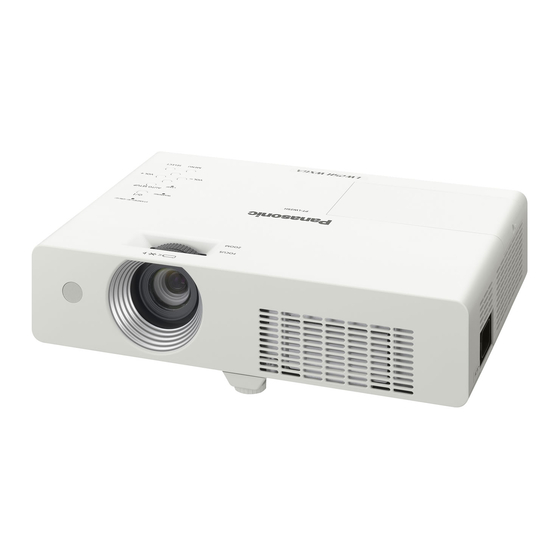

LCD Projector
Model No.
Projector Operations
Commercial Use
PT-LX26HE
PT-LX30HE
PT-LW25HE
ENGLISH
LE4AC
Advertisement
Table of Contents
Related Manuals for Panasonic PT-LX26HE
Summary of Contents for Panasonic PT-LX26HE
-
Page 1: Operating Instructions
Model No. PT-LX30HE PT-LW25HE Thank you for purchasing this Panasonic Product. Before operating this product, please read the instructions carefully and save this manual for future use. For information on using the product via a network, refer to “Operating Instructions – Network Operations”. -
Page 2: Read This First
Read this first! Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. Machine Noise Information Ordinance 3. GSGV, January 18, 1991: The sound pressure level at the operator position is equal or less than 70 dB (A) according to ISO 7779. - Page 3 Read this first! WARNING: POWER „ The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock. If foreign objects or water get inside the projector, cut off the power supply.
- Page 4 If liquid enters inside of the projector, consult your dealer. Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Defects in the ceiling mount bracket will result in falling accidents. Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.
- Page 5 Read this first! WARNING: ACCESSORIES „ Do not use or handle the batteries improperly, and refer to the following. Failure to observe this will cause burns, batteries to leak, overheat, explode or catch fire. Do not use unspecified batteries. Do not disassemble dry cell batteries. Do not heat the batteries or place them into water or fire.
-
Page 6: Remote Control Battery
Read this first! CAUTION: ON USE/INSTALLATION „ Do not put your weight on this projector. You could fall or the projector could break, and injury will result. Be especially careful not to let young children stand or sit on the projector. Do not place the projector in extremely hot locations. -
Page 7: Auto Setup Function
Quick steps Auto Setup Function For details, see the corresponding pages. This function enables [Input search], 1. Set up your projector. [Auto Keystone] correction and [Auto Æ page 19) PC adjustment] by pressing the <AUTO SETUP> button. Direct Power Off Function 2. -
Page 8: Table Of Contents
Contents Be sure to read “Read this first!”. ( pages 2 to 6) Basic operations by using the remote Important Information control........... 31 Read this first! ........... 2 Using the AUTO SETUP function ......... 31 Switching the input signal ..........31 Contents ............. - Page 9 Contents Contrast ................ 43 Fan control ..............55 Brightness ..............43 Video delay control ............55 Color ................43 Lamp runtime ............... 55 Tint ................43 Filter counter ..............56 Iris ................43 Warning log ..............56 Color temp..............44 AMX D.D.
-
Page 10: Precautions For Use
Precautions for Use Cautions when transporting When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. Doing so may damage the internal parts and result in malfunctions. Do not transport the projector with the adjustable foot extended. Doing so may damage the adjustable foot. Cautions when installing Do not set up the projector outdoors. -
Page 11: Security
Make your password as difficult to guess as possible. Change your password periodically. Panasonic or its affiliate company never inquires a password directly to a customer. Do not tell your password in case you receive such an inquiry. The connecting network must be secured by firewall or others. -
Page 12: Cautions On Use
It is recommended to have authorized engineer or your dealer replace the lamp unit. Pursuant to at the directive 2004/108/EC, article 9(2) Panasonic Testing Centre Panasonic Service Europe, a division of Panasonic Marketing Europe GmbH Winsbergring 15, 22525 Hamburg, F.R. Germany - ENGLISH... -
Page 13: Accessories
Precautions for Use Accessories Make sure the following accessories are provided with your projector. Numbers in the brackets ( ) show the number of accessories. Remote control unit (x1) Power cord (x1) CD-ROM (x1) Batteries (AAA/R03 or (6451051677) (6103580203) (6103579740) AAA/LR03 type) (x2) (for remote control unit) AC power cord holder... -
Page 14: Optional Accessories
Precautions for Use Contents of the supplied CD-ROM The contents of the supplied CD-ROM are as follow. [: Instructions/List (PDF), : Software] Operating Instructions – Projector Operations. Operating Instructions – Network Operations. Multi Projector Monitoring & Control Software 2.6(Windows) ... -
Page 15: About Your Projector
About Your Projector Remote control (17) ( 9 ) <VOLUME+/-> Buttons Adjust the volume of the speaker. ( page 33) Æ (10) (10) < > Button Turn the projector on or off. ( page 27) Æ (11) <KEYSTONE> Button Correct keystone distortion. ( page 31) Æ... -
Page 16: Projector Body
About Your Projector Projector body (11) (10) (12) (13) ( 1 ) Remote control signal receiver ( 2 ) Projection Lens ( 3 ) Air intake port ( 4 ) AC IN ( 5 ) Air outlet port Hot air is exhausted from the exhaust vent. Do •... -
Page 17: Control Panel
About Your Projector Control panel (3) <AUTO SETUP> Button Execute the setting of Auto setup in the [setting] menu. (4) < > Button Turn the projector on/off. (5) <STANDBY(R)/ON(G)> indicator Indicate the power status. (6) <MENU> Button Display the MENU screen. ( page 34) Æ... -
Page 18: Using Remote Control
Using Remote control Using Remote control Installing and Removing batteries Open the cover Install batteries and close the cover (Insert the – side first.) Remove the batteries in the reverse order of installation. Setting Remote control ID numbers When you use the system with multiple projectors, you can operate all the projectors simultaneously or each projector individually using single remote control, if unique ID number is assigned to each projector. -
Page 19: Setting Up
Setting up Projection method You can use the projector with any of the following 4 projection methods. To set the desired method in the projector. Mounting on the ceiling and Setting on a desk/floor and projecting forward projecting from rear (Using translucent screen) Mounting on the ceiling and Setting on a desk/floor and... -
Page 20: Screen Size And Throw Distance
Setting up Screen size and throw distance Place the projector referring Projected image to the diagram on the right and the figures of throwing Screen distance. You can adjust the L (LW/LT) display size. L (LW/LT) * Projection distance (m) Height of the projection area (m) L (LW/LT) Width of the projection area (m) - Page 21 Setting up Projection distance for PT-LX26HE (All measurements below are approximate and may differ slightly from the actual measurements.) Projection size For 4:3 aspect ratio For 16:9 aspect ratio Minimum distance Maximum distance Minimum distance Maximum distance Screen diagonal (SD)
- Page 22 Setting up Projection distance for PT-LX30HE (All measurements below are approximate and may differ slightly from the actual measurements.) Projection size For 4:3 aspect ratio For 16:9 aspect ratio Minimum distance Maximum distance Minimum distance Maximum distance Screen diagonal (SD) (LW) (LT) (LW)
-
Page 23: Adjusting Front Adjustable Foot
Setting up Adjusting front adjustable foot Lift the front of the projector and press the foot lock latch on the projector. Release the foot lock latch to lock the adjustable foot and rotate the adjustable foot to a proper height and tilt. You can turn the front adjustable foot to extend it. -
Page 24: Connections
Basi Connections Before connecting to the projector Read carefully the instruction manual for the device to be connected. Turn off the power switch of the devices before connecting cables. If any connection cable is not supplied with the device, or if no optional cable is available for connection of the device, prepare a necessary system connection cable to suit the device. -
Page 25: Powering On/Off
ic Operation Powering ON/OFF Connecting the power cord Be sure to insert the attached power cord securely to its base to prevent it from coming off. Power cord holder A power cord holder is designed to prevent the AC power cord from coming off the projector. Please insert the power cord into the power cord holder correctly as Picture (1) shown: AC Power cord holder Clamp... -
Page 26: Standby(R)/On(G) Indicator
Powering ON/OFF STANDBY(R)/ON(G) indicator The <STANDBY(R)/ON(G)> indicator informs you the status of the power. Confirm the status of the <STANDBY(R)/ON(G)> indicator before operating the projector. STANDBY(R)/ON(G) indicator Indicator status Status No illumination or flashing The power cord is unplugged. The power cord is plugged The projector is in stand-by mode, after the cooling is completed. -
Page 27: Turning On The Projector
Powering ON/OFF Turning On the Projector Complete peripheral connections (with a computer, VCR, etc.) before turning on the projector. Connect the projector’s AC power cord into an AC outlet. The <STANDBY(R)/ON(G)> indicator lights red. Open the lens cap. Press the <... -
Page 28: Enter A Pin Code
Powering ON/OFF Enter a PIN code Press ▲▼ to enter a number. Press ► to fix the PIN Code Input Dialog Box number and move the red frame pointer to the next box. The number changes to . If you fixed an incorrect number, use the Point ◄... -
Page 29: Turning Off The Projector
Powering ON/OFF Turning Off the Projector Press the < > button on the control panel or the remote control, and Power off? appears on the screen. Power off? disappears after 4 seconds. Press the < > button on the control panel or the remote control again to turn off the projector. -
Page 30: Projecting
Projecting Æ Check the connections of the peripheral devices and connection of the power cord ( page 25) and switch on the Æ power ( page 27) to start the projector. Select the image and adjust the state of the image. Selecting the image Select an input signal. -
Page 31: English
Basic operations by using the remote control Switches to Computer 1(RGB)/ COMPUTER 1 Computer 1(Scart) input. Switches to Computer 2(RGB) COMPUTER 2 input. VIDEO Switches to Video input. Switches to Computer 1(S-video) S-VIDEO input. Switches to Computer 1 COMPONENT (Component) input. Using the SCREEN button This function allows you to select screen mode or change the screen size. -
Page 32: Using The Info. Button
Basic operations by using the remote control Using the FREEZE function Operation Screen image You can freeze the projected image and stop the Reduce the sound temporarily, regardless of the playing condition upper width of the connected device. with press ▲... -
Page 33: Using The P-Timer Button
Basic operations by using the remote control Using the P-TIMER button Controlling the volume of the speaker Press the <P-TIMER> button on the remote control to operate the [Count up/Count down] function. You can control the volume of the projector’s speaker. Button Buttons Press <P-TIMER>... -
Page 34: Menu Navigation
Menu Navigation Press ► or the <SELECT> button. Navigating through the menu The submenu appears so that you can select the sub-menu item. Operating procedure Press the <MENU> button. The Main Menu screen appears. Press ▲▼ to select the desired sub- menu item. -
Page 35: Main Menu
Menu Navigation Main menu Sub menu The main menu consists of the following 9 menu The sub-menu screen of the selected main menu items. appears, and you can set and adjust the various items When a main menu item is selected, the screen in the submenu. -
Page 36: Sub-Menu Item
Menu Navigation Image adjust [ Setting [ Sub-menu item Factory default Page Sub-menu item Factory Default Page Contrast Language English Brightness Menu position Center Color* Auto setup Tint* Background Blue Iris Display Color temp. Logo Terminal Computer 2 Green Power management Shutdown Blue Direct on... -
Page 37: Input Menu
Input menu adjustment] function works to display proper Select [Input] from the Main Menu (see images. If the image is not projected “Navigating through the menu” on page 34), properly, a manual adjustment is required. then select the item from the sub-menu. There is no signal input from the computer. - Page 38 Input menu Component Auto The projector automatically detects an incoming video signal, and adjusts itself to optimize its performance. COMPONENT VIDEO SIGNAL FORMAT If the projector cannot reproduce proper video image, select a specific component video signal format among [480i], [576i], [480p], [576p], [720p], [1035i] and [1080i].
-
Page 39: Auto Pc Adjust
AUTO PC adjust AUTO PC adjust Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 34), then select the item from the sub-menu. Control Panel Remote Control AUTO PC adj. [Auto PC adjustment] function is provided to automatically adjust [Fine sync], [Total dots], [Horizontal] and [Vertical] positions to conform to your computer. -
Page 40: Manual Pc Adjust
Manual PC adjust Manual PC adjust Horizontal Select [PC adjust] from the Main Menu (see “Navigating through the menu” on page 34), then select the item from the sub-menu. Press ▲▼ to select [Horizontal]. Press the <SELECT> button to display Control Panel Remote Control the adjustment dialog box. -
Page 41: Current Mode
Manual PC adjust Current mode Reset To reset the adjusted data, all adjustments will return Press ▲▼ to select [Current mode]. to their previous figures. Press ► or the <SELECT> button Press ▲▼ to select [Reset]. to enter the next submenu to show Press the <SELECT>... -
Page 42: Image Select
Image select Blackboard(Green) Select [Image select] from the Main Menu (see “Navigating through the menu” on page 34), For the image projected on a blackboard. then select the item from the sub-menu. Press ▲▼ to select [Blackboard(Green)] and then press the <SELECT> button. This mode helps enhance the image projected Remote Control Control Panel... -
Page 43: Image Adjust
Image adjust Image adjust Color Select [Image adjust] from the Main Menu (see “Navigating through the menu” on page 34), then select the item from the sub-menu. Press ▲▼ to select [Color]. Press the <SELECT> button to display Remote Control Control Panel the adjustment dialog box. -
Page 44: Color Temp
Image adjust Color temp. Blue Press ▲▼ to select [Color temp.]. Press ▲▼ to select [Blue]. Press the <SELECT> button to display Press the <SELECT> button to display the adjustment dialog box. the adjustment dialog box. Press ◄► to select the desired Color Press ◄►... -
Page 45: Noise Reduction
Image adjust Noise reduction Reset To reset the adjusted data, all adjustments will return Press ▲▼ to select [Noise reduction]. to their previous figures. Press the <SELECT> button to display Press ▲▼ to select [Reset]. the adjustment dialog box. Press the <SELECT> button. Press ◄►... -
Page 46: Screen
Screen Screen True Select [Screen] from the Main Menu (see “Navigating through the menu” on page 34), Provide the image in its original size. When the then select the item from the sub-menu. original image size is larger or smaller than the panel size , the projector enters to the panning mode Remote Control... -
Page 47: Custom Adj
Screen To exit the Digital zoom +/– mode, press any button Custom adj. except the <D.ZOOM +/–>, <SELECT> and ▲▼◄► buttons. Adjust the screen scale and position manually with this function. To return to the previous screen size, select a screen Press ▲▼... -
Page 48: Ceiling
Screen Ceiling Reset This function is used to project the image from a To reset the adjusted data, all adjustments will return ceiling-mounted projector. to their previous figures. Press ▲▼ to select [Reset] and then Press ▲▼ to select [Ceiling] and then press the <SELECT>... -
Page 49: Sound
Sound Sound Select [Sound] from the Main Menu (see “Navigating through the menu” on page 34), then select the item from the sub-menu. Remote Control Control Panel Volume Press ▲▼ to select [Volume] and then Press the <SELECT> button. Press ◄► to adjust the volume. Adjustment Operation Adjustment... -
Page 50: Setting
Setting Setting Menu position Select [Setting] from the Main Menu (see “Navigating through the menu” on page 34), This function is used to change the position of the then select the item from the sub-menu. On-Screen Menu. Press ▲▼ to select [Menu position]. Remote Control Control Panel Press the <SELECT>... -
Page 51: Background
Setting Auto keystone The [factory default setting] is in this option. *2 : Use this function when you want to project the image as early as possible even when the lamp Auto Always works and corrects keystone is not bright enough. distortion according to the projector's tilt. -
Page 52: Terminal
Setting Press ▲▼ and then press the Logo PIN code change <SELECT> button to select one mode Logo PIN code can be changed to your desired four- among the items as below. digit number. Press ▲▼ to select [Logo PIN code Ready When the lamp has been fully cooled change]. -
Page 53: P-Timer
Setting [Stop] on the [screen] menu, then the indication Note changes into [Restart]. Press the <SELECT> When selecting [Network], the cooling fans may be button at [Restart] to resume [Count up] or [Count running depending on the temperature inside the down]. -
Page 54: Lamp Power
Setting Key lock Lamp power This function locks the control panel and remote This function allows you to change brightness of the control buttons to prevent operation by unauthorized screen. persons. Press ▲▼ to select [Lamp power] and Press ▲▼ to select the desired items then press the <SELECT>... -
Page 55: Fan
Setting Video delay control This function allows you to make a digital processing Press ▲▼ to select [Fan] and then of a projected image faster. Press <SELECT> button. Press ▲▼ to select [Video delay Press ▲▼ to select one option . control] and then Press the <SELECT>... -
Page 56: Filter Counter
Setting Filter counter Warning log This function is used to set a frequency for the filter This function records anomalous operations while the replacement. projector is in operation and use it when diagnosing faults. Press ▲▼ to select [Filter counter]. Press ▲▼... -
Page 57: Information
Information Information Lamp power Select [Information] from the Main Menu (see “Navigating through the menu” on page 34), The selected lamp mode is displayed. then select the item from the sub-menu. Lamp runtime Remote Control Control Panel The cumulative lamp operating time is displayed. Power management [Off ] ,[ Ready] or [Shut down], and [Timer] are displayed. -
Page 58: Lamp And Warning Indicators
LAMP and WARNING Indicators LAMP and WARNING Indicators Managing the indicated problems If a problem should occur inside the projector, the <STANDBY(R)/ON(G)>, <LAMP> and/or <WARNING> indicators will inform you. Manage the indicated problems as follow. CAUTION Before you take a remedial measure, follow the procedure of switching the power off indicated in “Turning off the projector”. Æ... -
Page 59: Replacement
Replacement Before replacing the unit When you perform maintenance or replacement of the parts, make sure to turn off the power and disconnect Æ the power plug from the wall outlet. ( pages 27, 29) Æ Be sure to observe the procedure “Turing off the projector” ( page 29) when performing power supply operation. -
Page 60: Attaching The Filter Cover To The Projector
Replacement Attention Turn off the power before you replace the air filter unit. When attaching the air filter unit, make sure that the projector is stable, and work in an environment that is safe, even in the event of the air filter unit dropping. Do not operate the projector with the filter removed. -
Page 61: Lamp Unit
Replacement Lamp unit The lamp unit is a consumable component. You can check the total usage time using Lamp runtime in the [Information] menu on page 57. It is recommended to ask an authorized engineer to replace the lamp unit. Contact your dealer. Consult your dealer to purchase a replacement lamp unit (ET-LAL100). -
Page 62: Replacing The Lamp Unit
Replacement Replacing the Lamp unit CAUTION: When the projector is mounted on a ceiling, do not work with your face close to the projector. Attach the lamp unit and the lamp cover securely. When you experience difficulty in installing the lamp, remove it and try again. If you use force to install the lamp, the connector may be damaged. -
Page 63: Attaching The Lens Cap
Replacement Attaching the Lens Cap When moving this projector or while not using it over an extended period of time, attach the lens cap. Attach the lens cap according to the following procedures. Thread the string through the hole on the lens cap and then tie a knot in the string to secure it in place. -
Page 64: Troubleshooting
Troubleshooting Please check following points. For details, see the corresponding pages. Reference Problem Cause page The power cord may not be connected. — No electric supply is at the wall outlet. — Power does not turn The circuit breakers have tripped. —... -
Page 65: Technical Information
Technical Information Serial terminal The <SERIAL IN> terminal conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector. Connection Connecting terminals on projector Computer D-Sub 9-pin (male) D-Sub 9-pin (female) Communication cable Pin assignments and signal names... -
Page 66: Basic Format
Technical Information Basic format Transmission from the computer begins with STX, then the command, parameter, and ETX are sent in this order. Add parameters according to the details of control. Colon (1 byte) Parameter Start 3 command (undefined length) characters (1 byte) (1 byte) (3 bytes) -
Page 67: Cable Specifications
Technical Information Cable specifications [When connected to a computer] Computer (DTE Projector specifications) Control commands When controlling the projector from a computer, the following commands are available: [Projector control command] Command Control contents Remarks Power [ON] Power [OFF] (Parameter) VID = Video SVD = Computer 1 (S –video) INPUT selection RG1 = Computer 1 (RGB) -
Page 68: Other Terminal
Technical Information Other terminal Pin assignments and signal names of <COMPUTER IN 1/COMPONENT IN/S-VIDEO> terminal Pin No. Signal names Outside view R/PR/S-C G/G - SYNC/Y/S-Y DDC data HD/SYNC : Not assigned DDC clock : GND terminals Pin assignments and signal names of <COMPUTER IN 2/MONITOR OUT> terminal Pin No. -
Page 69: List Of Compatible Signals
Technical Information List of compatible signals The following table specifies the types of signals compatible with the projectors. Format : V = VIDEO, S = S-VIDEO, C = COMPUTER, Y = YP Scanning Picture Display Dot clock frequency quality * Mode resolution * frequency... - Page 70 Technical Information Scanning Picture Display Dot clock frequency quality * Mode resolution * frequency Format (dots) (MHz) H (kHz) V(Hz) COMPUTER LW25HE LX30HE LX26HE 48.36 60.00 65.00 68.677 84.977 94.504 ○ 60.023 75.03 78.75 ○ 56.476 70.07 75.00 ○ 60.31 74.92 79.252 48.50...
- Page 71 Technical Information Scanning Picture Display Dot clock frequency quality * Mode resolution * frequency Format (dots) (MHz) H (kHz) V(Hz) COMPUTER LW25HE LX30HE LX26HE 75.00 60.00 162.00 ○ 81.25 65.00 175.50 UXGA 1600 x 1200 87.5 70.00 189.00 ○ 93.75 75.00 202.50 47.776...
-
Page 72: Specifications
Specifications Model No. PT-LW25HE PT-LX30HE PT-LX26HE Power supply AC100 V - 240 V 50 Hz/60 Hz 100 V - 240 V 3.5 A-2.0 A 297 W When [Standby mode] of [Setting] is set to [ECO]: 0.52W Power consumption When [Standby mode] of [Setting] is set to [Network]: 8.6W 1.5 cm(0.59") - Page 73 Specifications Model No. PT-LW25HE PT-LX30HE PT-LX26HE 1 (D-sub 15 pin female) [RGB signal] 0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 [p-p] 75 Ω COMPUTER 1 IN/ HD/SYNC TTL high impedance, automatic positive/negative polarity compatible COMPONENT IN/ VD TTL high impedance, automatic positive/negative polarity compatible...
-
Page 74: Dimensions
Ceiling mount bracket safeguards Specifications Dimensions <Unit : mm> 349.0 13.74" 172.4 (6.79") Actual dimension may differ by product. Ceiling mount bracket safeguards Installation work of the ceiling mount bracket should only be carried by a qualified technician. Even if it is during guaranteed period, the manufacturer is not responsible for any hazard or damage caused by using a ceiling mount bracket which is not purchased from an authorized distributors, or environmental conditions. -
Page 75: Index
Index Input search ........50 Sound ..........49 Installing and Removing batteries ..18 Specifications .........72 About Your Projector.......15 Accessories ........13 Iris ...........43 Standard .........42 Standby mode ........52 Adjusting front adjustable foot ..23 STANDBY(R)/ON(G) indicator ..26 AMX D.D.........56 Keystone........31, 47 Attaching the Lens Cap ....39, 63 Sub menu ........35 Switching the input signal ....31 AUTO PC adjust ......39... - Page 76 Information for Users on Collection and Disposal of Old Equipment and used Batteries These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2002/96/EC and 2006/66/EC.
