Thank you for purchasing this Panasonic Product.
This manual is intended for products manufactured from Nov. 2013 and beyond.
J
Before operating this product, please read the instructions carefully, and save this manual
J
for future use.
Before using your projector, be sure to read "Read this first!" (See pages 2 to 8).
J

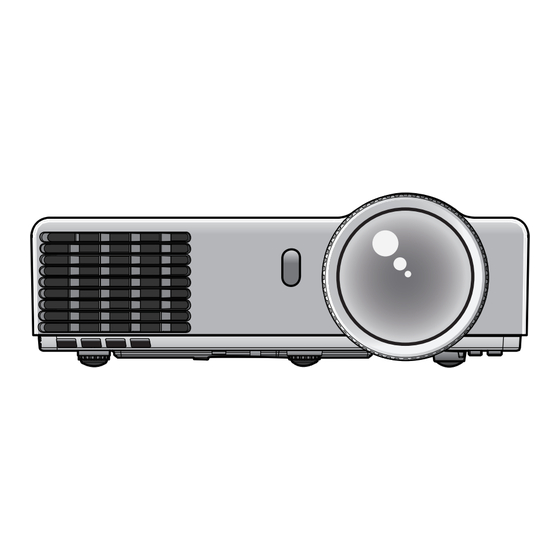

Operating Instructions
DLP
Projector
™
Model No.
Functional Manual
Commercial Use
P T-TW330EA
PT-TW240EA
PT-TX300EA
ENGLISH
TQBJ0624-1
Advertisement
Table of Contents
Related Manuals for Panasonic PT-TW330EA
Summary of Contents for Panasonic PT-TW330EA
-
Page 1: Operating Instructions
P T-TW330EA Model No. PT-TW240EA PT-TX300EA Thank you for purchasing this Panasonic Product. This manual is intended for products manufactured from Nov. 2013 and beyond. Before operating this product, please read the instructions carefully, and save this manual for future use. -
Page 2: Read This First
Read this first! WARNING: THIS APPARATUS MUST BE EARTHED. WARNING: To prevent damage which may result in fire or shock hazard, do not expose this appliance to rain or moisture. This device is not intended for use in the direct field of view at visual display workplaces. To avoid incommoding reflexions at visual display workplaces this device must not be placed in the direct field of view. - Page 3 Read this first! IMPORTANT: THE MOULDED PLUG (U.K. only) FOR YOUR SAFETY, PLEASE READ THE FOLLOWING TEXT CAREFULLY. This appliance is supplied with a moulded three pin mains plug for your safety and convenience. A 13 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of13 amps and that it is approved by ASTA or BSI to BS1362.
- Page 4 Read this first! WARNING: POWER „ The wall outlet or the circuit breaker shall be installed near the equipment and shall be easily accessible when problems occur. If the following problems occur, cut off the power supply immediately. Continued use of the projector in these conditions will result in fire or electric shock. If foreign objects or water get inside the projector, cut off the power supply.
- Page 5 If liquid enters inside of the projector, consult your dealer. Particular attention must be paid to children. Use the ceiling mount bracket specified by Panasonic. Defects in the ceiling mount bracket will result in falling accidents. Attach the supplied safety cable to the ceiling mount bracket to prevent the projector from falling down.
- Page 6 Read this first! WARNING: ACCESSORIES „ Do not use or handle the battery improperly, and refer to the following. Failure to observe this will cause burns, battery to leak, overheat, explode or catch fire. Do not use unspecified battery. Do not disassemble coin cell battery. Do not heat the battery or place them into water or fire.
- Page 7 Read this first! CAUTION: POWER „ When disconnecting the power cord, be sure to hold the power plug and power connector. If the power cord itself is pulled, the lead will become damaged, and fire, short-circuits or serious electric shocks will result. When not using the projector for an extended period of time, disconnect the power plug from the wall outlet.
-
Page 8: Remote Control Battery
Read this first! To remove the battery Remote Control Battery 1. Press the guide and pull out 2. Remove the battery. the battery base. Trademarks • Windows , Windows Vista , and Internet Explorer are registered trademarks or trademarks of Microsoft ®... - Page 9 Features of the Projector Features of the Projector Quick steps Quick steps For details, see the corresponding pages. Superb Basic Performance 1. Set up your projector. Æ page 21) Up to 3 100 lm of brightness in a compact body, weighting 2.5 k ] . High contrast ratio up to 7 500:1 makes images with excellent detail and depth.
-
Page 10: Table Of Contents
Contents Be sure to read “Read this first!”. ( pages 2 to 8) Basic operations by using the remote Important Information control........... 31 Read this first! ........... 2 Switching the input signal ..........31 <LAMP> button ............31 Contents ........... 10 <INFO.>... - Page 11 Contents UART Mode ..............41 LAN (Standby) .............. 41 Reset ................41 Audio ............42 Mute ................42 Volume ................. 42 In Standby Mode (Audio) ..........42 Options ............. 43 Auto Source ..............43 Input ................43 Auto Power Off (Min) ............ 43 Lamp Settings ..............
-
Page 12: Precautions For Use
Precautions for Use Cautions when transporting When transporting the projector, hold it securely by its bottom and avoid excessive vibration and impacts. Doing so may damage the internal parts and result in malfunctions. Do not transport the projector with the adjustable feet extended. Doing so may damage the adjustable feet. Cautions when installing Do not set up the projector outdoors. -
Page 13: Security
Make your password as difficult to guess as possible. Change your password periodically. Panasonic or its affiliate company never inquires a password directly to a customer. Do not tell your password in case you receive such an inquiry. The connecting network must be secured by firewall or others. -
Page 14: Cautions On Use
To assure continued compliance, follow the attached installation instructions, which include using the provided power cord and shielded interface cables when connecting to computer or peripheral device. Importer's name and address within the European Union Panasonic Marketing Europe GmbH Panasonic Testing Center Winsbergring 15, 22525 Hamburg, Germany... -
Page 15: Accessories
Note The model numbers of accessories are subject to change without prior notice. Optional accessories Options Model No. ET-LAL341 (for PT-TW330EA and PT-TX300EA) Replacement lamp unit ET-LAL331 (for PT-TW240EA) ET-PKV100H (for high ceilings) Ceiling Mount Bracket ET-PKV100S (for low ceilings) -
Page 16: About Your Projector
About Your Projector Remote control (12) <INFO.> button Displays [Information] menu. (13) <VIDEO> button Switches to Video source. (11) (14) <KEYSTONE +> button Adjusts the image to compensate for distortion (12) caused by tilting the projector. (13) (15) <IMAGE> button Selects the color mode among Dynamic, PC, (14) Movie, Game and User. -
Page 17: Projector Body
About Your Projector Projector body 12 9 12 9 12 4 12 8 12 5 12 6 (1) Control panel and indicators ( Æ page 18) (10) Lamp cover( Æ page 57) (2) Air intake port (11) Security slot Attaches the commercial shackle lock, manufactured (3) Speaker by Kensington, to protect your projector. -
Page 18: Control Panel And Indicators
About Your Projector Control Panel and Indicators (1) <ON(G) / STANDBY(R)> indicator (6) <TEMP> indicator Indicates the projector’s status. Indicates the status of the internal temperature or (2) < v / b > button the cooling fan of the projector. (7) <LAMP>... -
Page 19: Connecting Terminals
About Your Projector Connecting terminals (1) <HDMI IN> (8) <SERIAL IN> This is a terminal to connect to HDMI signal. This is a RS-232C compatible terminal to (2) <MONITOR OUT> externally control the projector by connecting a This is a terminal to output the RGB signal or computer. -
Page 20: Using Remote Control
Using Remote control Using Remote control Installing and Removing battery Press the guide and pull Install new battery into Put the battery base out the battery base. the compartment. back. Remove the old Lithium coin cell battery and install new one (CR2025). Ensure that the side with a “+”... -
Page 21: Setting Up
Setting up Setting up Projection method You can use the projector with any of the following 4 projection methods to set the desired method in the projector. Setting on a desk/floor and Mounting on the ceiling and projecting forward projecting forward Menu setting* Menu setting* [Ceiling Mount]... -
Page 22: Screen Size And Throw Distance
(m) Screen Diagonal length of the projection area (m) Projection distance for PT-TW330EA and PT-TW240EA All measurements below are approximate and may differ slightly from the actual measurements. (Unit: m) Projection size For 4:3 aspect ratio... - Page 23 Setting up Calculation formulas for projection distance Any other projection distance can be obtained according to the screen dimensions (m) using the following calculations. The calculation result is with the "m" unit. (The calculated distance below may contain a certain error.) If the screen dimensions are written as "SD", For 4:3 aspect ratio For 16:9 aspect ratio...
-
Page 24: Adjusting The Projector's Height
Setting up Adjusting the Projector's Height The projector is equipped with elevator feet for adjusting the image height. Extend the adjustable feet by rotating in the direction shown in the below picture and retract by rotating in the op- posite direction. Adjustable range Adjustable range Front adjustable feet :... -
Page 25: Connections
Connections Connections Before connecting to the projector Read carefully the instruction manual for the device to be connected. Turn off the power switch of the devices before connecting cables. If any connection cable is not supplied with the device, or if no optional cable is available for connection of the device, prepare a necessary system connection cable to suit the device. -
Page 26: Connecting Example: Computers
Connections Connecting example: Computers Control Computer Monitor Computer Computer Audio equipment Connecting example: AV equipment Blu-ray disk DVD player Audio equipment player (with built-in TBC) - ENGLISH... -
Page 27: Basic Operation
Basic Operation Powering ON/OFF Powering ON/OFF Connecting the power cord Use the supplied power cord to prevent removal of the power cord and make sure that it is fully inserted into the projector. For detailed power cord handling, refer to “Read this first!” ( pages 2 to 8). -
Page 28: On(G)/Standby(R) Indicator
Powering ON/OFF ON(G)/STANDBY(R) indicator The ON(G)/STANDBY(R) indicator informs you the status of the power. Confirm the status of the <ON(G)/STANDBY(R)> indicator before operating the projector. <ON(G)/STANDBY(R)> indicator Indicator status Status No illumination The power plug is not connected to the outlet. The power is switched off. -
Page 29: Powering On The Projector
Powering ON/OFF Powering On the Projector Before switching on the projector, make sure all the other devices are correctly connected ( page 26) and Æ remove the lens cap. Connect the power plug to the power outlet. Enter Standby status when the <ON(G)/STANDBY(R)> indicator is lighting / blinking in red. Press the <... -
Page 30: Projecting
Projecting Projecting Check the connections of the peripheral devices and connection of the power cord ( page 27) and switch on the Æ power ( page 29) to start the projector. Select the image and adjust the state of the image. Æ... -
Page 31: English
Basic operations by using the remote control Basic operations by using the remote control <INFO.> button Press this button to display the [Information] menu. Button Press the <INFO.> button on the remote control. Note Æ For details, see “Information”. ( page 44) <FREEZE>... -
Page 32: Image> Button
Basic operations by using the remote control <IMAGE> button <MUTE> button Press this button to display the picture mode menu Press this button to temporarily turn off the sound. and to change the settings of the image. Button Button Press the <MUTE> button on the remote Press the <IMAGE>... -
Page 33: Settings
Settings On-screen Display Menus On-screen Display Menus How to operate menu Operation steps Press <MENU> button on the remote control or on the control panel. Main Menu displays. Use ▲▼ to select any item in the Main Menu. The selected item is highlighted in orange. Press ►. -
Page 34: Menu Tree
On-screen Display Menus Menu Tree Main Menu Sub Menu 2nd Sub Menu Default Value Range Color Mode Dynamic / PC / Movie / Game / User Wall color White / Light Yellow / Light Blue / White Pink / Dark Green Brightness 0 ~ 100 Contrast... - Page 35 Lamp Hours Used (Normal) Lamp Hours Used (ECO) Lamp Life Off/On Reminder Lamp Normal / Auto / ECO1 / Normal Power ECO2 for PT-TW330EA / Lamp Settings Mode PT-TX300EA. Normal / Auto / ECO for PT-TW240EA. Clear Yes / No Options...
-
Page 36: Picture
Picture Picture Press ◄► to select the desired item. Select [Picture] from the Main Menu (see “How to operate menu” on page 33) and then select White For White color. the item from the Sub Menu. Light Yellow For Light Yellow color. Light Blue For Light Blue color. -
Page 37: Saturation
Picture Press ► to display the adjustment Gamma dialog box. Press ◄► to adjust the setting value. Adjust the gamma table when the dark areas or bright areas of the image is not clear. Adjustment Operation Adjustment Press ▲▼ to select [Gamma]. range Press ►... -
Page 38: Position
Position Position Note Select [Position] from the Main Menu (see “How If an aspect ratio which is different from the aspect ratio to operate menu” on page 33) and then select for the input signals is selected, the pictures will appear the item from the Sub Menu. -
Page 39: Position
Position V Position Press the ▼◄ on the remote control Shift the projected image position vertically. or the ◄ on the control panel to Press ▲▼ to select [V Position]. adjust the bottom of Press ► to display the adjustment the keystone. -
Page 40: Setting
Setting Setting Do not display Closed Caption. Select [Setting] from the Main Menu (see “How to operate menu” on page 33) and then select Displays the CC1 data. the item from the Sub Menu. Displays the CC2 data. Displays the CC3 data. PT-TW330 Displays the CC4 data. -
Page 41: Remote Id
Startup Logo Press ▲▼ to select [Reset]. Press ► to display the setting dialog Set this function to display the Panasonic logo when box. the projector is turning on. Press ▲▼ to select [Yes]. Press ▲▼ to select [Startup Logo]. -
Page 42: Audio
Audio Audio In Standby Mode (Audio) Select [Audio] from the Main Menu (see “How to operate menu” on page 33) and then select This function is used to switch the output audio signal the item from the Sub Menu. from the <VARIABLE AUDIO OUT> terminal On/Off at standby mode. -
Page 43: Options
Options The input with a check mark will be able to be Select [Options] from the Main Menu (see “How searched when [Auto Source] is set to [On]. to operate menu” on page 33) and then select To remove the check mark, choose the desired the item from the Sub Menu. -
Page 44: High Altitude
Press ► to display the adjustment dialog box. Normal / Auto / ECO1 / ECO2 for PT-TW330EA / Press ◄► to set the time. PT-TX300EA. Normal / Auto / ECO for PT-TW240EA. The factory default is 0 hour. -
Page 45: Lan
The projector will acquire the IP Select [LAN] from the Main Menu (see “How to address automatically. operate menu” on page 33) and then select the item from the Sub Menu. User must set the [IP Address], [Subnet Mask], [Gateway] and PT-TW330 [DNS] manually. -
Page 46: Store
Store Save the network settings. Press ▲▼ to select [Store]. Press ► to display the setting dialog box. Press ▲▼ to switch [Yes]/[No]. Press ► to execute. Select [Yes] to start executing and the resetting message appears. The store procedure finishes when the message disappears. -
Page 47: Connect To Network
Connect to Network The projector has a network function, and the following operations are available from the computer using the web browser control. Setting and adjustment of the projector. Display of the projector status. Transmission of an E-mail message when there is a problem with the projector. This projector supports "Crestron RoomView"... -
Page 48: Computer Operation Via Network
Computer operation via network Connection can be made with wired LAN. However, confirm to your system administrator on network settings before changing any settings. Turn on the computer. Make the network setting according to your system administrator. Æ If the projector settings are the default settings ( page 45), the computer can be used with the following network settings. -
Page 49: Projector Information
Main Menu description (1) Projector Information Click this item and the [Projector Information] displays. (2) LAN Setting Click this item and the [LAN Setting] displays. (3) Projector Status and Control Click this item and the [Projector Status and Control] displays. (4) E-mail Setting Click this item and the [E-mail Setting] displays. -
Page 50: Security Setting
Projector Status and Control Sets the projector status and adjusts Image and Audio controls. (1) [Projector Status] Confirm Projector Status. Press [Refresh] button to refresh. Press [Power ON] or [Power OFF] button to operate power status. Set the time for the projector to shut down automatically when there is no signal input in [Power Saving]. -
Page 51: Crestron Roomview Control Tool
Crestron RoomView Control Tool "Crestron RoomView" is a system developed by Crestron Electronics, Inc. which collectively manage and control multiple system devices connected via the network, from a computer. For details of "Crestron RoomView", refer to the Crestron Electronics, Inc. website (Provided only in English). -
Page 52: About Indicator Status
intenance About indicator status About indicator status If an indicator turns on If a problem should occur inside the projector, the <TEMP> and/or <LAMP> indicators will inform you. Manage the indicated problems as follow. Attention Before you take a remedial measure, follow the procedure of switching the power off indicated in “Powering off the projector”. -
Page 53: Maintenance/Replacement
Maintenance/replacement Maintenance/replacement Before cleaning/replacing the unit When you perform maintenance or replacement of the parts, make sure to turn off the power and disconnect Æ the power plug from the wall outlet. ( pages 27, 29) Æ Be sure to observe the procedure “Powering off the projector” ( page 29) when performing power supply operation. - Page 54 Maintenance/replacement Install the air filters. Hold the air filters with the protrusion up towards the top panel as shown in the picture and insert them until you hear a "click" sound. Reset the [Filter Reminder]. Æ Turn on the power and perform [Cleaning up Reminder] in the [Options] menu. page 44) Attention Turn off the power before you clean the air filters.
-
Page 55: Replacing The Unit
It is recommended to ask an authorized engineer to replace the lamp unit. Contact your dealer. Consult your dealer to purchase a replacement lamp unit. (for PT-TW330EA / PT-TX300EA: ET-LAL341; for PT-TW240EA: ET-LAL331) CAUTION: ■ Do not replace the lamp unit when it is hot. (Wait at least 1 hour after use.) The inside of the cover can become very hot, take care to avoid burn injuries. -
Page 56: When To Replace The Lamp Unit
The estimated duration before replacement is 3 000 hours for PT-TW330EA / PT-TX300EA, 4 000 hours for PT-TW240EA. However, this may be shortened depending on individual lamp characteristics, usage conditions, and the installation environment. Therefore, it is strongly recommended that a replacement lamp unit be prepared. -
Page 57: Replacing The Lamp Unit
Maintenance/replacement Used for PT-TW240EA The used lamp time is calculated internally in the following formula as the used time in each setting of [Normal], [Auto] and [ECO] in [Lamp power mode]: Lamp runtime = (Lamp runtime of [Normal] × 51 + Lamp runtime of [Auto] × 24 + Lamp runtime of [ECO] × 34) ÷ 51 ... -
Page 58: Troubleshooting
Troubleshooting Troubleshooting Please check following points. For details, see the corresponding pages. Reference Problem Cause page The power cord may not be connected. — No electric supply is at the wall outlet. — Power does not turn The circuit breakers have tripped. —... - Page 59 1. First, follow the steps above to adjust resolution of the computer. 2. Press the appropriate keys listed below for your notebook manufacturer to send signal out from notebook to projector. Partial, scrolling Panasonic [Fn]+[F3] SAMSUNG [Fn]+[F4] or incorrectly Gateway [Fn]+[F4] Acer ...
- Page 60 Troubleshooting Reference Problem Cause page Dust Filter Reminder Message: This message displays when the projector reached the timer set in the [Filter Reminder (Hour)]. In this case, please clean the air filters or replace them. Lamp Warning Message: The lamp has reached its end of life, please replace it as soon as possible.
-
Page 61: Appendix
Appendix Appendix Serial terminal The serial connector which is on the connector panel of the projector conforms to the RS-232C interface specification, so that the projector can be controlled by a personal computer which is connected to this connector. Attention Set the [UART Mode] in the [Setting] menu to [RS-232] before controlling the projector via <SERIAL IN>... -
Page 62: Basic Format
Appendix Basic format Transmission from the computer begins with STX, then the command, parameter, and ETX are sent in this order. Add parameters according to the details of control. Colon (1 byte) Start 3 command Parameter (1 byte) characters (undefined length) (1 byte) (3 bytes) When sending commands without parameters, a colon (:) is not necessary. -
Page 63: Control Commands
Appendix Control commands When controlling the projector from a computer, the following commands are available: [Projector control command] Command Control contents Remarks Power [ON] Power [OFF] (Parameter) VID = Video INPUT selection RG1 = Computer 1 RG2 = Computer 2 HD1 = HDMI Turn off the projection and sound temporarily. -
Page 64: Other Terminals
Appendix Other terminals Pin assignments and signal names of <COMPUTER 1 IN/COMPUTER 2 IN> terminal Pin No. Signal names Outside view G/G SYNC/Y + 5 V DDC data HD/SYNC : Not assigned DDC clock : GND terminals Pin assignments and signal names of <MONITOR OUT> terminal Pin No. -
Page 65: Pjlink Protocol
NAME ? Projector name query The name set for [Projector name] in [LAN Settings] is returned. INF1 ? Manufacturer name query “Panasonic” is returned. Answer the model name with "TW330EA", "TW240EA" or INF2 ? Model name query "TX300EA". CLSS ? Class information query “1”... -
Page 66: List Of Compatible Signals
Appendix List of compatible signals The following table specifies the types of signals compatible with the projectors. Format : V = VIDEO, R = RGB, Y = YP , H = HDMI Scanning Plug and play * Display Dot clock frequency Mode resolution *... - Page 67 Note The number of display dots is 1 024 x 768 for the PT-TX300EA and 1 280 x 800 for the PT-TW330EA, PT-TW240EA. A signal with a different resolution will be projected after converting the resolution to match the projector display.
-
Page 68: Specifications
*2 : For details of video signals that can be projected using this projector, refer to “List of compatible signals”. Æ pages 66-67) *3 : The value of native aspect ratio (4:3 for PT-TX300EA; 16:10 for PT-TW330EA and PT-TW240EA). - ENGLISH... - Page 69 Specifications Model No. PT-TX300EA PT-TW330EA PT-TW240EA 2 sets, high-density D-Sub 15p (female) [RGB signal] 0.7 V [p-p] 75 Ω (When G-SYNC: 1.0 V [p-p] 75 Ω) COMPUTER 1 HD/SYNC TTL high impedance, automatic positive/negative polarity compatible IN / COMPUTER 2...
-
Page 70: Dimensions
<Unit : mm (inch)> 288.0 (11.3”) 70.8 (2.79”) *1: PT-TX300EA *2: PT-TW330EA, PT-TW240EA : Actual dimension may differ by product. Ceiling mount bracket safeguards Installation work of the ceiling mount bracket should only be carried by a qualified technician. -
Page 71: Index
Index Index Web Management ......48 About Your Projector.......16 Lamp Settings.........43 Accessories ........15 Lamp unit ........56 Adjusting the Projector's Height ..24 Language........40 Aspect Ratio ........38 LAN (Standby) ........41 Auto Power Off (Min) ......43 List of compatible signals ....66 Basic operations by using Maintenance/replacement ....53 the remote control .......31 Menu Location ........40... - Page 72 Note for the battery symbol (bottom two symbol examples): This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved. Panasonic Corporation Web Site : http://panasonic.net/avc/projector/ © Panasonic Corporation 2013 M0813GC1113 -ST...
