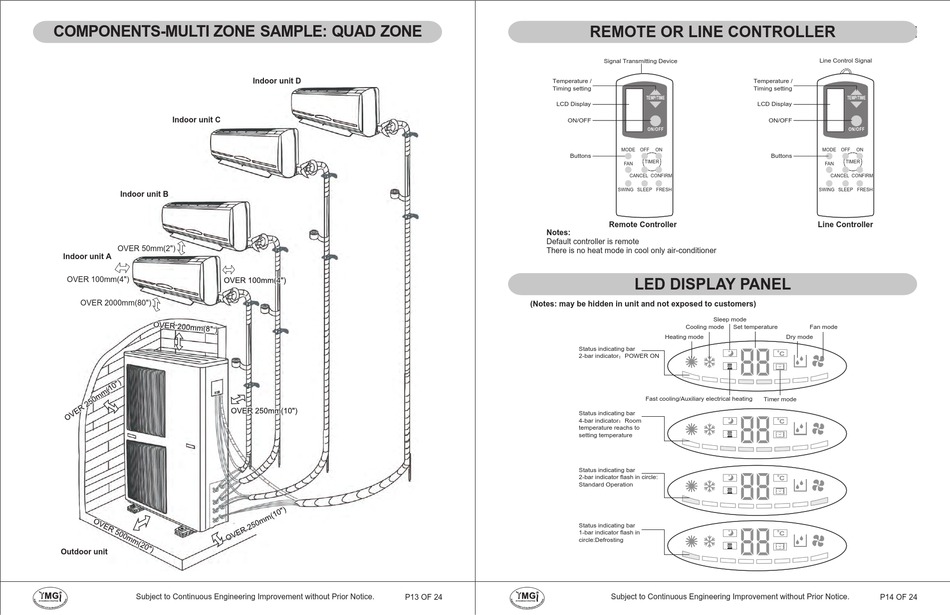

COMPONENTS-MULTI ZONE SAMPLE: QUAD ZONE

Indoor unit C
Indoor unit B
OVER 50mm(2 ) "
Indoor unit A
OVER 100mm(4 ) "
OVER 2000mm(80 ) "
Outdoor unit
Subject to Continuous Engineering Improvement without Prior Notice.
Indoor unit D
P13 OF 24

REMOTE OR LINE CONTROLLER

Blower 8 Edge-fb
4 12
Signal Transmitting Device
Temperature /
Timing setting
TEMP/TIME
LCD Display
ON/OFF
ON/OFF
ON
MODE OFF
Buttons
TIMER
FAN
CANCEL CONFIRM
SWING SLEEP FRESH
Remote Controller
Notes:
Default controller is remote
There is no heat mode in cool only air-conditioner
LED DISPLAY PANEL
(Notes: may be hidden in unit and not exposed to customers)
Cooling mode
Heating mode
Status indicating bar
2-bar indicator POWER ON
Fast cooling/Auxiliary electrical heating
Status indicating bar
4-bar indicator Room
temperature reachs to
setting temperature
Status indicating bar
2-bar indicator flash in circle:
Standard Operation
Status indicating bar
1-bar indicator flash in
circle:Defrosting
Subject to Continuous Engineering Improvement without Prior Notice.
16 Edge-bb
Cbox-cover
Line Control Signal
Temperature /
Timing setting
TEMP/TIME
LCD Display
ON/OFF
ON/OFF
ON
MODE OFF
Buttons
TIMER
FAN
CANCEL CONFIRM
SWING SLEEP FRESH
Line Controller
Sleep mode
Set temperature Fan mode
Dry mode
Timer mode
P14 OF 24
