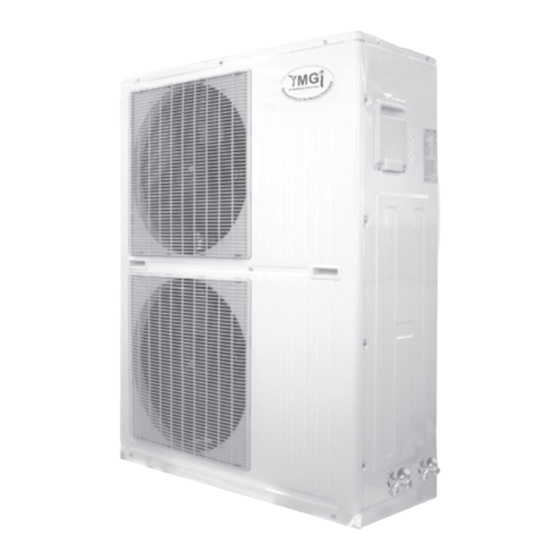

Literature Part No: Lit-WMMS-User Manual-0102-20130201
For WMMS Series of Product 09 to 60K Btu/h Single/Dual/Tri/Quad Zone (Cooling, Heat Pump W or W/O Ele. Heater)
Subject to Continuous Engineering Improvement without Prior Notice.
YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World !
USER'S MANUAL
AIR CONDITIONER AND HEAT PUMP
WALL MOUNT MINI SPLIT TYPE
Series M2
SINGLE, DUAL, TRIPLE, QUAD ZONES
(This Manual is Good for Mini Split Wall Mount Product Line of Different Brands Made by
YMGI Group-YMGI, YMGI Products, and Others Claimed by YMGI Group,
POB 1559, O'Fallon, MO, USA-Check with info@ymgigroup.com or sales@ymgigroup.com)
This product is designed and manufactured free from defects in material and workmanship under the normal use and
maintenance. Installation, operation, maintenance and service shall follow professional practices for regular cooling and
heating equipment, NEC, State, City or Local Codes and related manuals from us. Otherwise, damage to equipment or
property even injury to people may occur.
Installer: Currently licensed HVAC installer only, Read this manual before installation. Sign on the warranty registration card.
User: Keep this manual for future maintenance and service use.
Servicer: Use this manual for service reference.
LITERATURE Part No: LIT-WMMS-USER MANUAL-0102-20130201
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for YMGI M2 SERIES
Summary of Contents for YMGI M2 SERIES
- Page 1 YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! USER'S MANUAL AIR CONDITIONER AND HEAT PUMP WALL MOUNT MINI SPLIT TYPE Series M2 SINGLE, DUAL, TRIPLE, QUAD ZONES (This Manual is Good for Mini Split Wall Mount Product Line of Different Brands Made by YMGI Group-YMGI, YMGI Products, and Others Claimed by YMGI Group, POB 1559, O'Fallon, MO, USA-Check with info@ymgigroup.com or sales@ymgigroup.com)
-
Page 2: Table Of Contents
Always Keep Your External Unit In A Vertical Position During Handling. BRIEF INTRODUCTION TO MINI SPLIT WALL MOUNT SYSTEM MINI WALL MOUNT SYSTEMS-MODELS YMGI Group Shall NOT Take Any Responsibilities for Any Damage or Loss Due to Improper Installation or SYSTEM COMPONENTS-GENERAL Operation or Natural Disaster. -
Page 3: Limited Product Warranty Policies
YMGI keeps on improving products with various engineering changes without prior notice. Such improvements By signing above, I acknowledge the liability and responsibility for any false statement or not telling all the facts, and I authorize YMGI to check the details of the filled above, and make its decision on warranty. -
Page 4: Customer And Technician Must Read
5) Some contractors/ technicians may not feel comfortable about installing the equipment that you purchase for them to install, and they prefer to purchase and install the equipment. You can contact YMGI directly to check * Have the technician check against all the items in the checklist of the Limited Product Warranty Registration and see if there have been any contractors in your area who have installed our products or similar. - Page 5 * Performing a load calculation for the room(s) you would like to air condition. Cooling requirements will be contractor's full installation invoice, to YMGI Group, within 7-days after original installation, in order for YMGI to review and process your warranty registration.
- Page 6 We will be happy to assist you with any questions you may have concerning the 5) YMGI can arrange shipping for you, but not at YMGI's cost. If this option is chosen, a packing list and BOL will functions of your new unit.
-
Page 7: Important Notes
CUSTOMER AND TECHNICIAN MUST READ IMPORTANT NOTES * Your technician will then need to verify and confirm the problem(s) before YMGI can ship out the replacement part(s). SAFETY WARNINGS Inaccurate or incomplete troubleshooting or part replacement will delay the repair. YMGI technical support will only speak READ THESE SAFETY WARNINGS COMPLETELY PRIOR TO ANY USE. -
Page 8: Safety-Attentions
* Institutional * Commercial * Light commercial * Industrial * Hospital YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! P13 OF 34 P14 OF 34... -
Page 9: Mini Wall Mount Systems-Models
5) System performance will be degraded, if systems are improperly selected, operated, installed, maintained, or serviced (which are not selected. conducted by manufacturer). YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! P15 OF 34... -
Page 10: System Components & Installation Clearance: Single Zone
OVER 100mm(4 ) " OVER 100mm(4 ) " Outdoor unit Outdoor unit YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! P17 OF 34 P18 OF 34... -
Page 11: System Components & Installation Clearance: Triple Zone
Indoor unit B Indoor unit C Indoor unit C Indoor unit D YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! P19 OF 34 P20 OF 34... -
Page 12: Indoor Unit-Major Components
There is no heat mode in cool only air-conditioner received control signal. YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! P21 OF 34... -
Page 13: Functions-Remote Or Line Control
If star/moon sign is ON, MODE turns into SLEEP mode (see related function change separately); if pressed again, star/moon sign goes off, MODE turns into the regular. YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! -
Page 14: Operation Of The Unit
"CONFIRM" Once TIMER "CONFIRM" button is pressed, set-up of TIMER "ON" or TIMER "OFF" is actuated. YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! -
Page 15: Service And Maintenance
4. Insert them back to their original positions, Close securely. Close plastic front panel. plastic front panel. YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! P27 OF 34... -
Page 16: Doubting About Unit Failure
During heating, at defrosting, melt ice builds up connected well. condensate. YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! P29 OF 34 P30 OF 34... -
Page 17: Diagnosis Code & Trouble-Shooting Guideline
WARRANTY AND TECH. SUPPORT DIAGONSIS CODE, POSSIBLE CLAUSES, AND SUGGESTED ACTIONS TO YMGI warrants to the purchaser/owner(s) that YMGI products be free from defects in material and workmanship under the normal use and maintenance, with the standard Limited Product Warranty USER AND TECHNICIAN Policies that comes with the unit or sales package. -
Page 18: User Notes And Service Log
Put down whatever questions you have or problems you have seen as a unit history: Date Service/Maintenance Conducted Person/Phone YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! YMGI, Engineered Comfort Products for A Sustainable and Efficient Green World ! P33 OF 34 P34 OF 34...
