1. Introduction

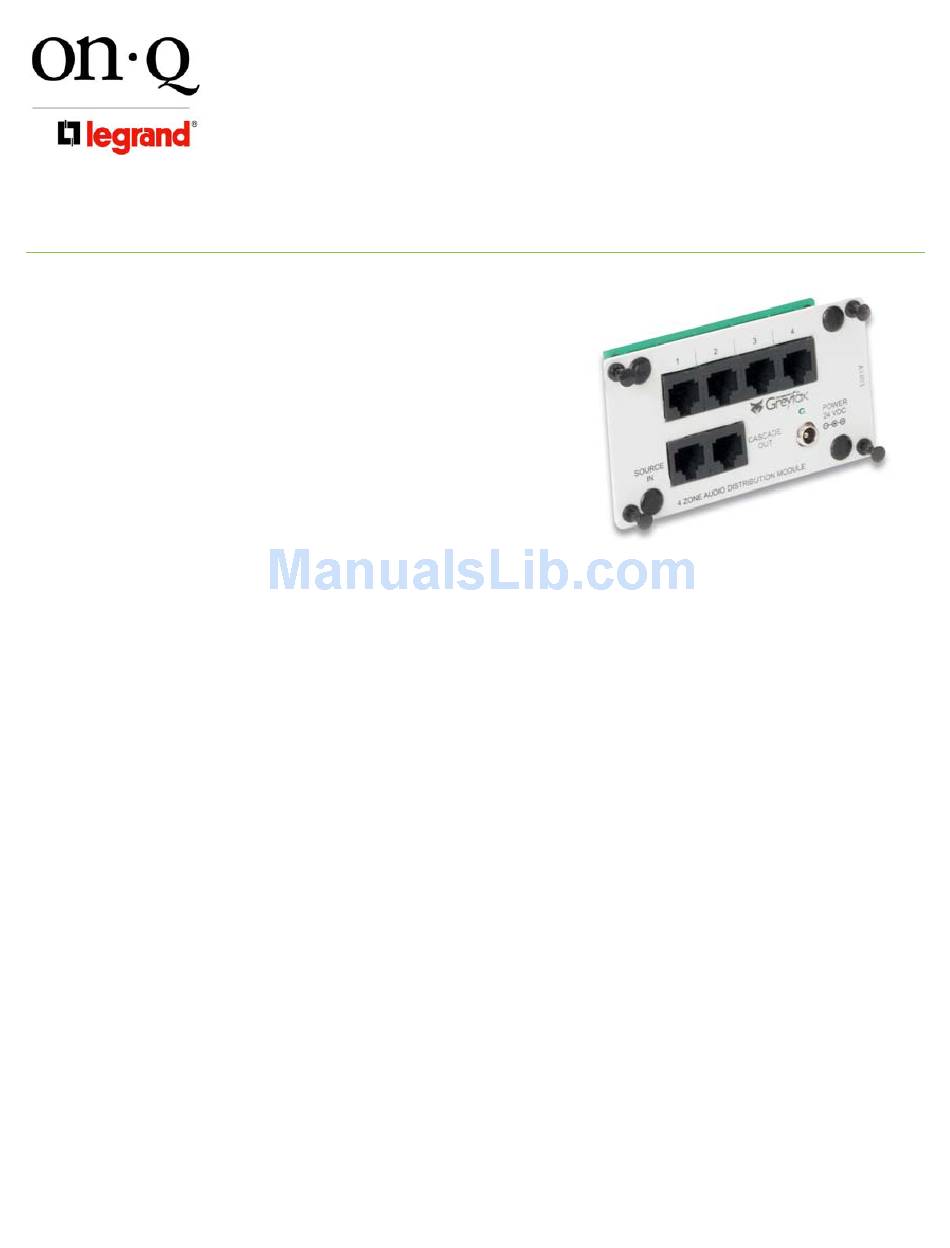

The On-Q /Legrand Single Source 4 Zone Audio Distribution
Hub, PN F7396 (see Figure 1), is an integral part of the
Category 5 Audio System. It is a component which, when
combined with other essential components and your source
equipment receiver, CD player, etc, creates a versatile whole-
house audio system that will fill your rooms with high-quality
sound for years to come. Category 5 technology is a new,
innovative method of providing high quality audio to remote
locations with a single 8-conductor cable such as Category 5.
This technology provides many advantages over other
conventional methods of audio distribution such as simple,
single Category 5 wiring scheme, and infrared control of
system components.
2. Description
All components of the Category 5 Audio System are wired centrally from the Category 5 Audio Distribution Hub
located within the structured wiring enclosure. In addition to providing a central point of connection, the Hub
distributes the necessary voltage to power the system. The Single Source Input and Volume Controls connect
directly to the module utilizing RJ-45 connections. The system can support multiple modules through "daisy
chaining" the Audio Distribution Hubs.
NOTE: The 24 volt, 2.5 amp Power Supply, PN F7723, is not included and must be purchased separately.
3. Installation
Installation of the On-Q/Legrand Audio Distribution Hub and related components, is best accomplished at
multiple times during new construction, at "Rough-in" before the drywall is installed, and at "Trim-out" after the
drywall is installed and painted.
IMPORTANT: Read the manuals that are included with all associated Category 5 Audio products before
installation of any single component! If you are unsure of any of the following installation procedures
contact On-Q/Legrand Technical Support @ 1-800-321-2343 option 1 or contact an On-Q/Legrand
installer.
NOTE: The Category 5 Audio Distribution Hub provides power to all of the components of the Category 5
Audio System.
NOTE: To provide ultimate flexibility for future products, run two Category 5 cables from the Single
Source Input to the Single Source 4 Zone Distribution Hub. Also, run a 16/2 or 16/4 speaker cable, along
with the Category 5 cable, from the Single Source 4 Zone Distribution Hub to each volume control
location.
©Copyright 2005 by On-Q/Legrand All Rights
INSTRUCTION/INSTALLATION SHEET
SINGLE SOURCE 4 ZONE AUDIO
DISTRIBUTION HUB
.
Reserved
IS-0320 REV. O
Figure 1
