On-Q/Legrand evoQ 1000 Instruction/Installation Sheet

6.5" in-ceiling and in-wall speakers

Advertisement

301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com

1. Introduction

On-Q/Legrand offers evōQ™ 1000 6.5" In-Ceiling (P/N MS1650)
and In-Wall (P/N MS1651) speakers which are optimized for
audio distribution (central sound). They are 2-way speakers that
feature Poly woofers and Mylar tweeters (see Figure 1). These
speakers come with dual templates with center markings and
paint rings.
Disclaimer: Make sure you are in compliance with local
building codes before installing these speakers. On-
Q/Legrand evōQ™ 1000 Speakers are suitable for moisture
rich environments such as bathrooms, saunas and outdoor
applications (not directly exposed to the weather).

2. Description

The On-Q/Legrand evōQ™ 1000 speakers are made of a tough semi-flexible plastic frames and feature a
perforated metal grill. All evóQ speakers, except sub woofers, are paint-able. They also come with painting
shields to protect the drivers while painting. These speakers are suitable for moisture rich environments.
They also feature flip out tabs for easy installation and removal.

3. Installation

Installation of the evōQ™ 1000 speakers is best accomplished at multiple times during new construction, at
"Rough-in" before the drywall is installed, and at "Trim-out" after the drywall is installed and painted.
A. "Rough-in" steps:
NOTE: It is recommended that a minimum of 16 gauge, 2 conductor wire be
used for most applications from the amplifier or volume control to the
speaker. Different gauges can, and should, be used based upon the
distance of the intended run or quality of installation (see Figure 2).
NOTE: All On-Q/Legrand lyriQ™ Audio components accommodate wire
gauges from 18 to 14.
1. Run x/2 conductor (x=gauge preference) stranded speaker wire from the
distribution/volume control to the speaker location (pre-wiring).
2. When pre-wiring, leave 4 to 6 feet of wire at the speaker's intended
location. Use a strip of cardboard stapled to the joints/studs with a
hole through it as a wire place holder for the drywall installers (see
Figure 3).
3. Strip off 3 inches or so of the speaker cable jacket to expose the
positive and negative insulated wires.Strip 3/8-1/2 inch of insulation
off of these conductors.
©Copyright 2006 by On-Q/Legrand All Rights Reserved.
INSTRUCTION / INSTALLATION SHEET
evōQ™ 1000 In-Ceiling and In-Wall
Speakers
IS-0294 Rev. B

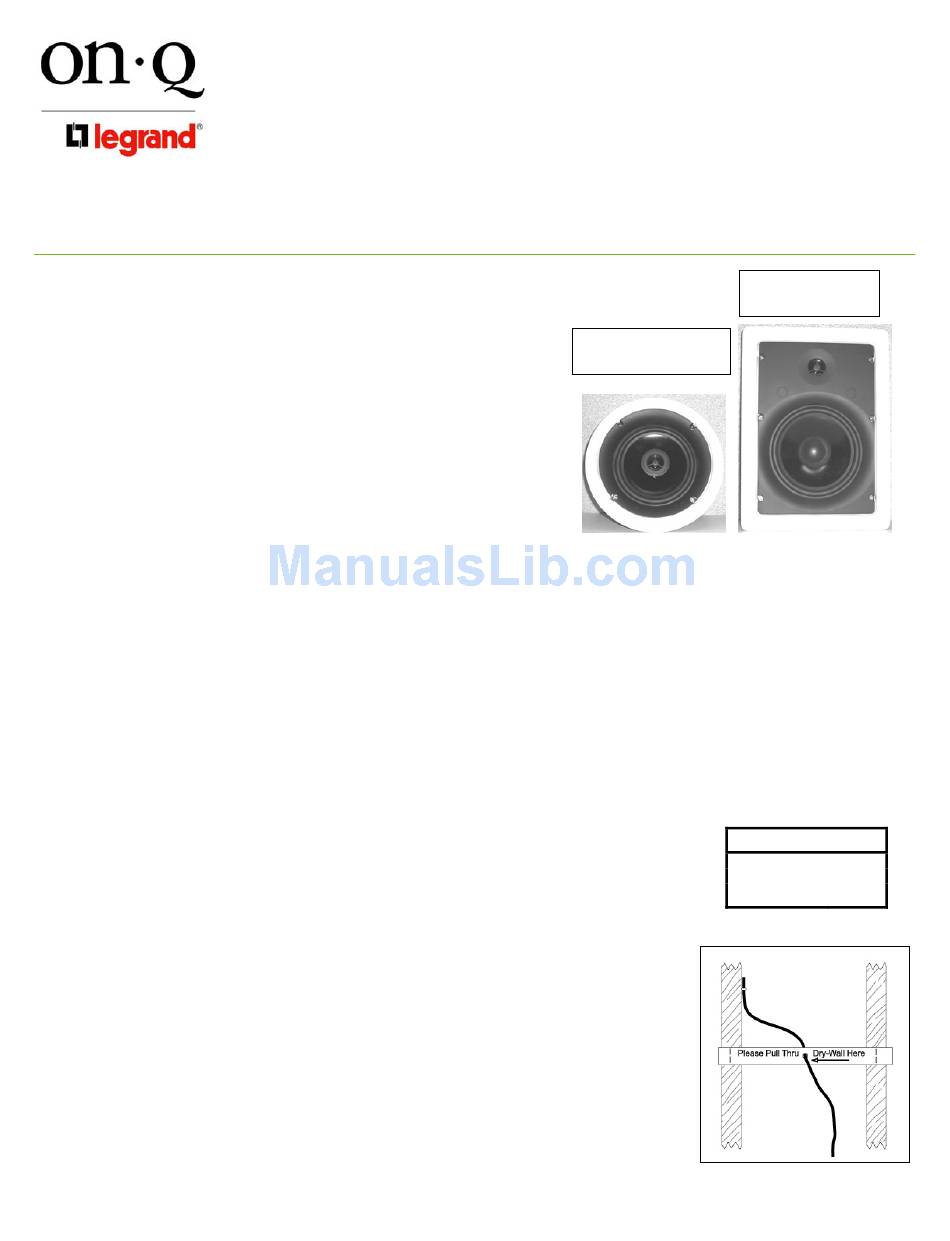

In-Wall Style
(shown w/o grill)
In-Ceiling Style
(shown w/o grill)
Figure 1
Speaker Wire
Gauge Selection Chart
Distance
<10 Feet
10-50 Feet
>50 Feet
Figure 3
Gauge
18
16
14
Figure 2
Page 1 of 3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the evoQ 1000 and is the answer not in the manual?

Questions and answers

Summary of Contents for On-Q/Legrand evoQ 1000

  • Page 1 Figure 1 2. Description The On-Q/Legrand evōQ™ 1000 speakers are made of a tough semi-flexible plastic frames and feature a perforated metal grill. All evóQ speakers, except sub woofers, are paint-able. They also come with painting shields to protect the drivers while painting. These speakers are suitable for moisture rich environments.
  • Page 2 4. It is recommended to place insulation behind the speaker to provide some damping for the woofer driver. This will yield the best possible sound. On-Q recommends using poly- encapsulated insulation such as Johns Manville Comfort Therm®. If a defined, consistent sound is desired from both speakers in a space, blocking can be installed to yield the ideal cubic footage for each driver.
  • Page 3 6.5" In-Wall Efficiency 90dB 90dB Power (RMS/Peak) 50W/100W 50W/100W Frequency 60-20K 60-20K Response Woofer Type Poly Poly Tweeter Type Mylar Mylar Drywall Hole Size 7.75” dia. 7.5” x 10.75” ©Copyright 2006 by On-Q/Legrand All Rights Reserved. Page 3 of 3...
