On-Q/Legrand DA1002 Instruction/Installation Sheet

301 Fulling Mill Road, Suite G
Middletown, PA 17057
Phone (800) 321-2343 / Fax (717) 702-2546
www.onqlegrand.com
1.

INTRODUCTION

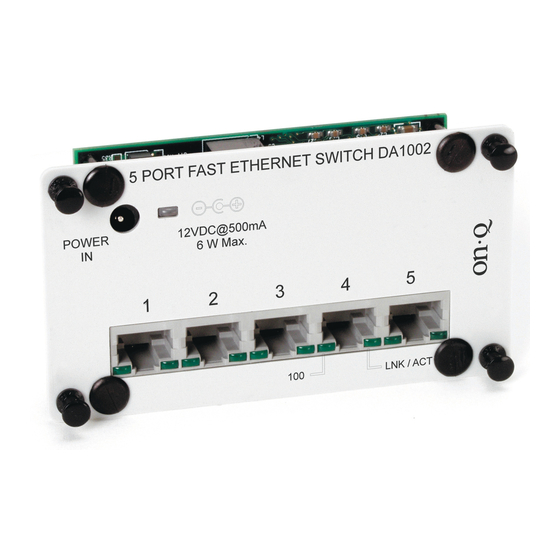

The On-Q/Legrand 5-Port Fast Ethernet Switch (P/N DA1002)
supports up to five computer connections in an Ethernet local
area network at a throughput of up to 200 Mbps, and acts as a
high-speed Cat 5e termination point for digital data services (see
Figure 1).
2.

DESCRIPTION

The On-Q/Legrand 5 Port Fast Ethernet Switch improves
computer performance by providing dedicated bandwidth to
every user, and offers the following benefits:
• Includes single bay bracket (P/N 364890-01) for mounting
in On-Q style enclosure (see Figure 2)
• Automatically adjusts each port to the highest speed
available; No configuration/service interruptions when
migrating from 10Mbps to 100Mbps
NOTE: The LED on the left below each RJ45 jack will light
to indicate 100Mbps operation. The LED on the right
below each RJ45 indicates a valid Ethernet link and/or
data activity (see Figure 1).
• Multiple switches can be cascaded together using a
standard Cat 5 patch cable
3.

POWER REQUIREMENTS

The 5-Port Fast Ethernet Switch's power requirements are:
• Voltage: +12 VDC
• Current:
300 mA
• Power:
4 W Max
• Polarity:
Tip (+) Barrel (-)
Note: On-Q/Legrand offers several options for power, which range from a dedicated power cube (F7760)
designed to accommodate one module to power solutions designed to accommodate multiple module
installations.
Please refer to the On-Q/Legrand Catalog or the On-Q/Legrand website (http://www.onqlegrand.com)
for more information.
4.

INSTALLATION

A. MOUNT THE SWITCH ONTO THE ENCLOSURE.
1. Pull out the plungers which are located at each corner of the 5-Port Fast Ethernet Switch
2. Insert the module onto the included single bay bracket and depress each of the four plungers to secure
the module to the bracket
3. To mount the bracket with module into the enclosure, insert the tabs on the left side of the bracket into
the slots in the enclosure and push the bracket pushpin into the appropriate hole in the enclosure to
secure the bracket (with module) to the enclosure
©Copyright 2007 by On-Q/Legrand All Rights Reserved.
INSTRUCTION / INSTALLATION SHEET
5-Port Fast Ethernet Switch
IS-0394 Rev. O

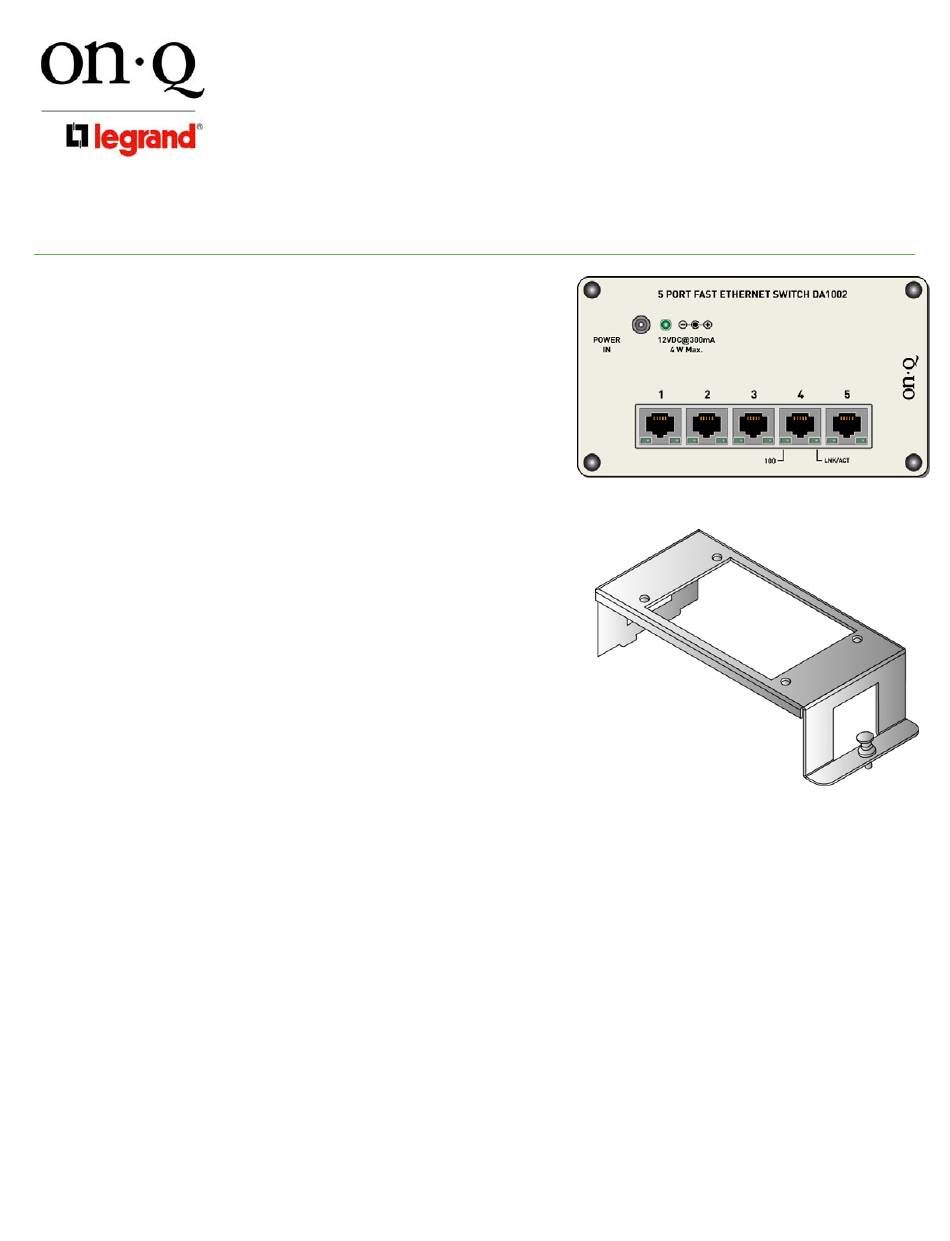

Figure 1
Figure 2
Page 1 of 2
