GE MONOGRAM ZIC360NR Dimensions And Installation Information page 5

Advance Planning for Built-In Custom Bottom-Freezer Refrigerators
Use this page to determine door
swing interaction with adjacent
cabinets or countertops.
Frameless Cabinets: The case trim
overlaps cabinets at the top and sides.
Therefore, frameless cabinets may require
filler strips to prevent interference with
cabinet door swing. The opening must
allow for filler strips.

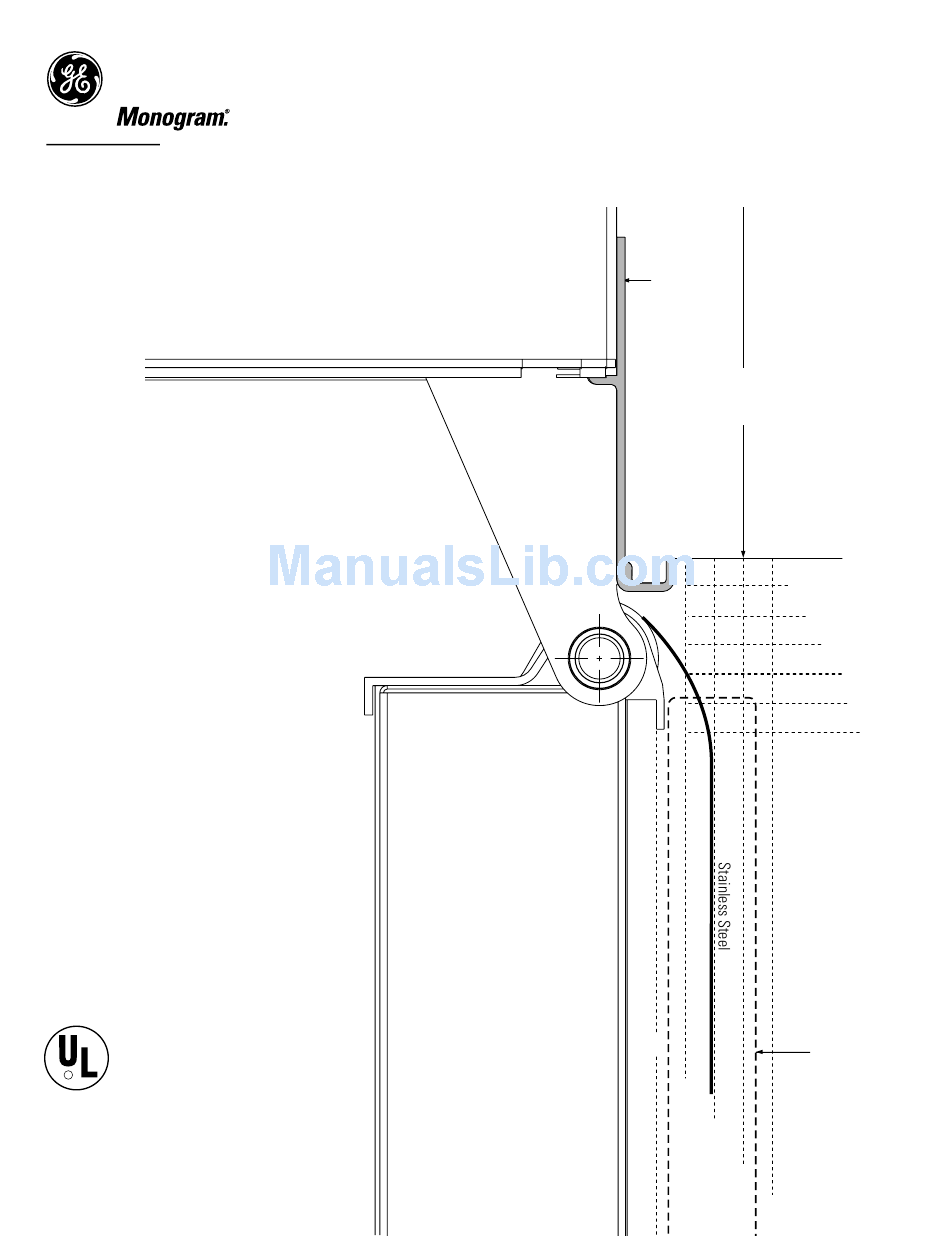

Top View
90° Door Swing
(Optional setting)
Scale 1:1
Listed by
Underwriters
Laboratories
R
For answers to your Monogram,
GE appliance questions, visit our website at
GEAppliances.com or call
GE Answer Center service, 800.626.2000.
®
Specification Created 5/04
110100
ZIC360NM – GE Monogram 36" Built-In Bottom Freezer Refrigerator
with Automatic Icemaker
Refrigerator
GE Profile or
® ™
Case Trim
Door
1/4"
23-7/8"
From Rear of
Refrigerator
1/4"
1/2"
3/4"
1"
1-1/4"
3/4" Overlay
Panel
(Nominal Size)
1/2"
3/4"
1"
1-1/4"
1-1/2"
